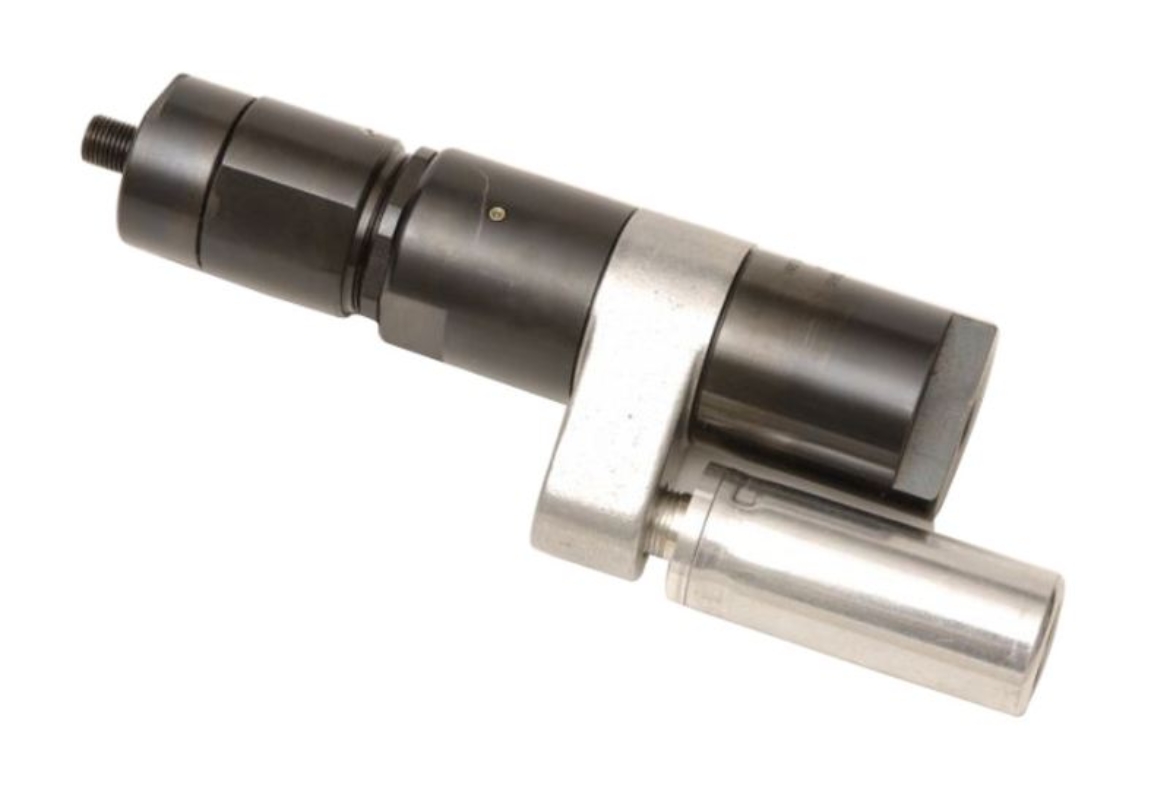

AA 7813-B
Inline Multi-Vane Air Motor, 1/2"-20 Thd Spindle, 650 RPM, 0.85 HP, 41.2 NM, Non-reversible
- Air Consumption at Max HP (scfm): 41.7
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Arbor/Collet: 1/2"-20 Thread
- Drive Size (in): 1/2
- Drive Type: Threaded
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Reduction: Double
- Gear Train: Planetary
- Max Free Speed (rpm): 650
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 30
- Max Torque (in-lb): 365
- Max Torque (nm): 41.2
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Foot Mount Optional
- Power Source: Air Powered
- Product Weight (lb): 5.17
- Rated Power (hp): 0.85
- Rated Power (kW): 0.63
- Reversible: Non-reversible
- Sound Level dB(A): 78
- Speed at Max Power (rpm): 320
- Torque Output @ Max HP (ft-lb): 14
- Torque Output @ Max HP (nm): 19.1
- Warranty: 1-year
