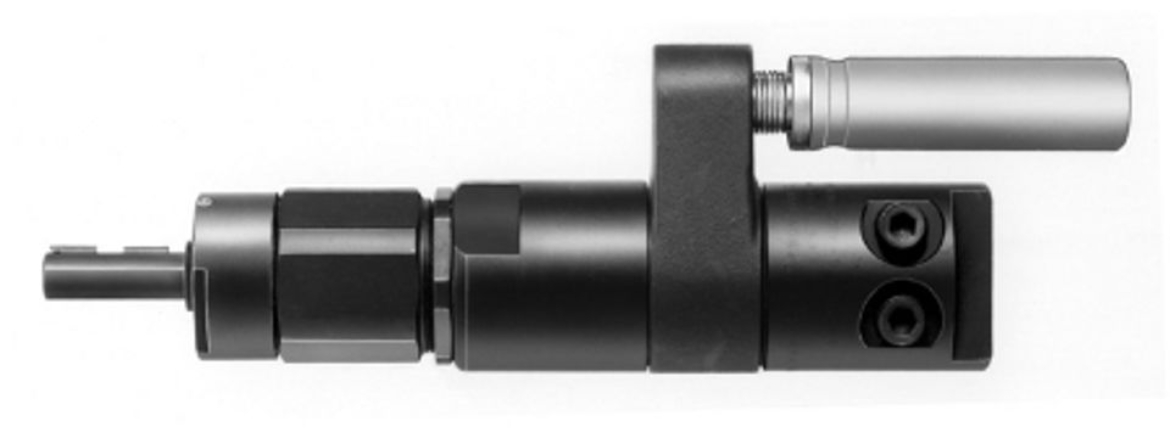

AA 7811-1B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 250 RPM, 0.7 HP, 74 NM, Reversible
- Air Consumption at Max HP (scfm): 37.3
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Size (in): 1/2
- Drive Type: Round Keyed
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Reduction: Double
- Gear Train: Planetary
- Max Free Speed (rpm): 250
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 55
- Max Torque (in-lb): 655
- Max Torque (nm): 74
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 4
- Power Source: Air Powered
- Product Weight (lb): 5.67
- Rated Power (hp): 0.7
- Rated Power (kW): 0.52
- Reversible: Reversible
- Sound Level dB(A): 85
- Speed at Max Power (rpm): 130
- Torque Output @ Max HP (ft-lb): 29
- Torque Output @ Max HP (nm): 38.7
- Warranty: 1-year
