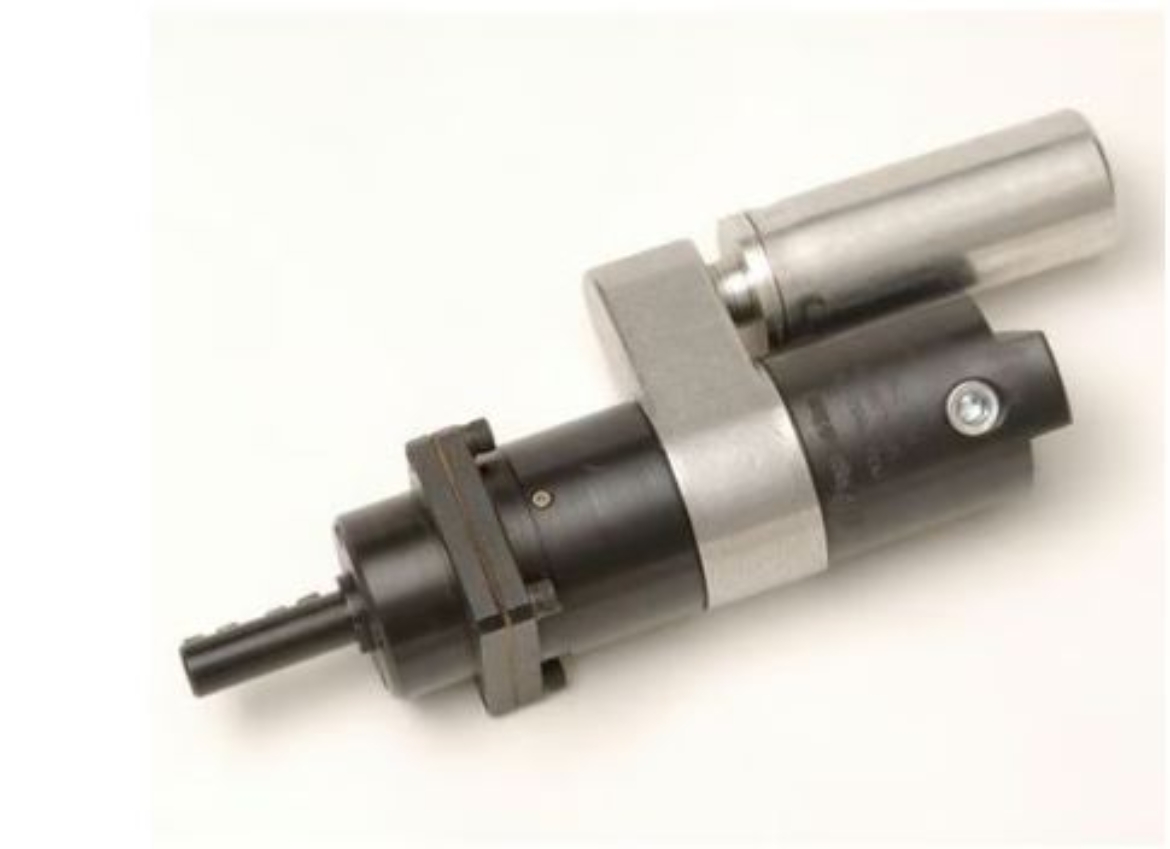

AA 8231-4B
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 2600 RPM, 0.5 HP, 4.7 NM, Reversible
- Air Consumption at Max HP (scfm): 41
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Size (in): 3/8
- Drive Type: Round Keyed
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Ratio: 6.86:1
- Gear Reduction: Single
- Gear Train: Planetary
- Max Free Speed (rpm): 2600
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 3.5
- Max Torque (in-lb): 42
- Max Torque (nm): 4.7
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Foot Mount Optional
- Power Source: Air Powered
- Product Weight (lb): 2.45
- Rated Power (hp): 0.5
- Rated Power (kW): 0.37
- Reversible: Reversible
- Sound Level dB(A): 80
- Speed at Max Power (rpm): 1300
- Torque Output @ Max HP (ft-lb): 2.0
- Torque Output @ Max HP (nm): 2.7
- Warranty: 1-year
