AA 8228-8B

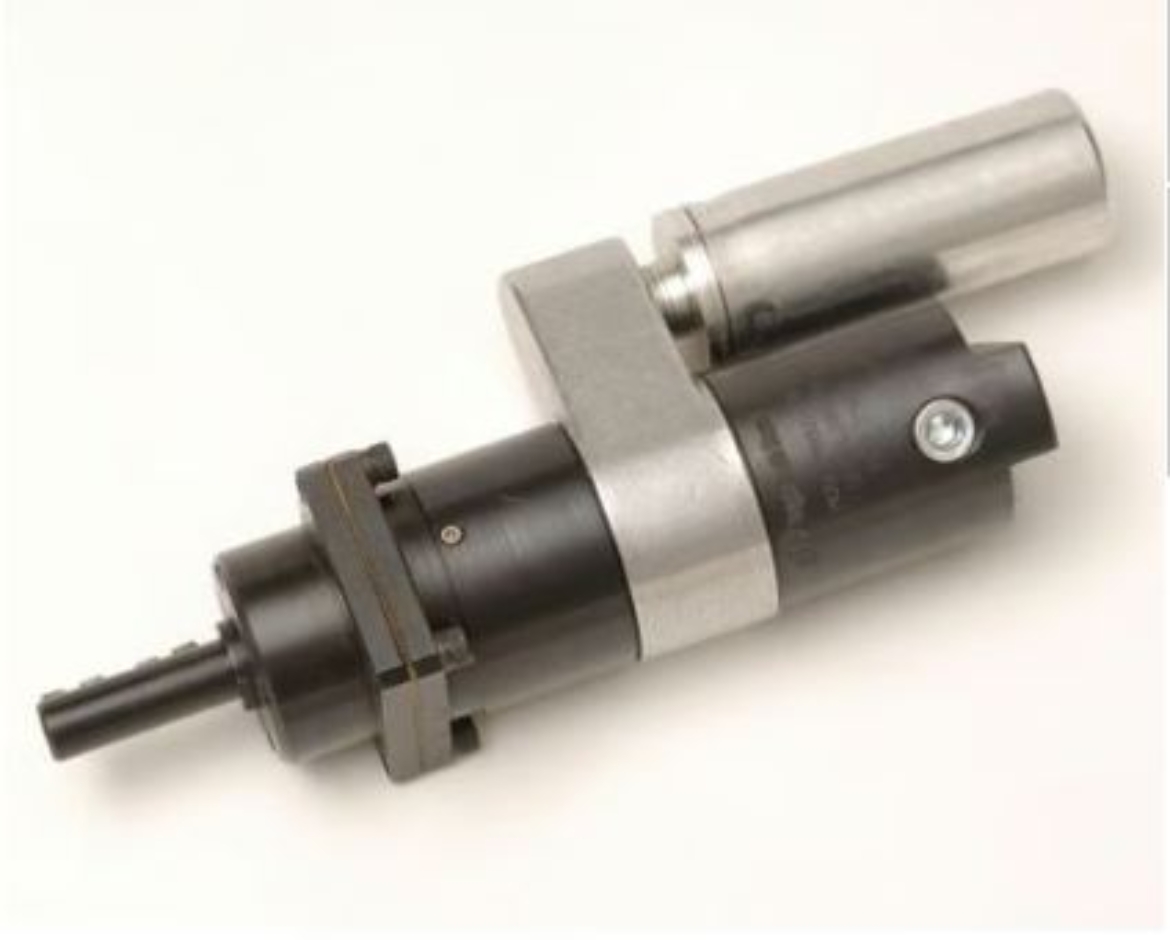

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 350 RPM, 0.5 HP, 33.9 NM, Reversible
- Air Consumption at Max HP (scfm): 30
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Size (in): 1/2
- Drive Type: Round Keyed
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Ratio: 50.9:1
- Gear Reduction: Double
- Gear Train: Planetary
- Max Free Speed (rpm): 350
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 25
- Max Torque (in-lb): 300
- Max Torque (nm): 33.9
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 4
- Power Source: Air Powered
- Product Weight (lb): 4.25
- Rated Power (hp): 0.5
- Rated Power (kW): 0.37
- Reversible: Reversible
- Sound Level dB(A): 80
- Speed at Max Power (rpm): 185
- Torque Output @ Max HP (ft-lb): 14
- Torque Output @ Max HP (nm): 19
- Warranty: 1-year
