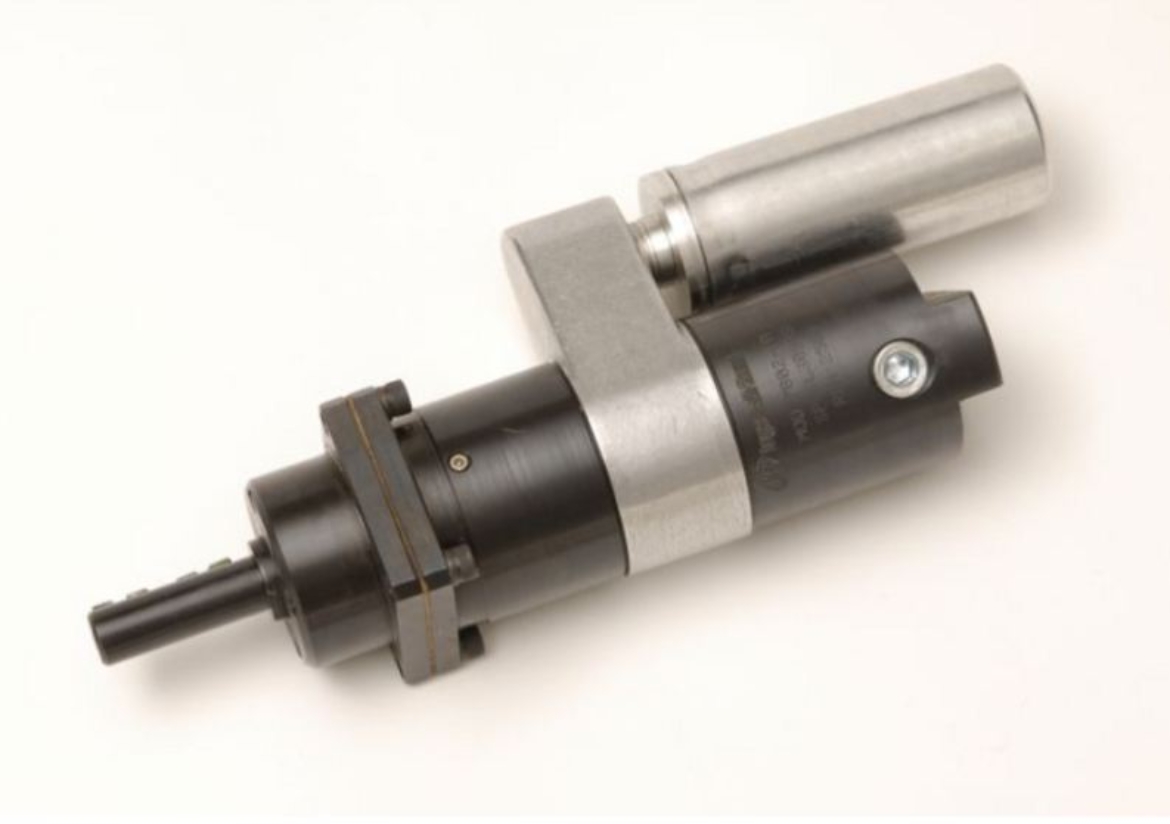

AA 8230-7A
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 800 RPM, 0.6 HP, 20 NM, Non-reversible
- Air Consumption at Max HP (scfm): 41
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Size (in): 3/8
- Drive Type: Round Keyed
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Ratio: 23.4:1
- Gear Reduction: Double
- Gear Train: Planetary
- Max Free Speed (rpm): 800
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 15
- Max Torque (in-lb): 177
- Max Torque (nm): 20
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Foot Mount Optional
- Power Source: Air Powered
- Product Weight (lb): 2.98
- Rated Power (hp): 0.6
- Rated Power (kW): 0.45
- Reversible: Non-reversible
- Sound Level dB(A): 80
- Speed at Max Power (rpm): 390
- Torque Output @ Max HP (ft-lb): 8.0
- Torque Output @ Max HP (nm): 10.8
- Warranty: 1-year
