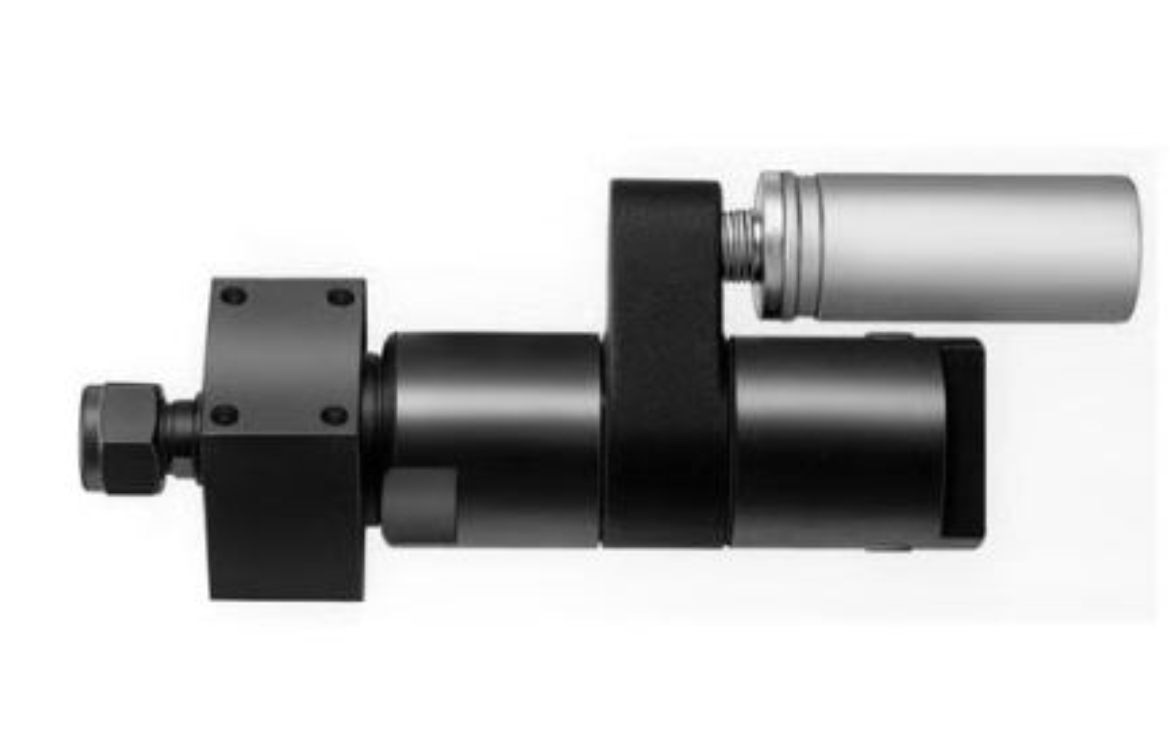

AA 7801-2B
Milling Air Motor, 3/8" Collet, 4600 RPM, 0.85 HP, 5.5 NM, Non-reversible
- Air Consumption at Max HP (scfm): 41.7
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Size (in): 3/8
- Drive Type: Collet
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Reduction: Single
- Gear Train: Planetary
- Max Free Speed (rpm): 4600
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 4.1
- Max Torque (in-lb): 49
- Max Torque (nm): 5.5
- Motor: Rotary Vane
- Motor: Milling
- Mounting Type: Foot Mount Optional
- Power Source: Air Powered
- Product Weight (lb): 4.89
- Rated Power (hp): 0.85
- Rated Power (kW): 0.63
- Reversible: Non-reversible
- Sound Level dB(A): 78
- Speed at Max Power (rpm): 2400
- Torque Output @ Max HP (ft-lb): 1.8
- Torque Output @ Max HP (nm): 2.5
- Warranty: 1-year
