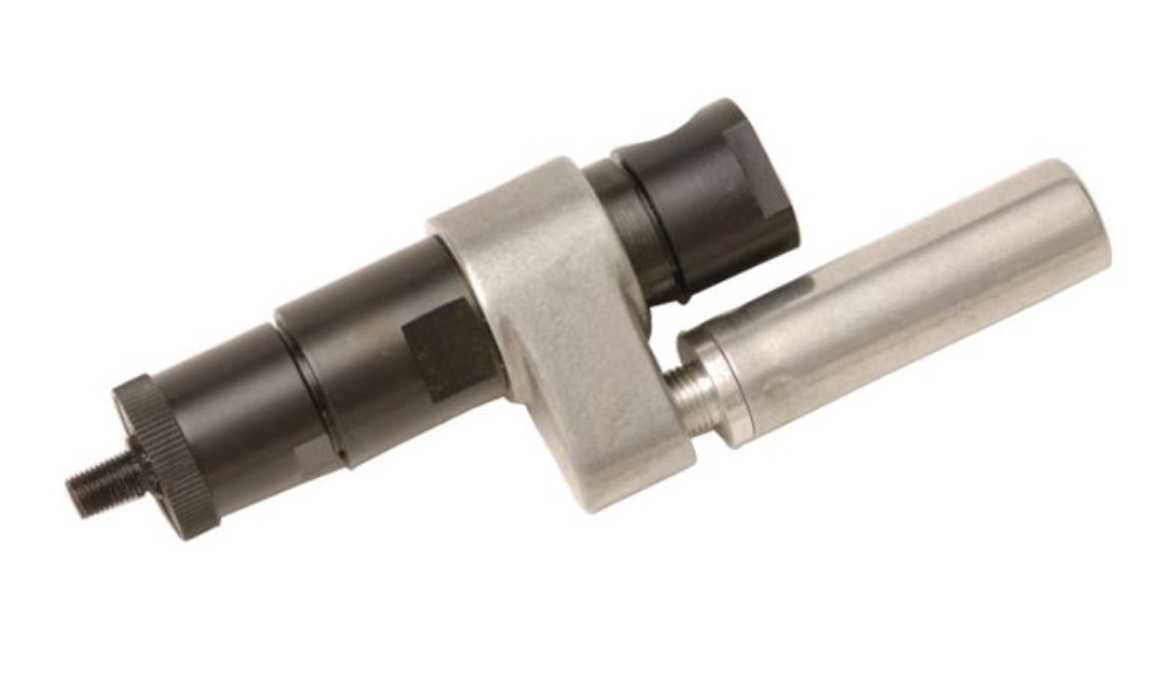

AA 7534-B
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 900 RPM, 0.25 HP, 6.7 NM, Non-reversible
- Air Consumption at Max HP (scfm): 18.1
- Air Inlet: 1/8" NPT
- Air Pressure (psi): 90
- Drive Size (in): 3/8
- Drive Type: Round Keyed
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Ratio: 23.3:1
- Gear Reduction: Double
- Gear Train: Planetary
- Max Free Speed (rpm): 900
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 4.9
- Max Torque (in-lb): 59
- Max Torque (nm): 6.7
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Foot Mount Optional
- Power Source: Air Powered
- Product Weight (lb): 1.82
- Rated Power (hp): 0.25
- Rated Power (kW): 0.19
- Reversible: Non-reversible
- Sound Level dB(A): 75
- Speed at Max Power (rpm): 550
- Torque Output @ Max HP (ft-lb): 2.4
- Torque Output @ Max HP (nm): 3.2
- Warranty: 1-year
