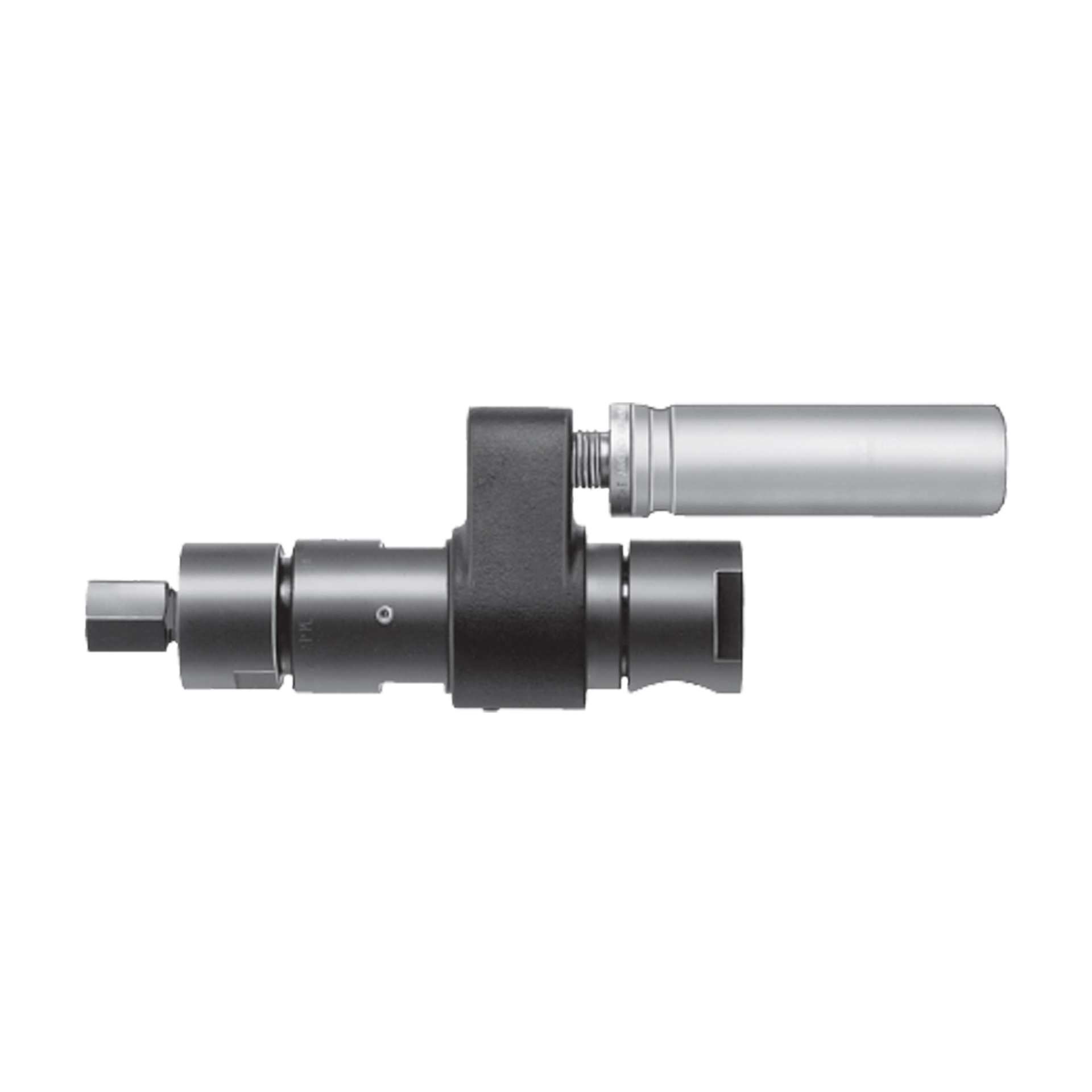

IR 8232-7
Milling Air Motor, 1/4" Collet, 800 RPM, 0.6 HP, 20 NM, Non-reversible
Air Consumption at Max HP (scfm): 41
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/4
Drive Type: Collet
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Ratio: 23.4:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 800
Max Pressure (bar): 6.2
Max Torque (ft-lb): 15
Max Torque (in-lb): 177
Max Torque (nm): 20
Motor: Rotary Vane
Motor: Milling
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 3.62
Rated Power (hp): 0.6
Rated Power (kW): 0.45
Reversible: Non-reversible
Sound Level dB(A): 80
Speed at Max Power (rpm): 390
Torque Output @ Max HP (ft-lb): 8.0
Torque Output @ Max HP (nm): 10.8
Warranty: 1-year
