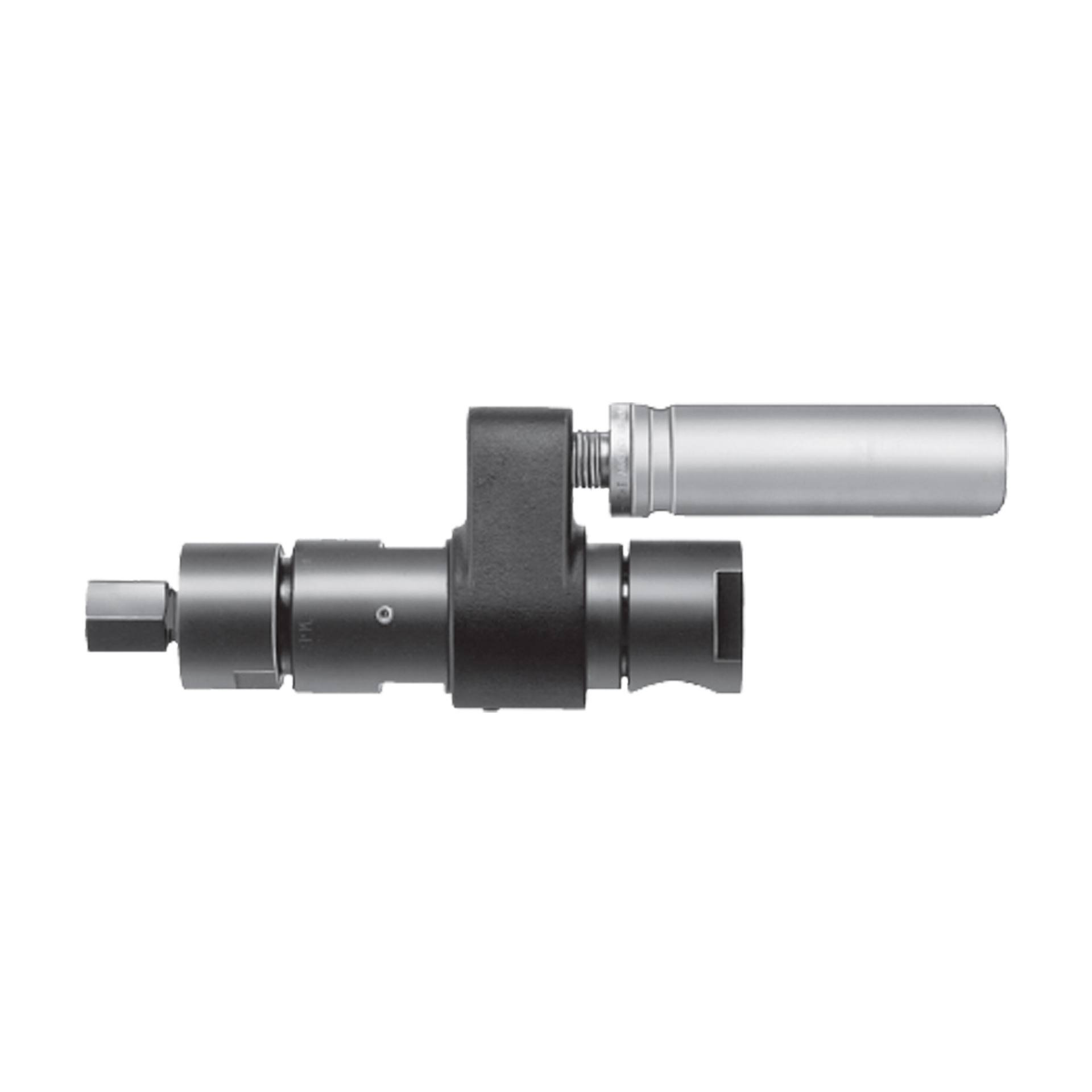

Power Motor

IR 7536-2-B

Milling Air Motor, 1/4" Collet, 4500 RPM, 0.25 HP, 1.3 NM, Non-reversible

• Air Consumption at Max HP (scfm): 18.1
• Air Inlet: 1/8" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1/4
• Drive Type: Collet

• Exhaust Location: Exterior Muffler
• Finish: Black Oxide
• Gear Ratio: 4.83:1
• Gear Reduction: Single
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 4500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1.0
• Max Torque (in-lb): 12
• Max Torque (nm): 1.3
• Motor: Rotary Vane
• Motor: Milling
• Mounting Type: Foot Mount Optional

• Power Source: Air Powered

• Product Weight (lb): 0.8
• Rated Power (hp): 0.25
• Rated Power (kW): 0.19
• Reversible: Non-reversible

• Sound Level dB(A): 75
• Speed at Max Power (rpm): 2700

• Torque Output @ Max HP (ft-lb): 0.4
• Torque Output @ Max HP (nm): 0.6
• Warranty: 1-year

• Parts: 31812-1
• Parts: 31812-5

• Parts: 31812-6
• Parts: 31812-7
• Parts: 31812-8
• Parts: 41563
