GG 24G487
PLATE, BASE, 5 SECTION, MSP NPSF

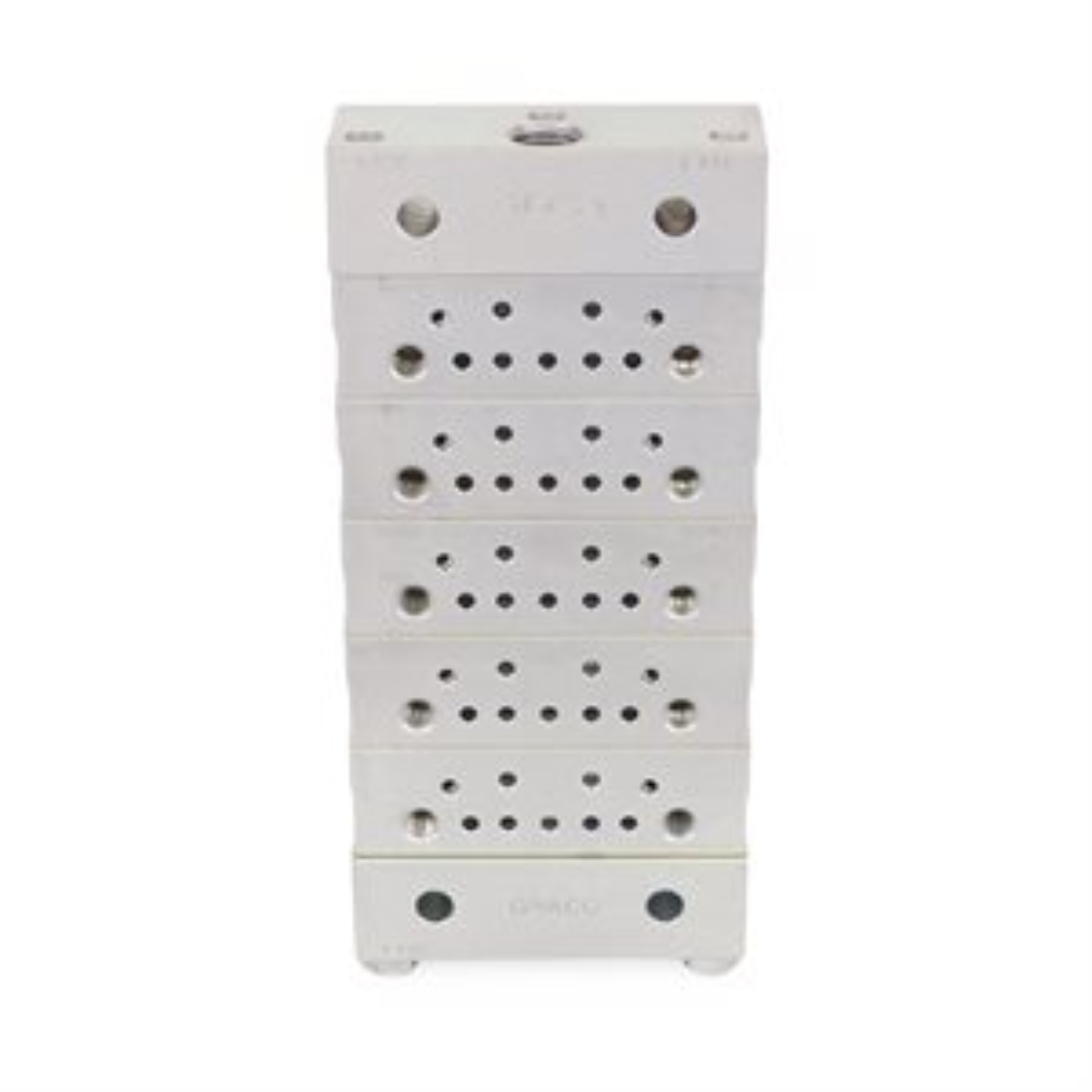

Graco 24G487 Trabon® MSP Divider Valve - 5 Section Base Plate Assemblies - NPSF
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve–and is still the best!
Application: For use with mobile, industrial, food and beverage, wind, and many more applications.
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: MSP
- Inlet Thread Gender: Female
- Inlet Thread Type: NPSF
- Maximum Operating Temperature (°C): 176
- Maximum Operating Temperature (°F): 350
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Gender: Female
- Outlet Thread Type: NPSF
