IR 117

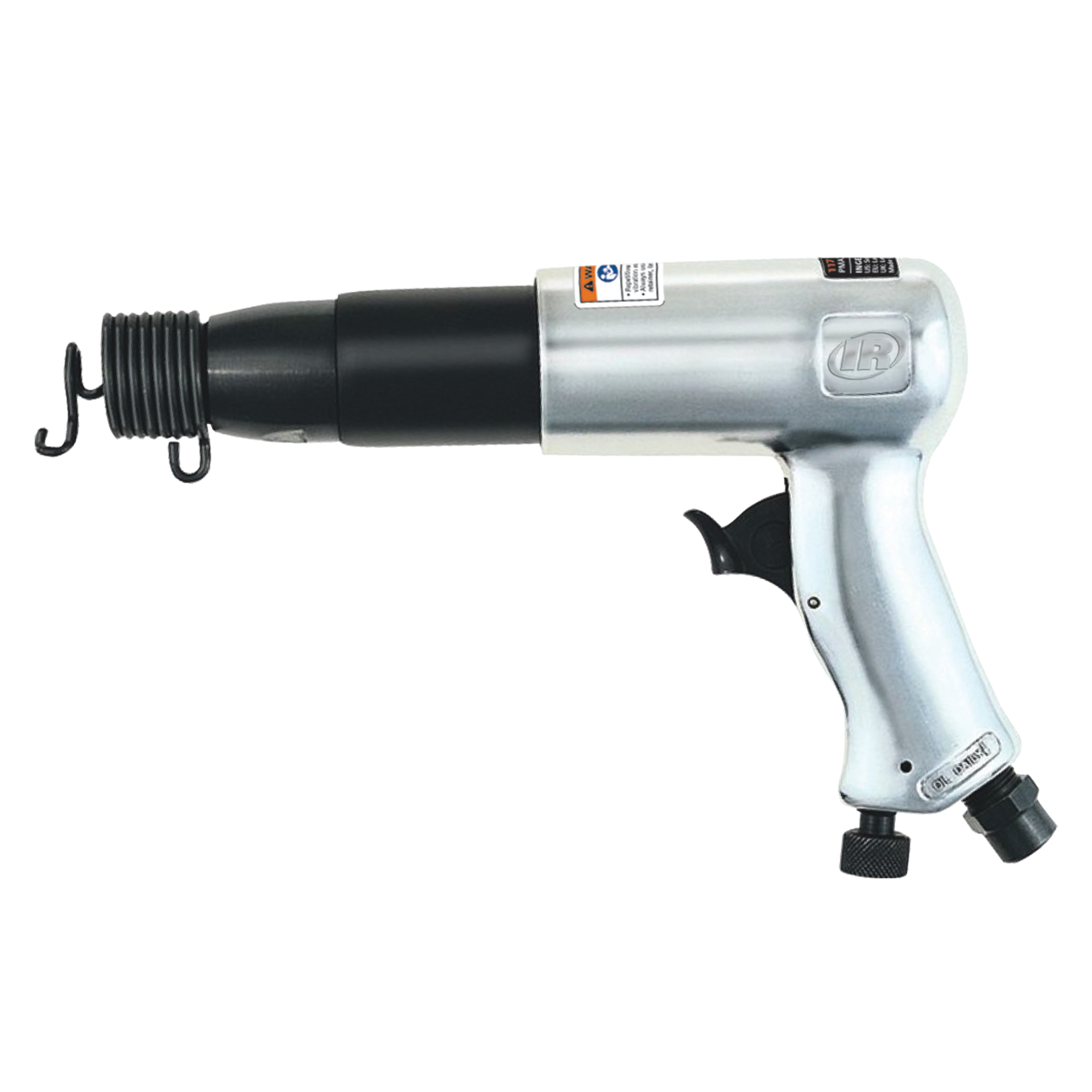

Air Hammer, 2000 BPM, 3-1/2" Stroke
The 117 standard air hammer has a longer piston stroke than other hammers in the series. It is designed for exhaust work, bolt cutting, and front end work.
Features And Benefits
- Reliable: Ingersoll Rand promises tools that last, and this hammer is no different. You can count on it to perform the same way every time. Comes with a 1-year warranty.
- 2,000 Blows Per Minute: This hammer has a built-in power regulator that allows you to completely control the speed and power output of your tool.
- Longer Life: To ensure a long life for your tool, it has a heat-treated piston and an alloyed steel barrel.
Includes: Tool, Retainer, Manuals
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 15
Air Consumption @ Load (l/min): 396
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Blows per Min: 2000
Bore Diameter (in): 0.69
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: General Duty
Handle Material: Aluminum
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.9
Product Width (in): 7.4
Product Height (in): 2.68
Product Weight (lb): 4.1
Retainer Type: Spring
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 103.5 / 114.5
Standards/Certifications: Ce
Stroke Length (in): 3.5
Vibration Level (m/s2): 9.2
Warranty: 1-year
