PCF System, 016, Mast, No Meter, Io

GG PF2200

PCF SYSTEM, 016, MAST, NO METER, IO

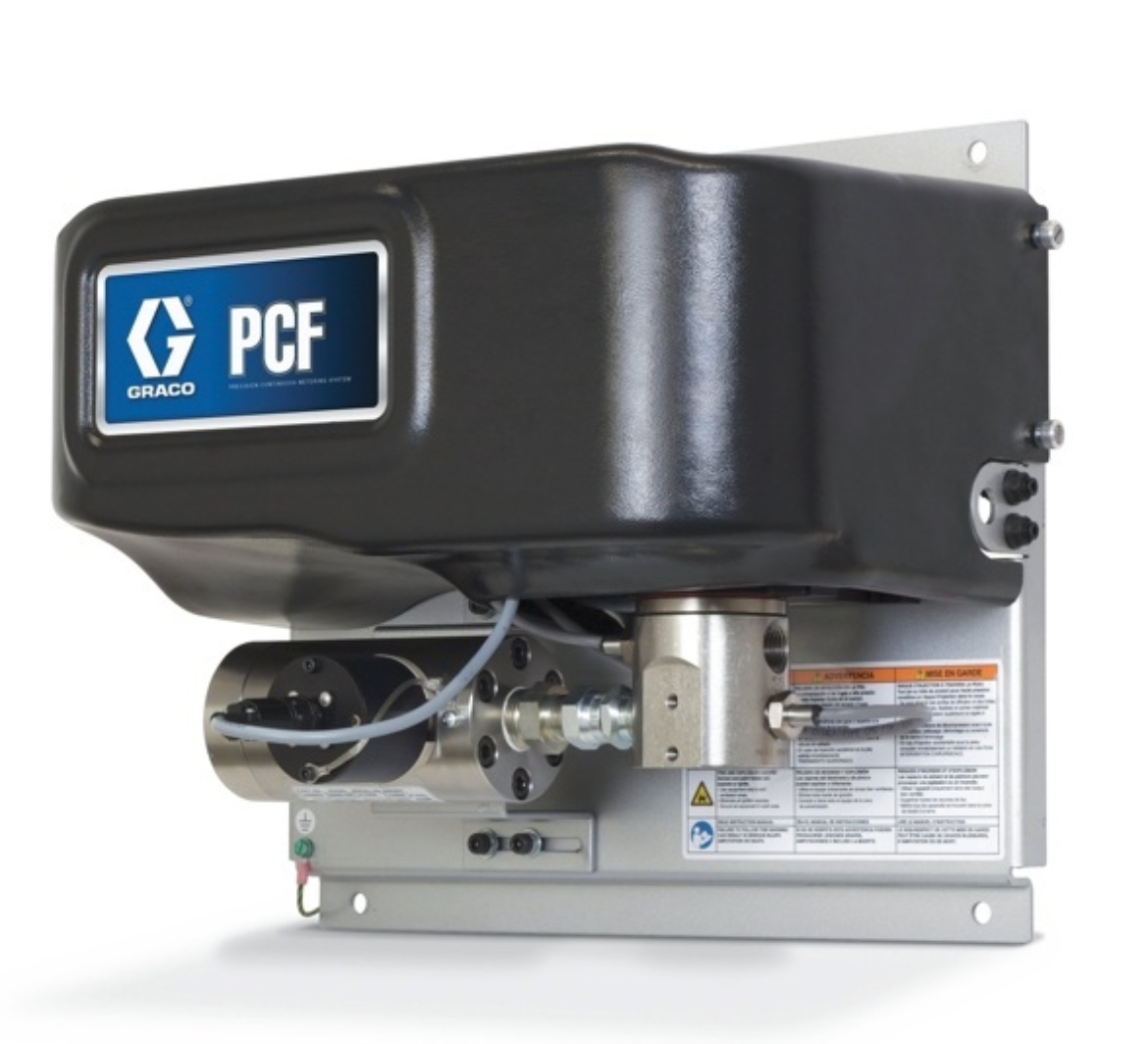

Graco PF2200 16 Styles 100-240 VAC Precision Flow System with Mastic Regulator, No Meter and Discrete User Interface

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.

• The next generation of precision metering
  • Closed-loop "real-time" control ensures a precise, continuous dispense – improves part quality and reduces material waste
  • Intuitive user interface simplifies setup, reduces training time
  • Integrated USB interface for easy data downloads - allows for further analysis of process data
  • Multiple gun capabilities for additional productivity - lets you program up to four guns
  • Compact modular design - easy to install, integrate and maintain
  • Low cost of ownership - fewer wear parts compared to shot meters

• Model: PCF

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Air Outlet Size (in): 5/32

• Ambient/Warm Melt/Hot Melt: Ambient
• Amperage (A): 1.4
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
• Applicator Type: Automatic

• Compatible Material: Sealants, Adhesives

• Component Type: Single Component

• Flow Control Type: Regulation, Control
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 17281.1023622047
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 1728.1102362205
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Frequency (Hz): 50/60
• Gateway: Discrete User Interface

• Gun Activation: Automatic

• Includes: Regulator, FCM Key Token

• Maximum Air Inlet Pressure (bar): 8.27
• Maximum Air Inlet Pressure (kPa): 827
• Maximum Air Inlet Pressure (MPa): 0.83
• Maximum Air Inlet Pressure (psi): 120

• Maximum Ambient Temperature (°C): 49
• Maximum Ambient Temperature (°F): 120

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120
• Maximum Fluid Viscosity (cP): 1000000

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120
• Maximum Fluid Viscosity (cP): 1000000

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000
• Measuring Type: Meter
• Meter Type: No Meter

• Minimum Fluid Viscosity (cP): 10000

• Minimum Voltage (V ac): 100

• Number of Styles for Fluid Plate: 16

• Overall Depth (in): 16

• Ove
