Parts

RR 79140-02

Tip, Fluid, .054/.056, #2

RR 79377-45

Nozzle, Fluid, #45

RR A12433-25

Low Voltage Cable Extension

RR A12768-05

Fiber Optic Cable Ass'Y., 60 Ft

RR A13542-00

Fiber Optic Cable Assembly

SSI CP9420-SS

Packing Stop

SX PT850-19

Wear Plate

SX SP506575

Blade Set

U 940408

Spring

U 9589055

O-Ring P-4

AIM 975-752-0

Adjusting Spacer. 1MM, 15X10X.1MM, ULT-40S/UD-50-22

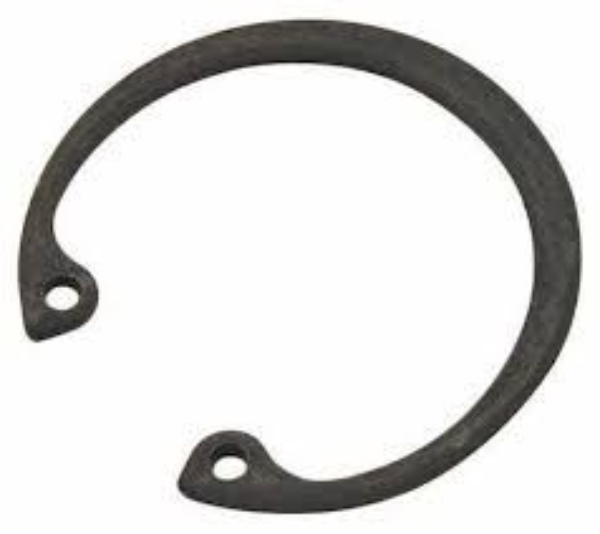

APT 1158

RETAINING RING, N5000-106

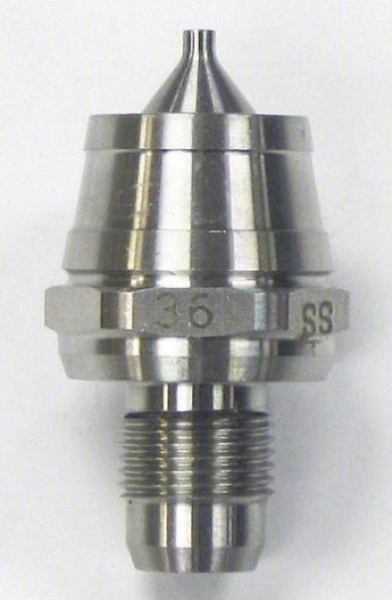

BB 45-3601

36Ss Fluid Nozzle Pkgd

BB 54-6129-K

Fluid Needle Packing Kit

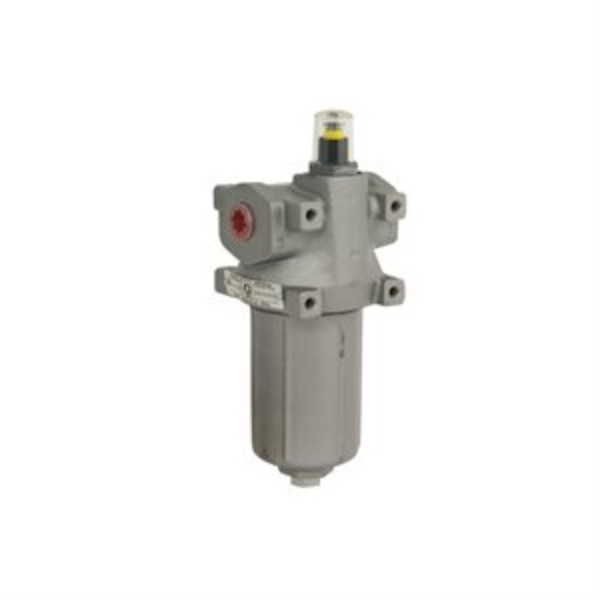

GG 210090

FILTER, LIQUID HP 60

High Pressure, Medium Volume, Red Alert Filter, 60 mesh (250 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

Large flow capacity is ideal for large circulation and supply systems. Red Alert indicator signals filter element replacement to ensure efficient filtration Integrated mounting holes make installation to frame and equipment easy Bottom port for installing quick flush ball valve

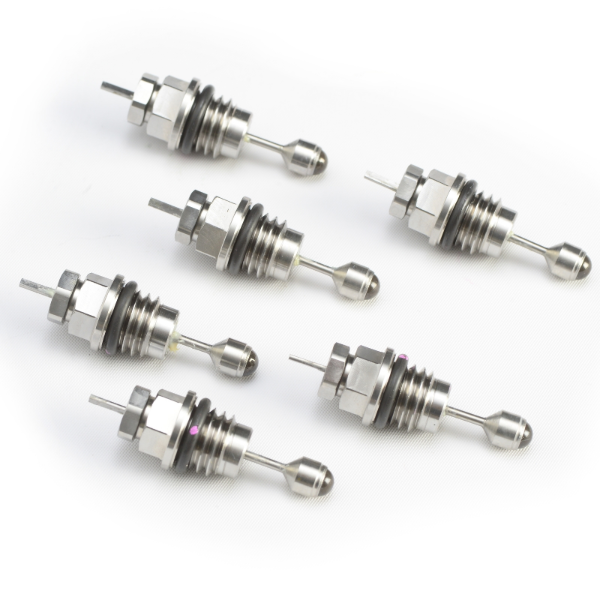

GG 24E436

KIT,NEEDLE,ASSY,6 PACK

Graco 24E436 6-Pack Needle Assembly Kit

KIT INCLUDES: NEEDLE, ASSEMBLY [QTY. 6 ], KIT INCLUDES: PACKING, O-RING [QTY. 6 ],

GG 24H281

KIT, O-RING

KIT INCLUDES: O-RING, 111, VITON EXTREME [QTY. 11 ]

GG 24H282

KIT, CUTTER COVER

KIT INCLUDES: COVER, CUTTER, MACHINED [QTY. 1], RING, SNAP [QTY. 1], WASHER, LOCK [QTY. 1], KNOB, COVER RELEASE [QTY. 1], SCREW, SHLDR, SHC, 6-32X0.25L [QTY. 1], PLATE, CUTTER COVER [QTY. 1], SCREW, CAP, SH, 6-32X.25LG, SST [QTY. 2], DEFLECTOR, CHUTE, OPEN, RS, EX CHOPPER [QTY. 1], SCREW, SHLDR, SHC, 6-32X0.125L [QTY. 1], WASHER, FLAT [QTY. 1], WASHER, LOCK, SPRING [QTY. 1], SEALANT, ANAEROBIC, BLUE [QTY. 1], LINER, RS GUN CHOPPER [QTY. 1]

GG 269623

CONTRACTOR FLAT TIP, SPRAY 623

Contractor Flat Tip, 623 The 623 Contractor Flat Tip produces a 12 to 14 inch fan and has a 0.023 inch orifice.

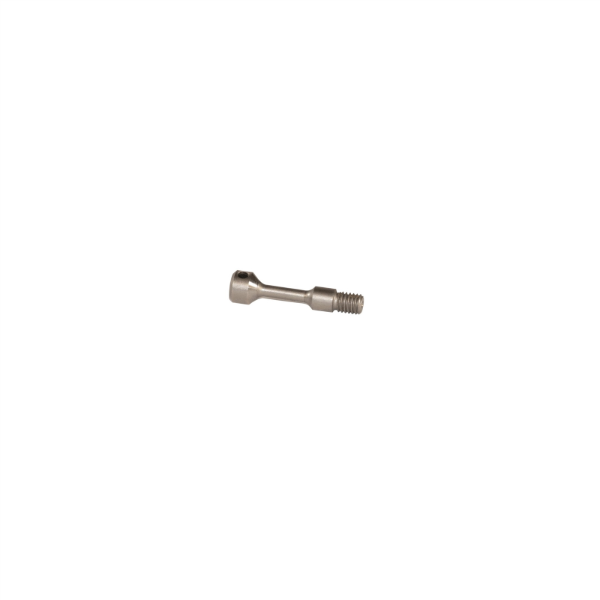

GG 626062

NEEDLE, 2K2,HARDENED STEEL

GG AEM511

TIP,MANUAL,ES

Graco AEM511 AEM Fine Finish Spray Tips, 0.011 inch (0.279 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width

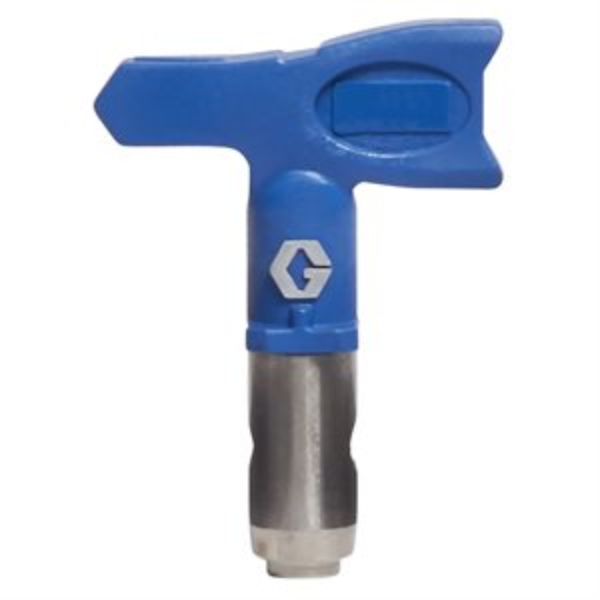

GG LTX631

RAC X LTX TIP, SPRAY, 631

Graco LTX631 RAC X SwitchTip, 631

The Reverse-A-Clean (RAC) 631 RAC X SwitchTip produces a 12 to 14 inch fan and has a 0.031 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commercial or industrial applications.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible – even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 30
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 356

• Maximum Flow Rate (GPM): 1.03
• Maximum Flow Rate (L/min): 3.90

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 12
• Minimum Fan Width (mm): 305

• Orifice Diameter (in): 0.031

• Pattern Size (in): 12 to 14
• Pattern Size (mm): 304.8 to 355.6
