GG EHR312
PACKAGE, E20, R3, ELITE, MULTI, EH

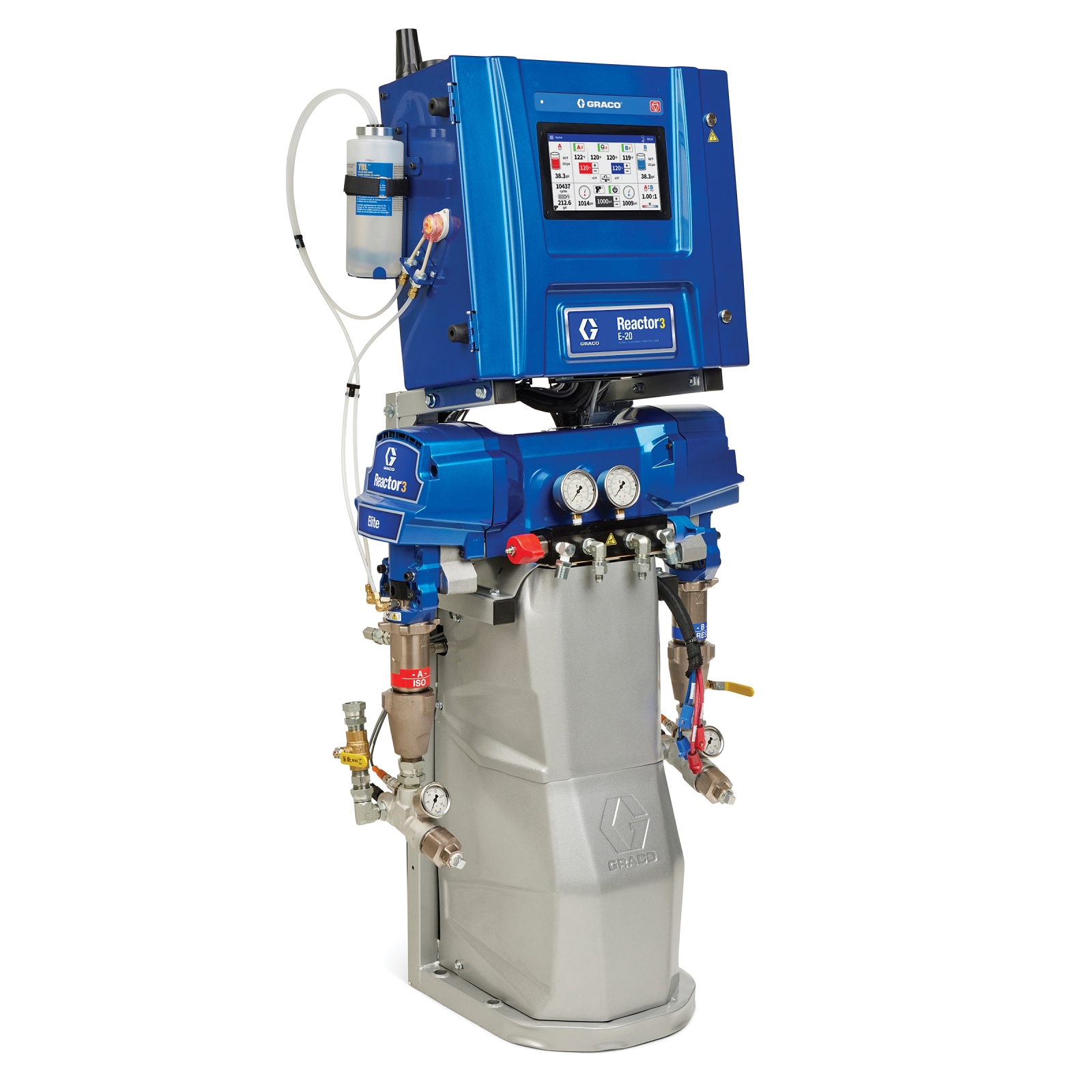

Reactor 3 E-20 Elite Tier Spray Foam Proportioner Package, 200 ft External Heated Hose, 10 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required.
Katalyst- Katalyst full system communication and control that improves performance, ratio and yield
- Requires Core E1 pumps
Supply Pump Shutdown- Automatically shuts down when you run out of material
- Prevents air from entering the system that can cause off-ratio issues
- Requires Core E1 pumps
Smart Supply- Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials
Auto Pressure Balance- Automatically adjusts temperatures to optimize fluid pressures and maximize yield
Power Management- Select desired heater wattage for reduced power consumption
Cellular Software Updates- Automatically stay up to date with the latest Reactor software
Touchscreen Advanced Display Module (ADM)- Large new touchscreen interface
- Intuitive operation and navigation
- All spray operations from one screen
Independent Hose Control- Control A and B materials to different temperatures for improved pressure balancing
- Optimizes yield
Advanced Electric Design- Brushless motor for improved pressure/flow performance
- New temperature control boards for independent hose heat
- Voltage jumpers for easy changing between voltages
- Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
Reduced Size- Reduced footprint provides additional room in your rig
- Compact design protects the flow meters and hose connections from being damaged in your rig
