Nutrunner

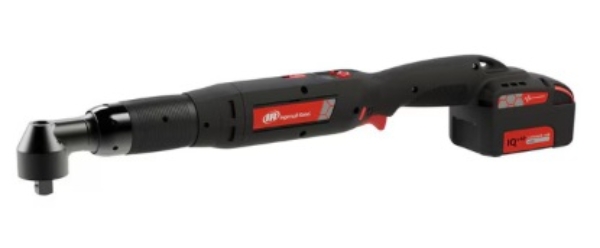

IR QXXN5AT080ES08

1/2" 40V Cordless QX Precision Fastening ETS Angle Torque Wrench, 708 in-lb Torque, 375 RPM

Description: A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 375
• Max Torque (ft-lb): 59
• Max Torque (in-lb): 708
• Max Torque (nm): 80
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23.1

• Product Height (in): 3.94
• Product Weight (lb): 5
• Recommended Forward Torque Range (ft-lb): 8.9-59
• Recommended Forward Torque Range (in-lb): 106-708
• Recommended Forward Torque Range (nm): 12.0-80
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• User Interface: No Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

IR QE2PT007P10Q04

IR QE4AT027PA4S06

CL CCBAW503

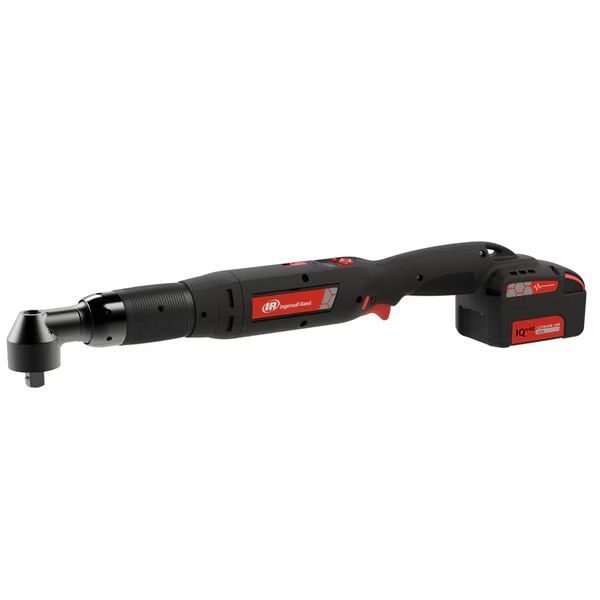

IR QXXD2AT010PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 89 in-lb Torque, 936 RPM, Display

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 936
• Max Torque (ft-lb): 7.4
• Max Torque (in-lb): 89
• Max Torque (nm): 10
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 20.67

• Product Height (in) (with Battery): 3.94
• Product Weight (lb): 2.6
• Recommended Forward Torque Range (ft-lb): 1.5-7.4
• Recommended Forward Torque Range (in-lb): 18-89
• Recommended Forward Torque Range (nm): 2.0-10
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.49
• Side to Center Distance (mm): 12

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

STR 10293

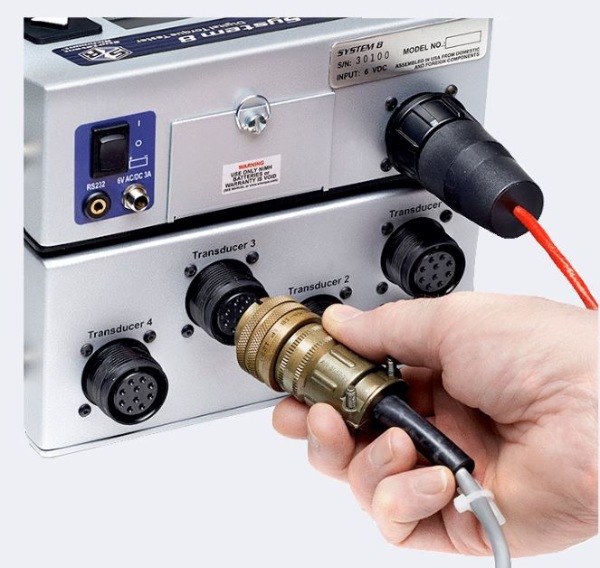

Torque Tester Accessories: System 8 Digital Torque Tester Cables

Product Description

• Cables for System 8

CL CCBAW253

STR 810400

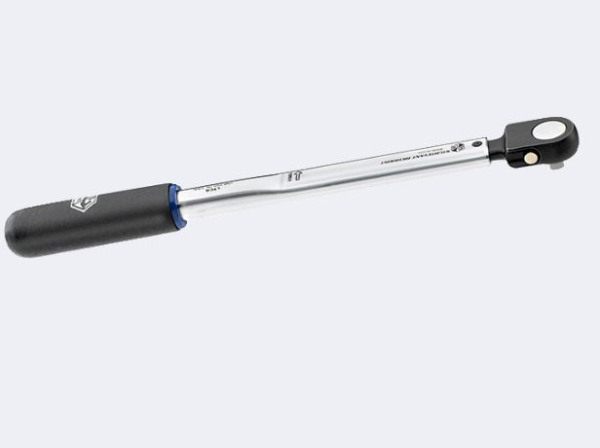

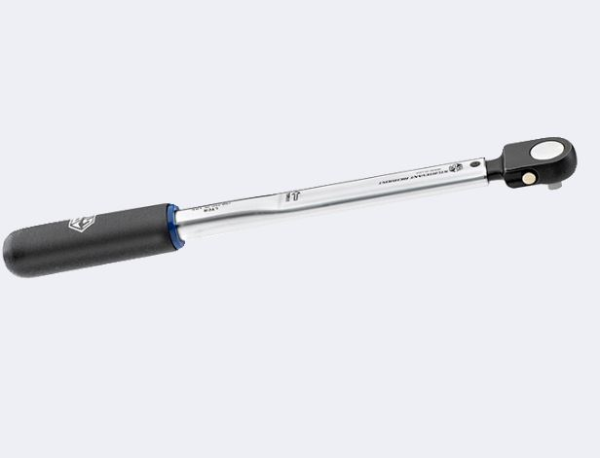

Click-Type Preset Torque Wrenches: LTCR Preset Interchangeable Head Click-Type Wrench - Ratcheting Square Drive, in-lb

Product Description

• LTCR-Series torque wrenches have +/- 4% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
• When we preset the torque value for you at the factory, we include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Flattened case prevents side loading and provides support for the click mechanisms so the wrench is easier to calibrate and it hold calibration longer
• Cushioned comfort grip is lightweight and provides excellent ergonomics
• Slide pin ratchet provides strength and durability
• Easy to install ratchet renewal kit is available
• The torque is preset and locked in with a special tool
• Combination Adjusting and Release Tool (CART P/N 819177) allows the operator to easily adjust torque on all SLTC, LTC, LTCR and LTCS wrenches
• Torque can be set using any unit of measurement
• Can be ordered preset from the factory or you can set the torque with your own torque tester
• Wrench measures torque in the clockwise direction

STR 810413

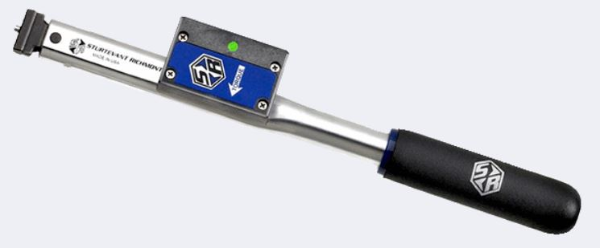

Wireless Click-Type Torque Wrenches: SLTC FM 2.4 GHZ Click Wrenches, in-lb

Product Description

• Preset click torque wrench measures and applies torque in the clockwise direction
• Using this wrench in the counter-clockwise direction will apply torque, but it will not measure torque because it does not click in the counter-clockwise direction
• Flattened case for superior accuracy, reliability, and durability
• Accuracy of +/- 4% or better of preset value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Excellent audible/tactile impulse when preset torque is achieved
• Error Proofing By Guidance: Monitors time in the clicked position to proved OK/BAD quality attribute data with every use of the tool
• Error Proofing By Behavior Modification in action. The new A3 has a new battery that lasts longer and is easier to change
• Raised LED Fresnel to improve visibility when working in less than optimal positions
• AAA batteries are more readily available than are the 6-volt batteries

STR 810713

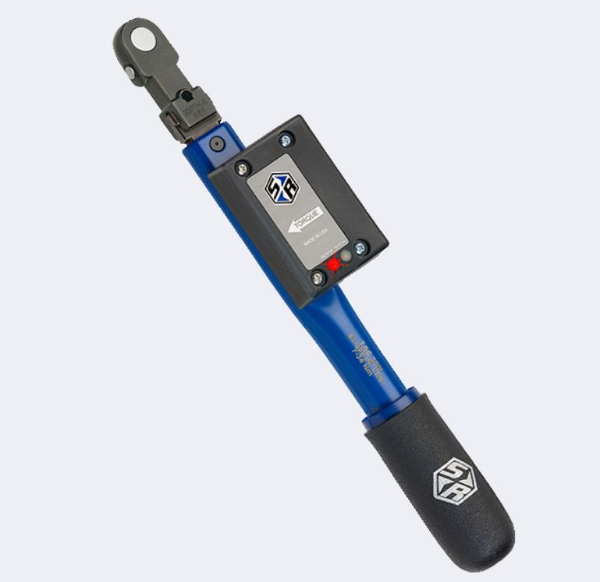

Wireless Digital Torque Wrenches: TAC Digital Torque and Angle Wrench, in-lb

Product Description

• Keep up with the shortest of takt times
• Fully compatible with the Global 400, Global 400mp, and the TCV e2 torque controllers
• Works with the Patented Holding Tool when used with the Global 400 or Global 400mp
• Access to over 200 interchangeable heads that all fit on the end of the Pin and Spring Dovetail
• Heads "Lock On" to the Dovetail when the head is centered on the wrench
• Powered by one AAA NiMH rechargeable battery; Using any battery other than a AAA NiMH immediately voids the warranty
• Ships with two NiMH rechargeable batteries, charger sold separately
• Accuracy of +/- 4% of the indicated value between 20% and 100% of the rated torque capacity
• #Equipped with two LEDs: green/red for OK/NOK and blue that pulses when tool becomes active and ready for use
• Pulsing blue LED timing can be adjusted in the controller to help operators identify the active tool if there are multiple TAC wrenches in a work cell
• Requires a special tool to set torque value, this prevents inadvertent changes to the torque output
• Comes with ISO 17025 Calibration Certificate if we set the torque value at the factory
• Torque modes of operation include Click and Peak
• Click reads the torque value at which the wrench clicked

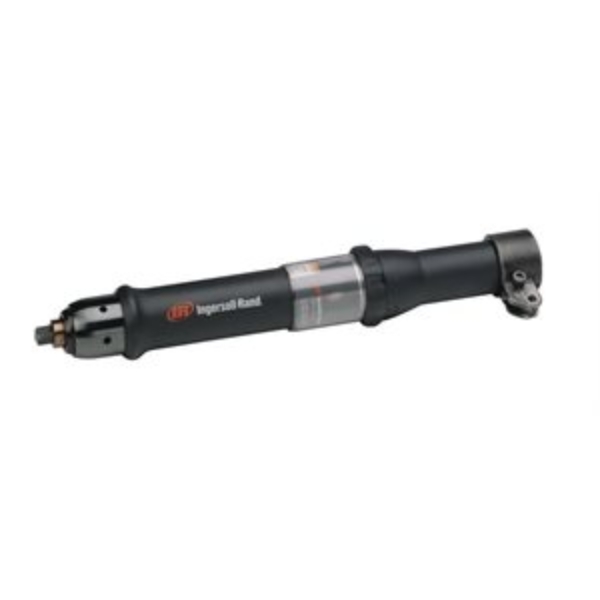

IR QE4TS010R11Q04

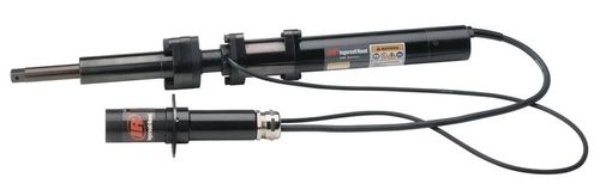

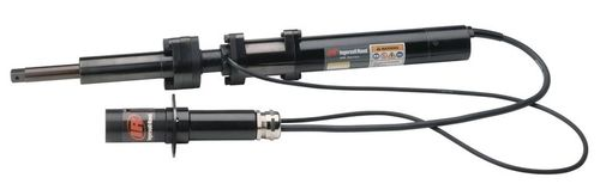

IR QM5SS055L62S08

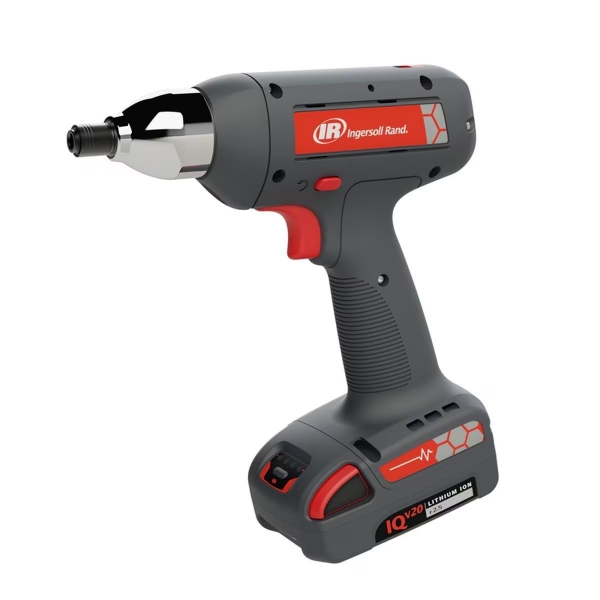

IR QXXD2PT018EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 159
• Max Torque (nm): 18
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.13

IR QXXD5AT040PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 354 in-lb Torque, 545 RPM, Display

Description: A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key on QXXD Models.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 545
• Max Torque (ft-lb): 30
• Max Torque (in-lb): 354
• Max Torque (nm): 40
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23.07

• Product Height (in): 3.94
• Product Weight (lb): 5
• Recommended Forward Torque Range (ft-lb): 5.9-30
• Recommended Forward Torque Range (in-lb): 71-354
• Recommended Forward Torque Range (nm): 8.0-40
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

CL 55PTHHA403

IR QA4AALS011NP25S06

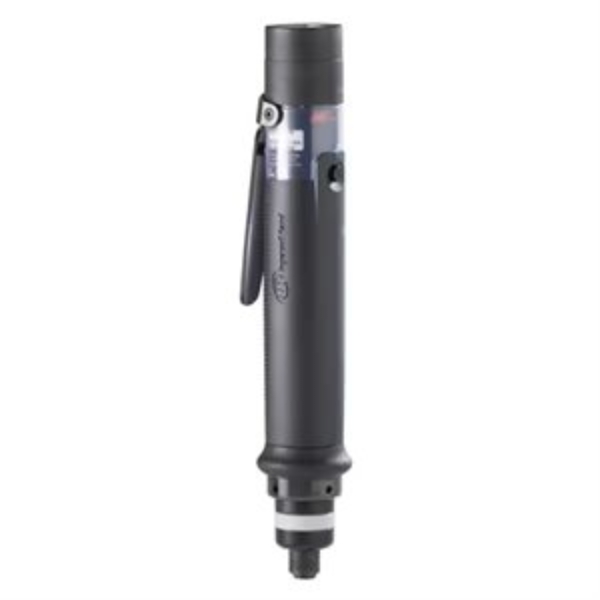

IR QE2TS010P11Q04

IR QXXD5AT035PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 310 in-lb Torque, 640 RPM, Display

Description: A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key on QXXD Models.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 640
• Max Torque (ft-lb): 26
• Max Torque (in-lb): 310
• Max Torque (nm): 35
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 22.91

• Product Height (in): 3.94
• Product Weight (lb): 4.8
• Recommended Forward Torque Range (ft-lb): 5.2-26
• Recommended Forward Torque Range (in-lb): 62-310
• Recommended Forward Torque Range (nm): 7.0-35
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.68
• Side to Center Distance (mm): 17

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C
