Nutrunner
CellClutch Tool, Right Angle, 15.1-41 NM, 185 RPM, 3/8 SQ Drive
CL CLBA403
CL CLBA403
NUTRUNNER, CL AH - 40NMCellClutch Cordless Assembly Tools deliver simple, programmable torque control to your line.
Tool Configuration: Right Angle
Weight (lbs): 4.1 lb
- Reduced Operator Error - Pre-set torque, ok not ok green and red lights make tool operation simple.Eliminate cross threads and errors during rundowns with programmable speeds and strategies.
- Eliminate Over Torque Damage - Contactless electronic switch shuts off tightening rotation when set torque is reached.
- Reliable Single Battery Platform - Milwaukee M18 Red Lithium battery can be used across the entire Cleco cordless range to reduce complexity and costs in your plant.
- Quick Tool Installation - Setting the preferred torque is a quick and easy 3-step process: Complete a rundown, read the torque and make adjustments, complete another rundown to verify required torque is met.
- Speed Control - Easily change the tool's RPM settings to meet the required application requirements.
Tool Configuration: Right Angle
Weight (lbs): 4.1 lb
$2,115.00
Nutsetter, CT Pistol, 5 Nm
CL CTBPW05Q
CL CTBPW05Q
Nutsetter, CT Pistol, 5 NmDesigned to ensure safety-critical assembly with best-in-class accuracy, they are also the fastest cordless assembly tools in its class.
Values do not include battery. 2ah Battery weighs 0.43kg. 5ah Battery weighs 0.72kg.
- Connectivity - The most reliable realtime synchronization with manufacturing and engineering systems
- Speed - Improve your production time with the fastest cordless assembly tools in its class
- Ergonomic - Sleek and lightweight for the ultimate in comfort and balance
- Accurate - Ensures safety-critical assembly with best-in-class accuracy and repeatability
Values do not include battery. 2ah Battery weighs 0.43kg. 5ah Battery weighs 0.72kg.
$10,515.05
QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V ANGLE 15 NM STANDARD SQUARE 3/8 INCH
IR QXXN2AT015PS06
IR QXXN2AT015PS06
3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 133 in-lb Torque, 600 RPM
A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.Features And Benefits
- Now Comes with 32 programmable tightening configuration.
- Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
- Enhanced quantitative feedback – displaying the actual measured torque or angle result.
- 1,200 cycles of onboard tightening data storage.
- Configurable preventative maintenance alarms.
- Intuitive qualitative feedback using Green, Red, and Yellow indicators.
- All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
- Offer option for Insight Connect Android APP LINK
- Optional ergonomic tightening system to reduce torque reaction experienced by operator.
- Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 600
Max Torque (ft-lb): 11
Max Torque (in-lb): 133
Max Torque (nm): 15
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 2.2-11
Recommended Forward Torque Range (in-lb): 27-133
Recommended Forward Torque Range (nm): 3-15
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C
Call for pricing
Nutrunner, Rev., 3/4in Angle, 90Rpm
MPT MP-1763-90-LT
MPT MP-1763-90-LT
Nutrunner, Rev., 3/4in Angle, 90Rpm
$8,250.00

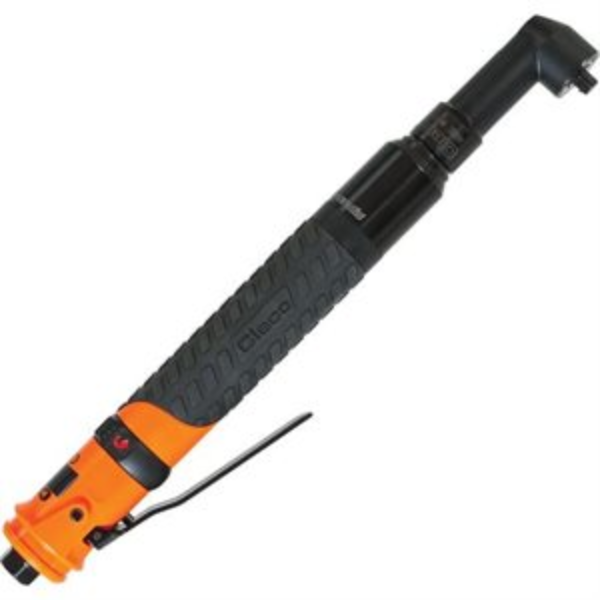

Nutrunner, Rt. Ang., 5.7Nm, 570 RPM, 1/4 Sq. Dr.
CL 19RAA05AM2
CL 19RAA05AM2
NUTRUNNER (570 rpm, 5.7Nm, 1/4 SQ DR)0.3 - 8.3 ftlbs / 0.5 - 11.3Nm
Tool Configuration: Right Angle
Weight (lbs): 1.81 lb
Tool performance rated at 90 psi (620kPa) air pressure. Standard Equipment: Manual and all torque springs required to meet indicated torque specification
- Durable Clecomatic Clutch delivers best-in-class torque repeatability and long calibration cycle
- Lightweight, ergonomic and durable handle designed with operator in mind
- Engineered to suit a wide range of applications, from high volume assembly to aerospace
- Grip material tested to withstand a range of industrial chemicals
Tool Configuration: Right Angle
Weight (lbs): 1.81 lb
Tool performance rated at 90 psi (620kPa) air pressure. Standard Equipment: Manual and all torque springs required to meet indicated torque specification
$2,839.20
