Mx Valve, Assembly 050T

GG 562517

MX VALVE, ASSY 050T

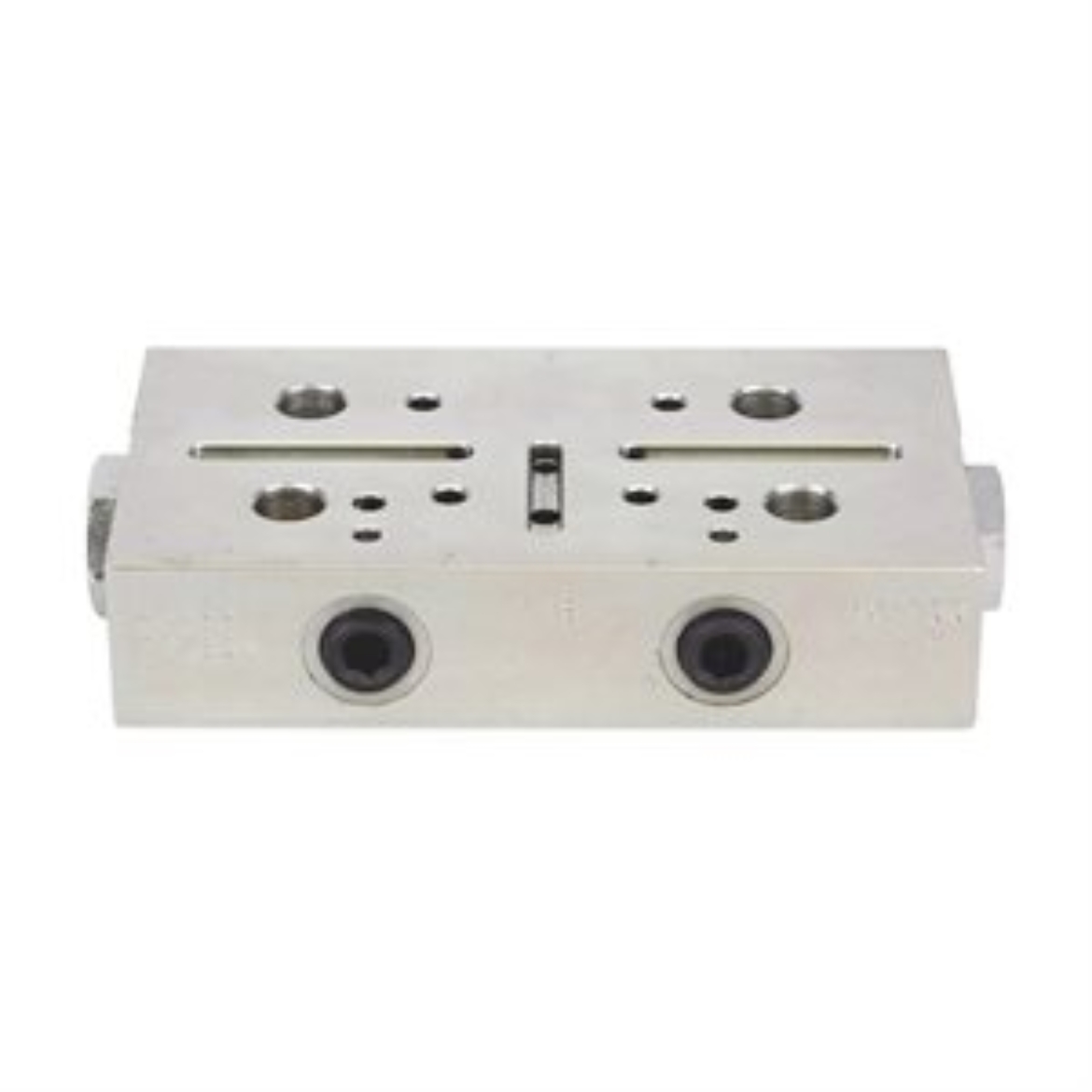

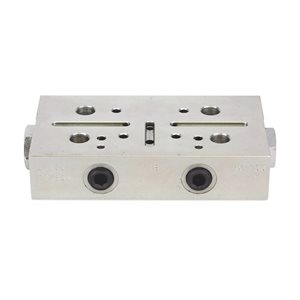

Graco 562517 Trabon MX Divider Valve - MX-50T - 0.050 in cu (0.82 cm cu )

Greater output volumes for heavy service requirements make the Trabon MX Series ideal for steel and paper mill systems with its economical and compact design.

• Lubricates large bearings
• Delivers up to 0.3 cubic inches (4.92 cubic centimeters) per cycle and has a wide range of accessories to monitor critical lubrication points
• Durable design withstands harsh environments and operating conditions
• Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event
• Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
• Lubriquip part number 004-050-002

• Model: Trabon
• Series: MX

• Application: In-Plant Machinery

• Compatible Material: Oil, Grease

• Cycle Indicator: None

• Discharge Per Piston Stroke (in cu ): 0.050

• Divider Valve Series: MX

• Material: Carbon Steel

• Maximum Cycle Rate (cycles/min): 200

• Maximum NLGI Grade: #2

• Maximum Operating Temperature ( degree C): 93
• Maximum Operating Temperature ( degree F): 200

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (psi): 3000

• Minimum Working Pressure (psi): 200

• Number of Outlets: 2

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Gender: Female
• Outlet Thread Type: NPSF
