GG 562516
MX VALVE, ASSY 050S

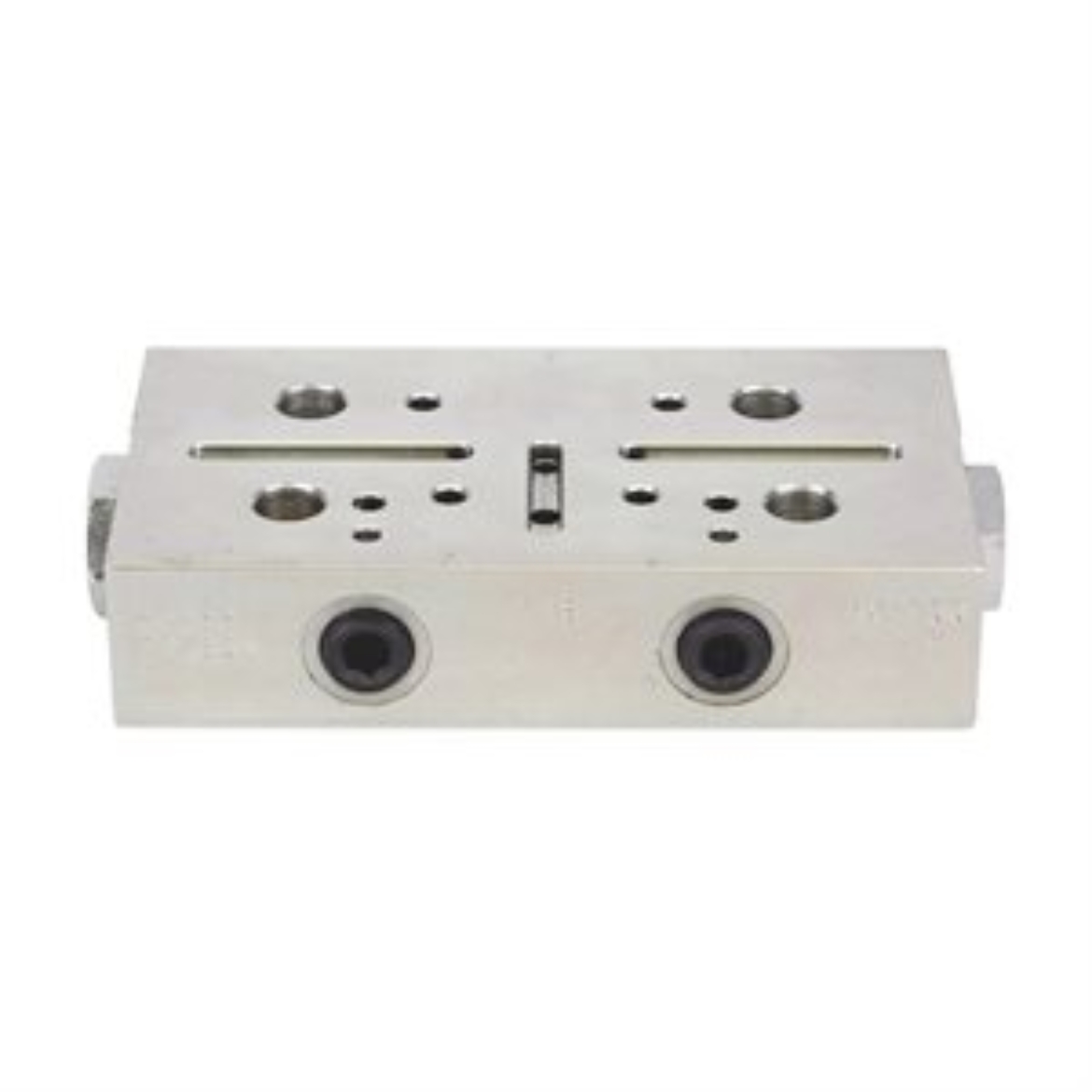

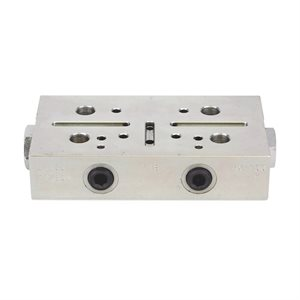

Graco 562516 Trabon® MX Divider Valve - MX-50S - 0.100 in³ (1.64 cm³)
Greater output volumes for heavy service requirements make the Trabon MX Series ideal for steel and paper mill systems with its economical and compact design.
- Lubricates large bearings
- Delivers up to 0.3 cubic inches (4.92 cubic centimeters) per cycle and has a wide range of accessories to monitor critical lubrication points
- Durable design withstands harsh environments and operating conditions
- Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 004-050-001
- Application: In-Plant Machinery
- Compatible Material: Oil, Grease
- Discharge Per Piston Stroke (in³): 0.100
- Maximum Cycle Rate (cycles/min): 200
- Maximum Operating Temperature (°C): 93
- Maximum Operating Temperature (°F): 200
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Working Pressure (psi): 200
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
- Outlet Thread Gender: Female
- Outlet Thread Type: NPSF
