Msp Valve, Assembly Msp 20T

GG 562723

MSP VALVE, ASSY MSP 20T

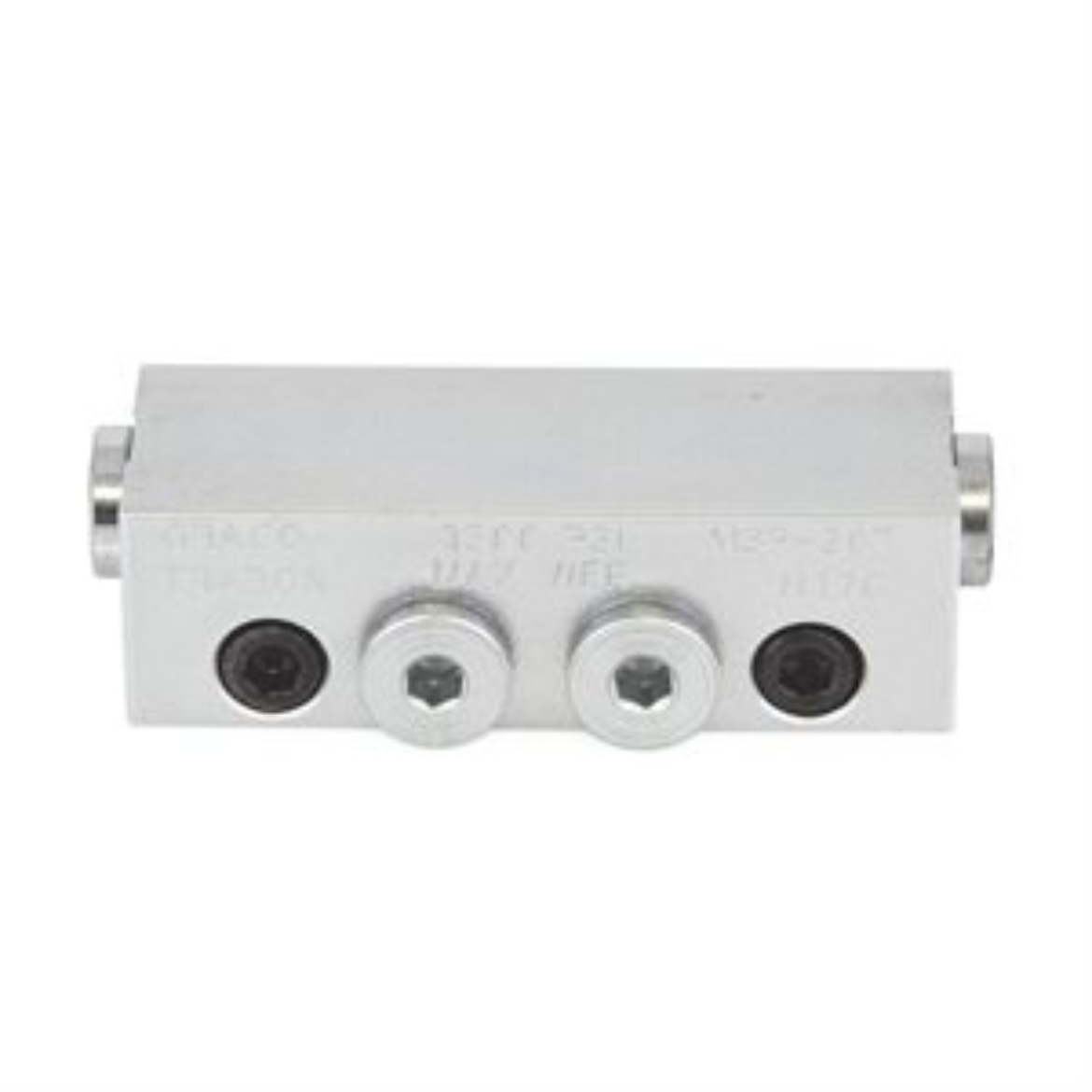

Graco 562723 Trabon MSP Modular Divider Valve - MSP-20T - 0.020 in cu (0.33 cm cu )

The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!

• Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
• Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
• Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
• Lubriquip part number 106-100-205

• Model: Trabon
• Series: MSP

• Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery

• Compatible Material: Oil, Grease

• Cycle Indicator: None

• Discharge Per Piston Stroke (in cu ): 0.020

• Divider Valve Series: MSP

• Material: Carbon Steel

• Maximum Cycle Rate (cycles/min): 200

• Maximum NLGI Grade: #2

• Maximum Operating Temperature ( degree C): 176
• Maximum Operating Temperature ( degree F): 350

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (psi): 3500

• Minimum Working Pressure (bar): 14

• Minimum Working Pressure (psi): 200

• Number of Outlets: 2
