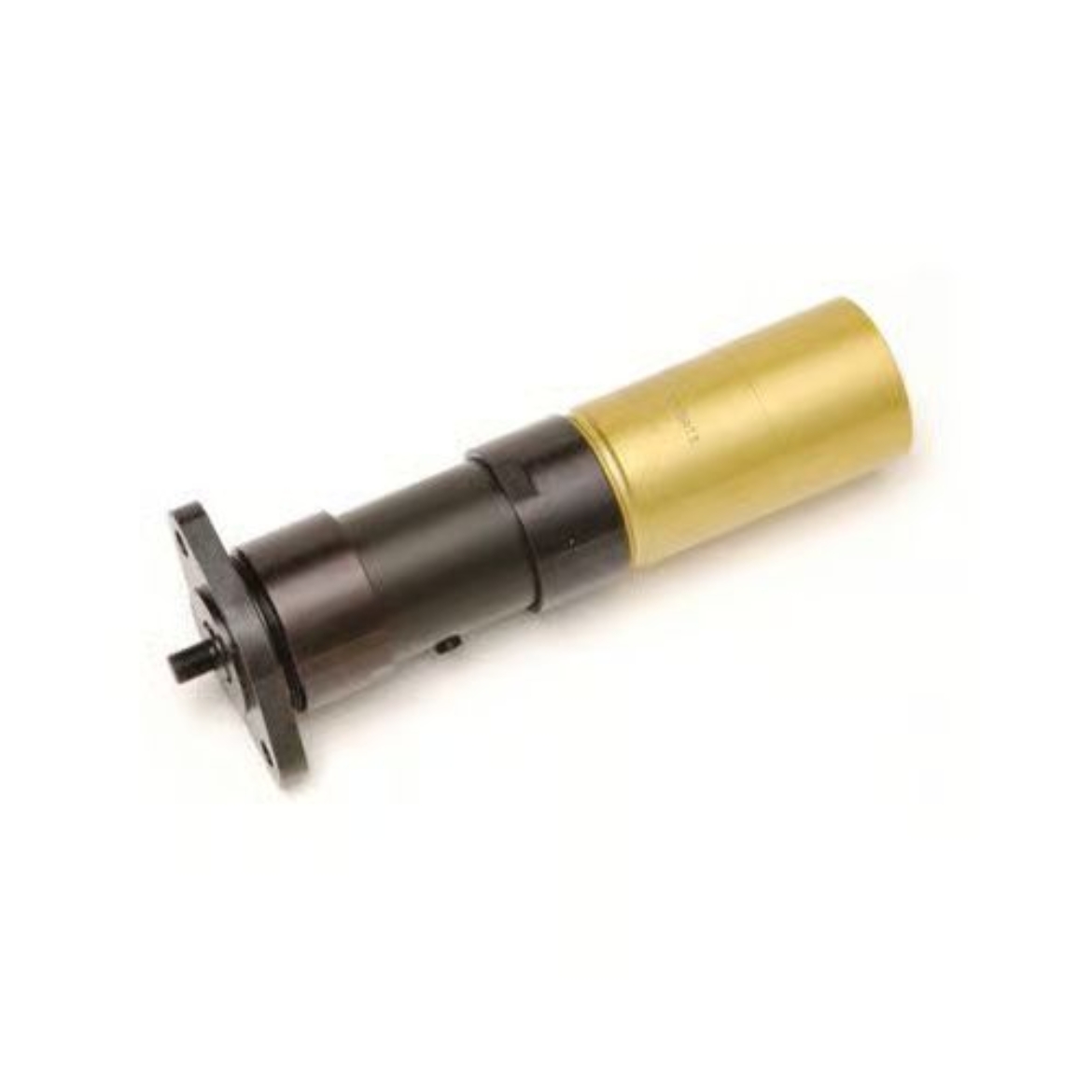

Motor, Reversible, 3/8 Round Keyed Spindle, .37HP

IR M004RVR004AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 3955 RPM, 0.37 HP, 2.05 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 18.5
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 4:1
• Gear Reduction: Single
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 3955
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1.5
• Max Torque (in-lb): 18
• Max Torque (nm): 2.05
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 2.19
• Rated Power (hp): 0.37
• Rated Power (kW): 0.28
• Reversible: Reversible

• Speed at Max Power (rpm): 1975
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 1.1
• Starting Torque (nm): 1.53

• Warranty: 1-year
