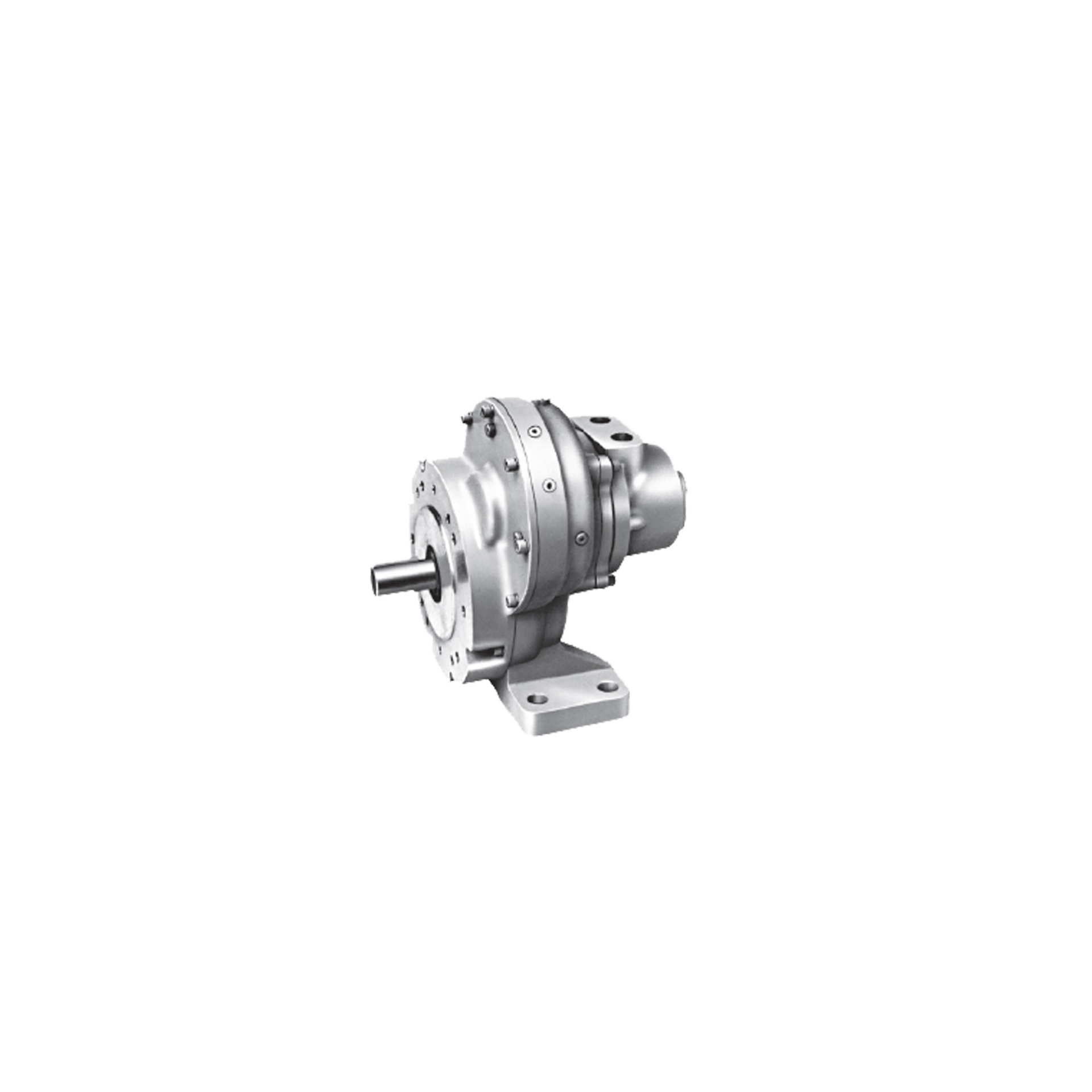

MOTOR -- MULTI-VANE

IR 48RA014

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 612 RPM, 3.1 HP, 133 NM, Reversible

Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 612
Max Pressure (bar): 6.2
Max Torque (ft-lb): 98
Max Torque (in-lb): 1177
Max Torque (nm): 133
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 332
Starting Torque (ft-lb): 72
Starting Torque (nm): 97.6
Warranty: 1-year
