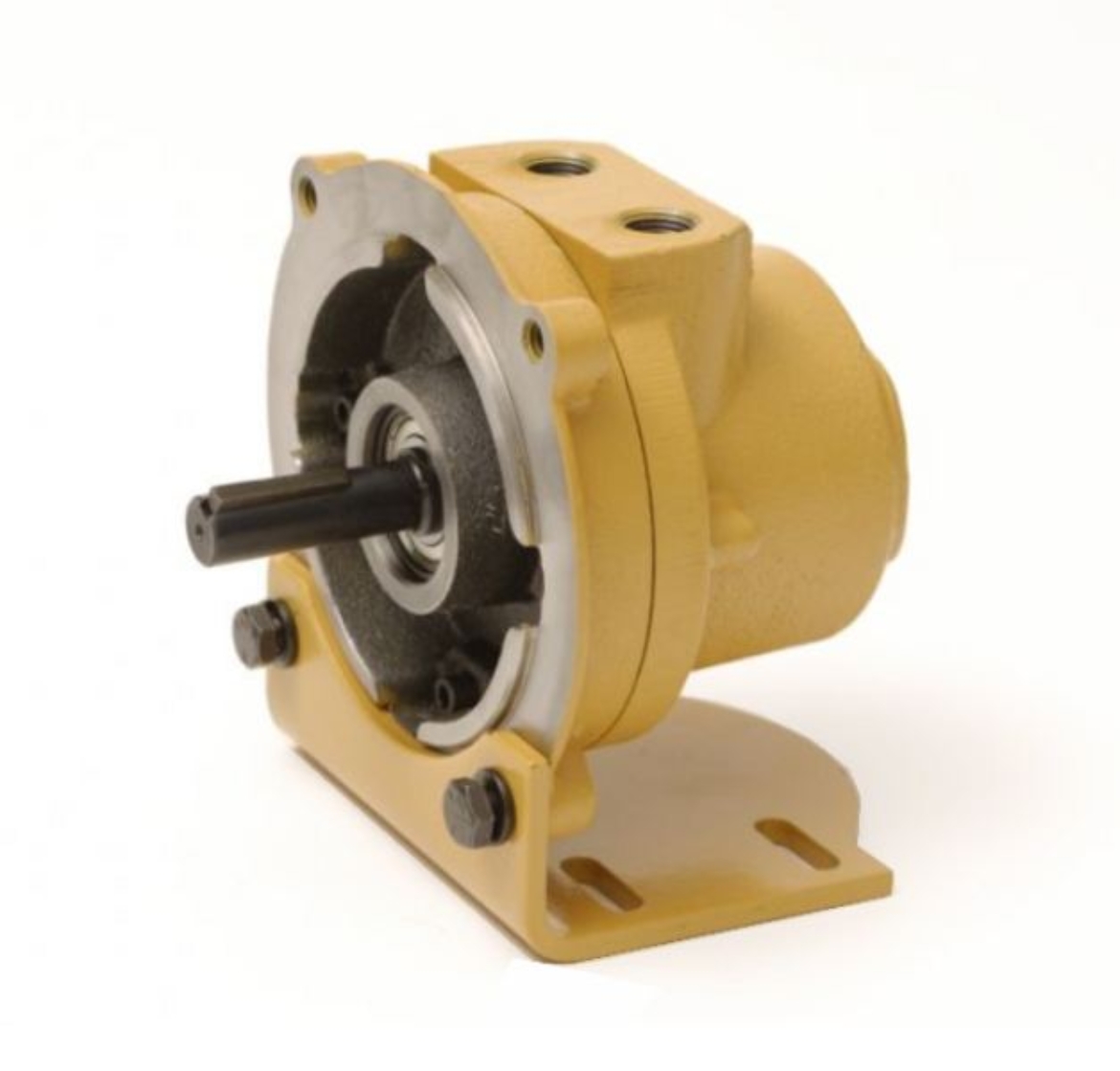

Motor Multi Vane

IR MVA034A

Direct Drive Air Motor, 7/8" Keyed Shaft, 6250 RPM, 4.15 HP, 17.4 NM, Reversible

• Air Consumption at Max HP (scfm): 181
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90

• Drive Size (in): 7/8
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Gearless

• Housing Material: Steel

• Max Free Speed (rpm): 6250
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 154
• Max Torque (nm): 17.4
• Motor: Rotary Vane
• Motor: Direct Drive
• Mounting Type: Foot

• Number of Mounting Holes: 4
• Power Source: Air Powered

• Product Weight (lb): 16.5
• Rated Power (hp): 4.15
• Rated Power (kW): 3.09
• Reversible: Reversible

• Speed at Max Power (rpm): 3000
• Starting Torque (ft-lb): 8.3
• Starting Torque (nm): 11.3

• Warranty: 1-year
