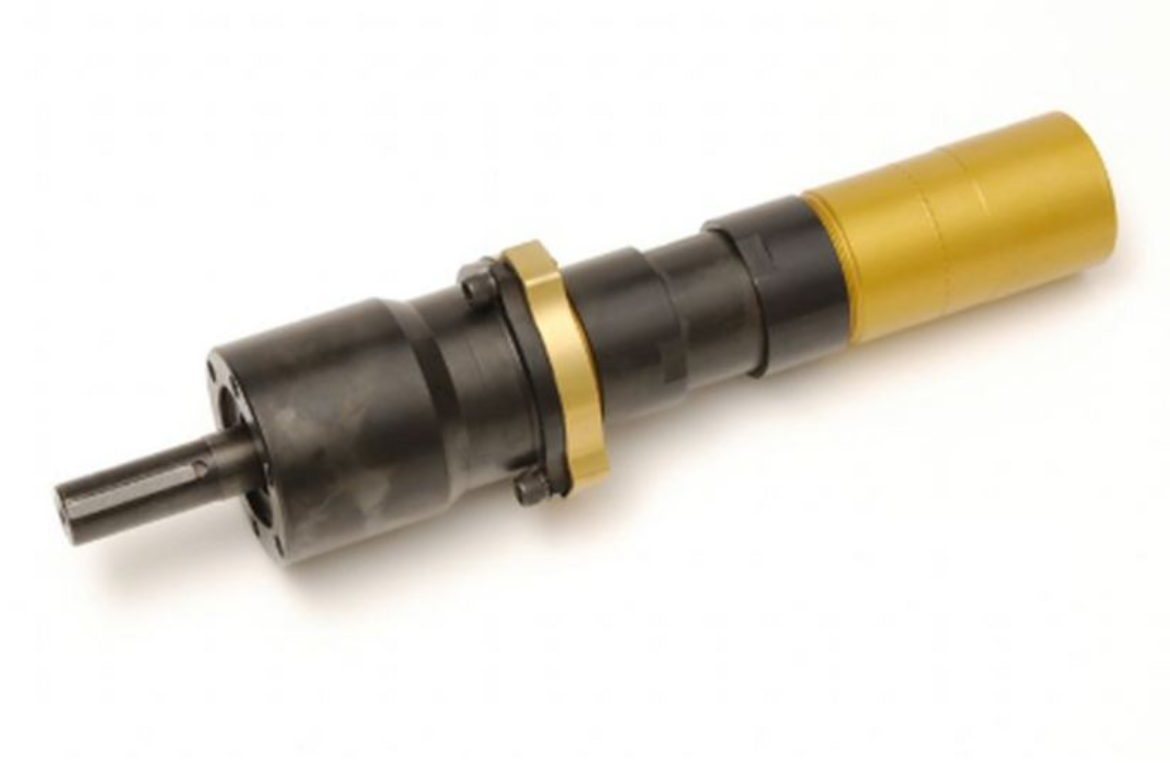

Motor

IR M007RVR021AR4

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 855 RPM, 0.64 HP, 16.5 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 33
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1/2
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 21:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 855
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 12
• Max Torque (in-lb): 146
• Max Torque (nm): 16.5
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 3.5
• Rated Power (hp): 0.64
• Rated Power (kW): 0.48
• Reversible: Reversible

• Speed at Max Power (rpm): 425
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 9.2
• Starting Torque (nm): 12.5

• Warranty: 1-year
