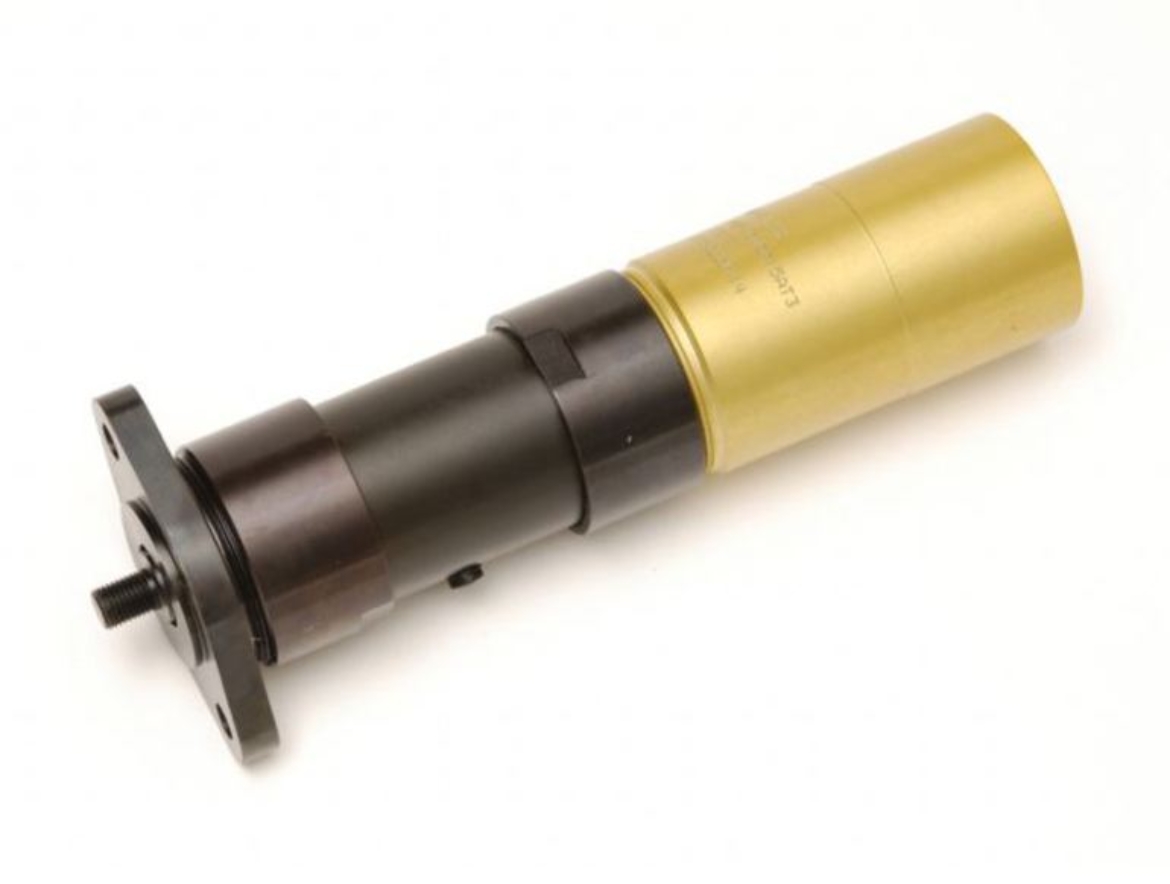

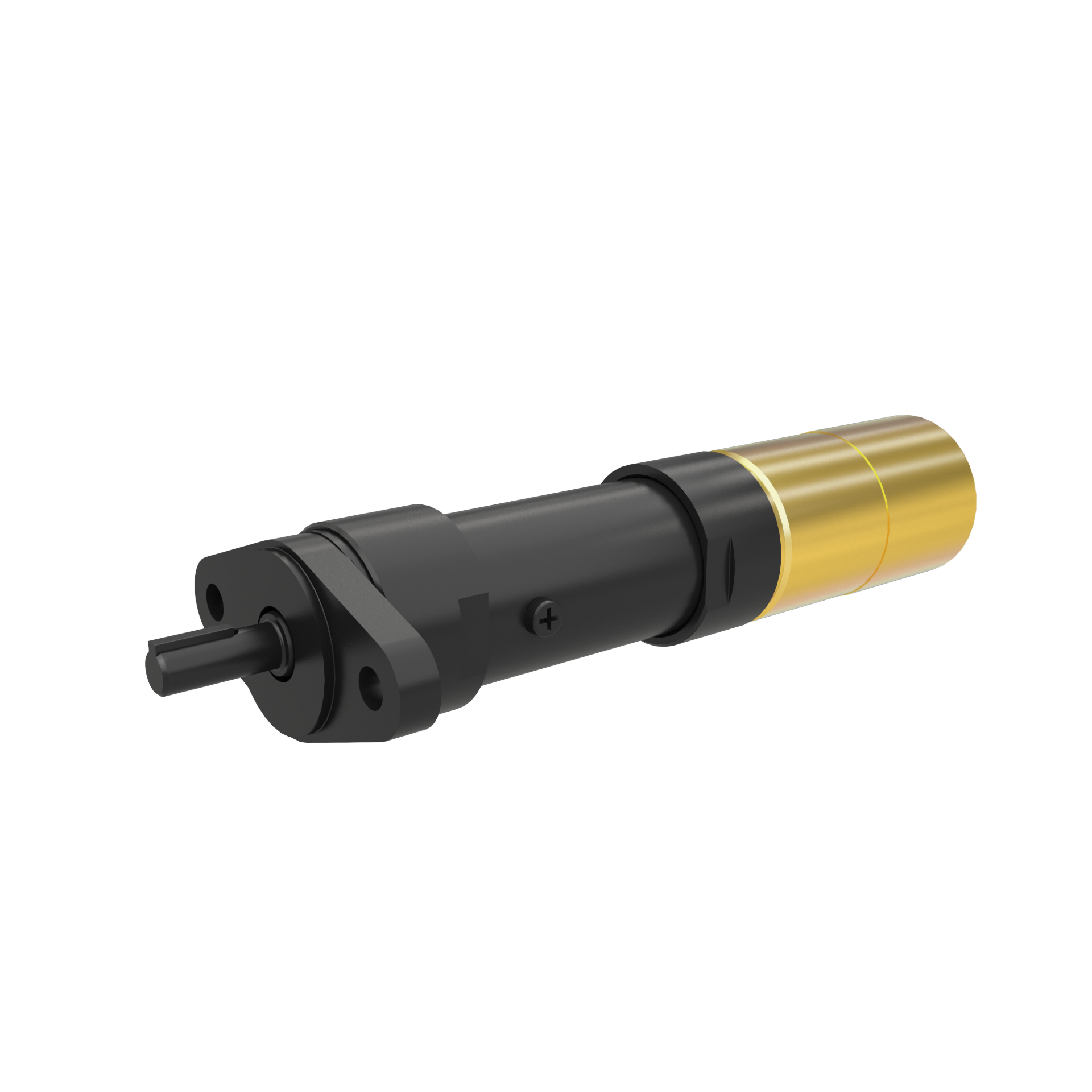

IR M004RVR050AR3
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 280 RPM, 0.31 HP, 22.4 NM, Reversible
Features And Benefits
- Safety: Meets ATEX Standards
Air Consumption at Max HP (scfm): 17.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 50:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 280
Max Pressure (bar): 6.2
Max Torque (ft-lb): 17
Max Torque (in-lb): 198
Max Torque (nm): 22.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.69
Rated Power (hp): 0.31
Rated Power (kW): 0.23
Reversible: Reversible
Speed at Max Power (rpm): 140
Standards/Certifications: ATEX
Starting Torque (ft-lb): 12
Starting Torque (nm): 16.7
Warranty: 1-year
