Motor

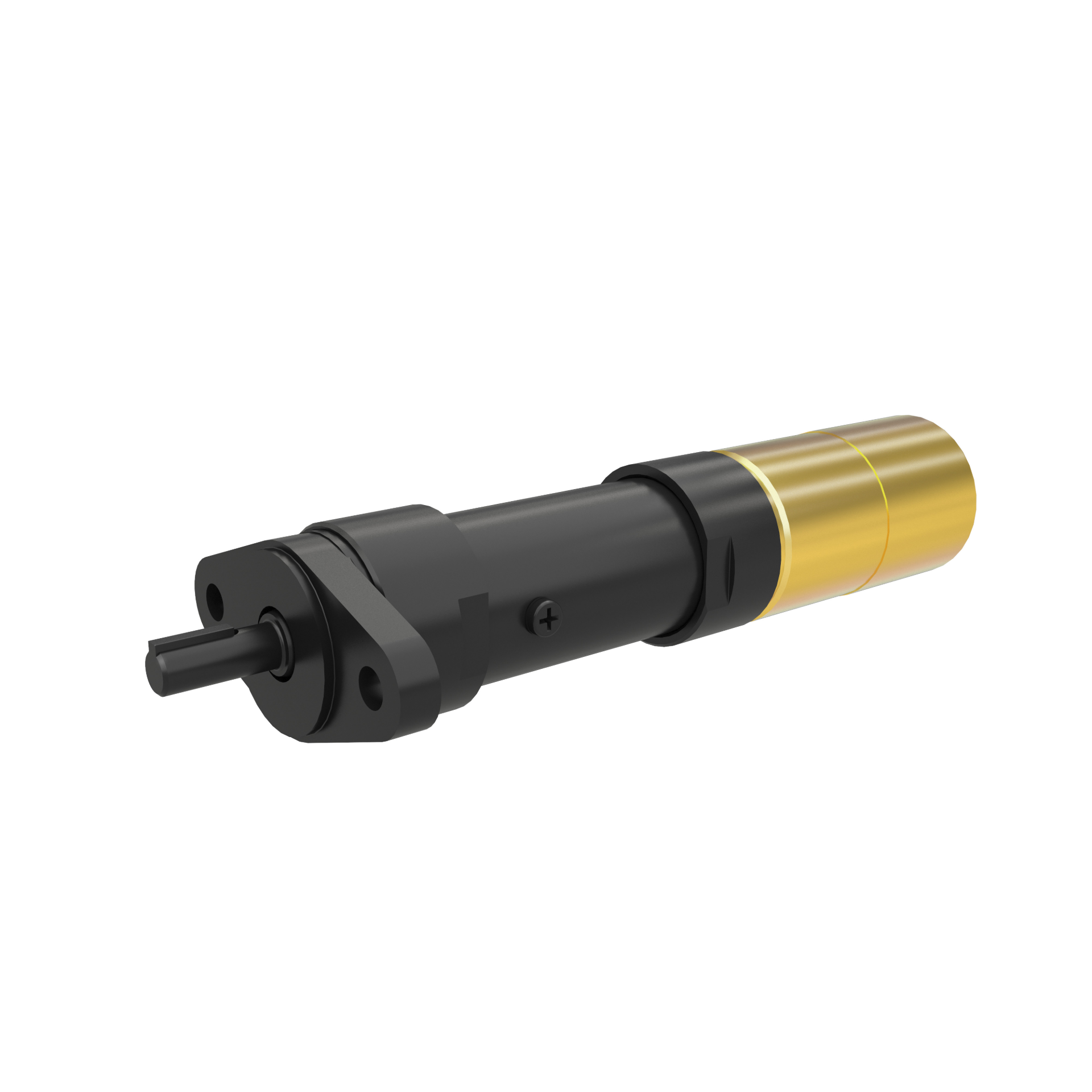

IR M004RHR083AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 190 RPM, 0.41 HP, 49.7 NM, Non-reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 18.5
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 83:1
• Gear Reduction: Triple
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 190
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 37
• Max Torque (in-lb): 440
• Max Torque (nm): 49.7
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 2.69
• Rated Power (hp): 0.41
• Rated Power (kW): 0.31
• Reversible: Non-reversible

• Speed at Max Power (rpm): 106
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 28
• Starting Torque (nm): 37.3

• Warranty: 1-year
