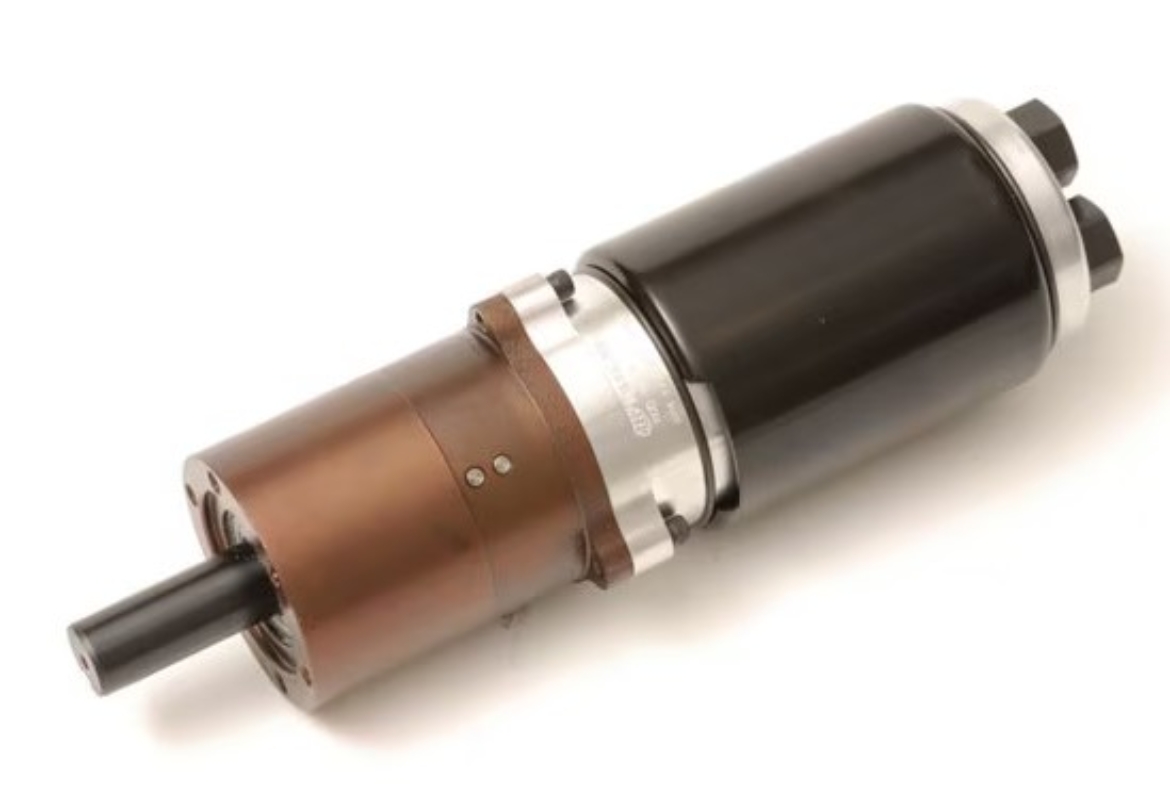

IR 4840U2
Inline Multi-Vane Air Motor, 1" Square Shaft, 170 RPM, 3 HP, 407 NM, Reversible
Features And Benefits:
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
- Ease of Service: Without having to worry about repair time, you'll be able to spend more time focused on the job.
Product Application and Uses:
Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
- Drive Length (in): 2.25
- Drive Size (in): 1
- Drive Type: Square
- Exhaust Location: Rear
- Finish: Black Oxide
- Gear Ratio: 53.5:1
- Gear Reduction: Double
- Gear Train: Planetary
- Max Free Speed (rpm): 170
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 300
- Max Torque (in-lb): 3602
- Max Torque (nm): 407
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 6
- Power Source: Air Powered
- Product Length (in): 11.38
- Product Width (in): 4
- Product Height (in): 4
- Product Weight (lb): 20.13
- Rated Power (hp): 3
- Rated Power (kW): 2.24
- Reversible: Reversible
- Speed at Max Power (rpm): 83
- Standards/Certifications: ATEX
- Starting Torque (ft-lb): 225
- Starting Torque (nm): 305
- Torque Output @ Max HP (ft-lb): 150
- Torque Output @ Max HP (nm): 203.37
- Warranty: 1-year
- Parts: 518-104
- Parts: R4901-102
