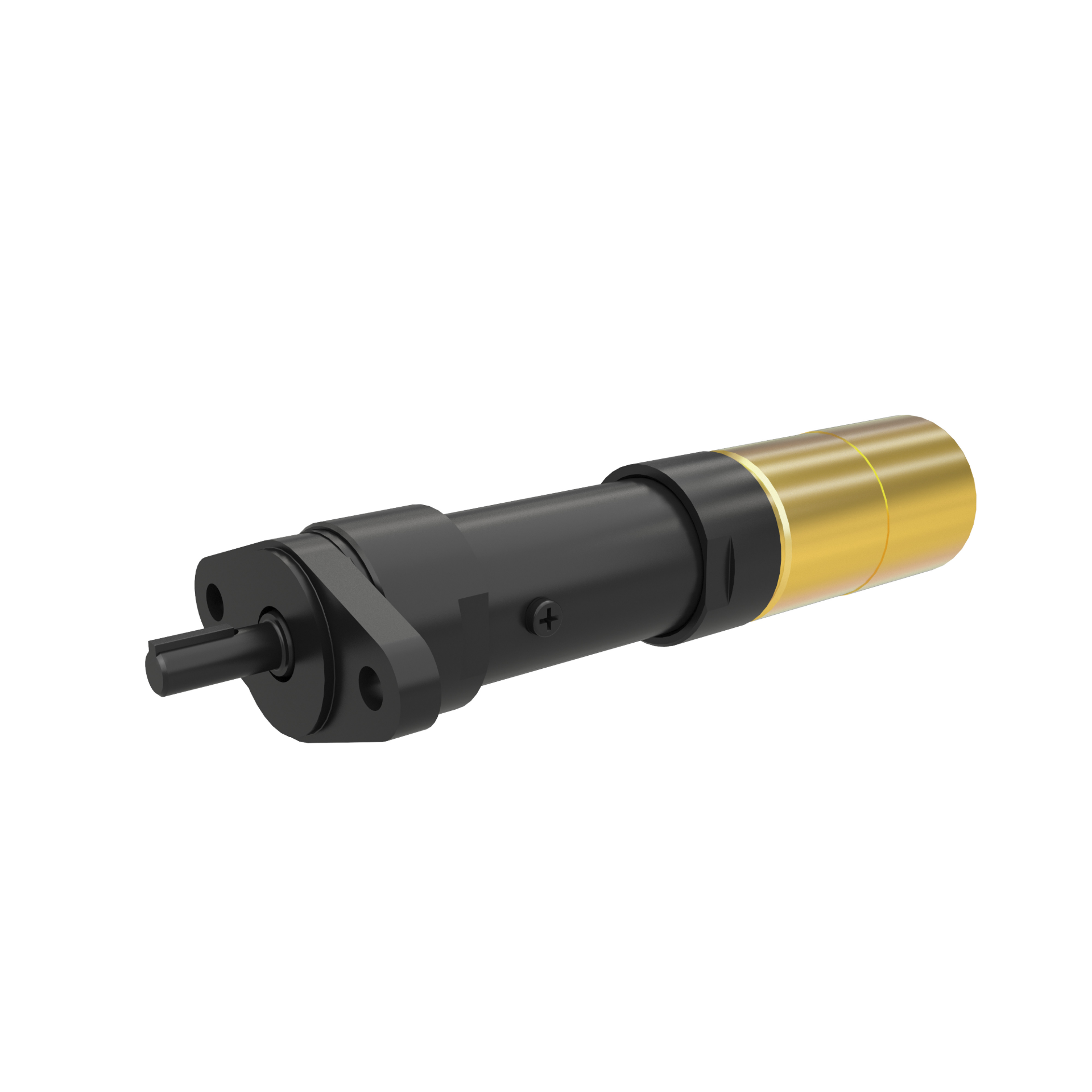

IR M004RVR033AR3
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 450 RPM, 0.34 HP, 16 NM, Reversible
The M004 Series comes with both face and flange mounting options for a variety of applications. This series can also support variable speeds and torques, as well as instant starting and reversing without overheating.
Features And Benefits
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments for a multitude of applications.
- Productive: Thanks to easy servicing, you never have to break for long to fix your equipment.
Air Consumption at Max HP (scfm): 18
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 33:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 450
Max Pressure (bar): 6.2
Max Torque (ft-lb): 12
Max Torque (in-lb): 142
Max Torque (nm): 16
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.38
Rated Power (hp): 0.34
Rated Power (kW): 0.25
Reversible: Reversible
Speed at Max Power (rpm): 225
Standards/Certifications: ATEX
Starting Torque (ft-lb): 8.9
Starting Torque (nm): 12
Warranty: 1-year
