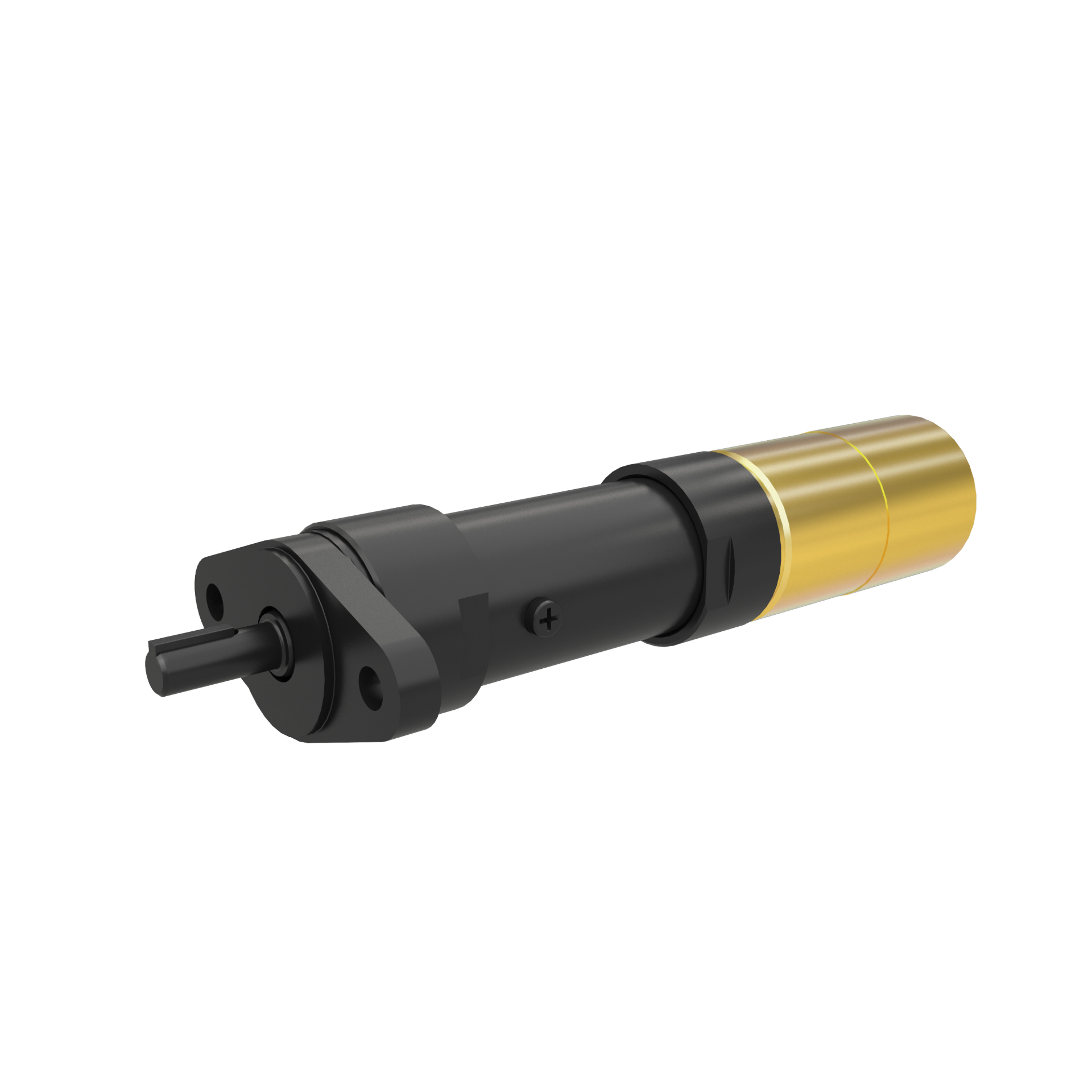

IR M004RHR050AR3
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 315 RPM, 0.41 HP, 30 NM, Non-reversible
Features And Benefits
- Safety: Meets ATEX Standards
Air Consumption at Max HP (scfm): 18.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 50:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 315
Max Pressure (bar): 6.2
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.69
Rated Power (hp): 0.41
Rated Power (kW): 0.31
Reversible: Non-reversible
Speed at Max Power (rpm): 175
Standards/Certifications: ATEX
Starting Torque (ft-lb): 17
Starting Torque (nm): 22.4
Warranty: 1-year
