IR M004RHR023AR3

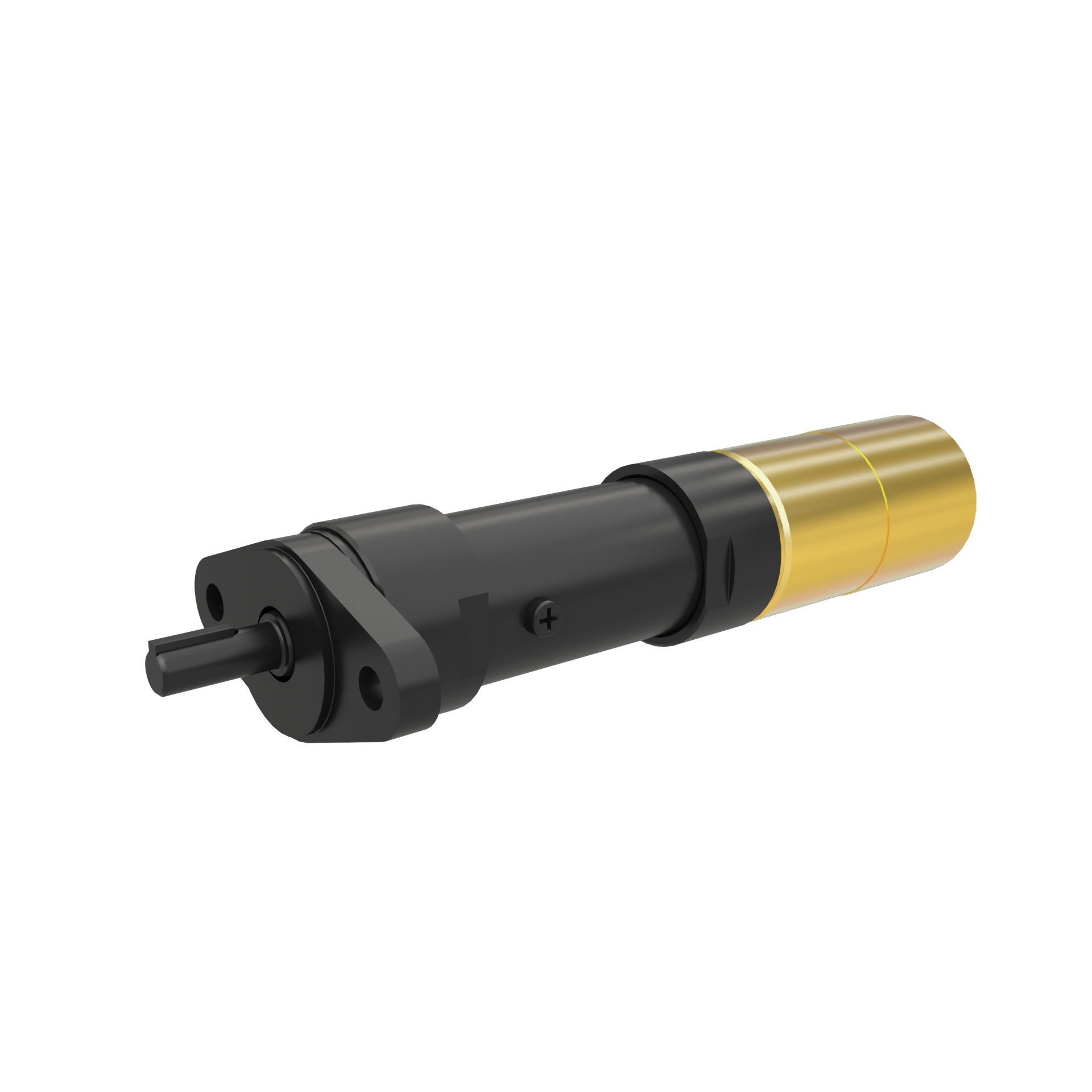

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 715 RPM, 0.44 HP, 14.6 NM, Non-reversible
Features And Benefits
- Safety: Meets ATEX Standards
Air Consumption at Max HP (scfm): 19
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 23:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 715
Max Pressure (bar): 6.2
Max Torque (ft-lb): 11
Max Torque (in-lb): 129
Max Torque (nm): 14.6
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.38
Rated Power (hp): 0.44
Rated Power (kW): 0.33
Reversible: Non-reversible
Speed at Max Power (rpm): 395
Standards/Certifications: ATEX
Starting Torque (ft-lb): 8.1
Starting Torque (nm): 11
Warranty: 1-year
