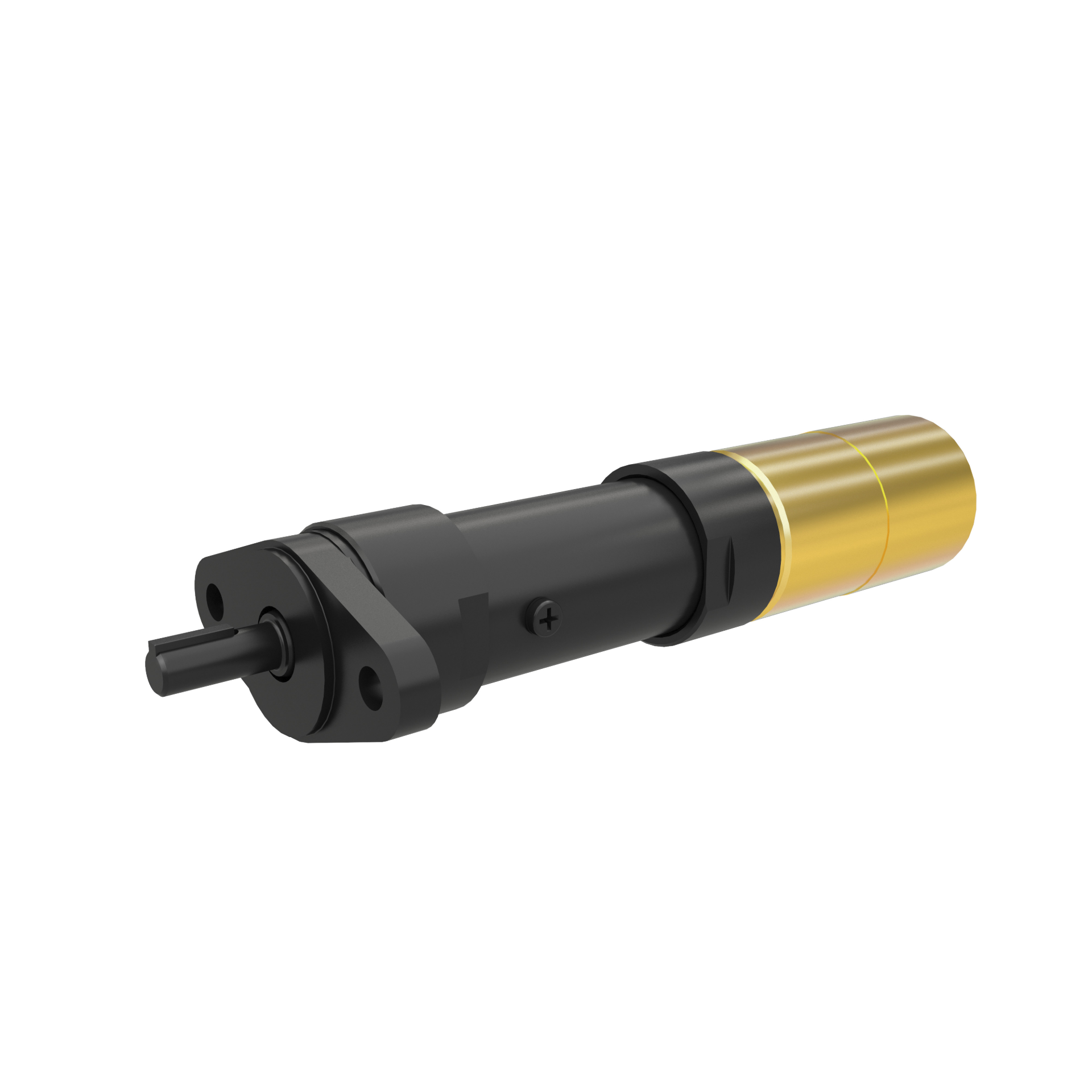

IR M004RHR000AR3
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 18000 RPM, 0.5 HP, 0.72 NM, Non-reversible
Features And Benefits
- Safety: Meets ATEX Standards
Air Consumption at Max HP (scfm): 20
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.5
Max Torque (in-lb): 6.4
Max Torque (nm): 0.72
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.06
Rated Power (hp): 0.5
Rated Power (kW): 0.37
Reversible: Non-reversible
Speed at Max Power (rpm): 10000
Standards/Certifications: ATEX
Starting Torque (ft-lb): 0.4
Starting Torque (nm): 0.54
Warranty: 1-year
