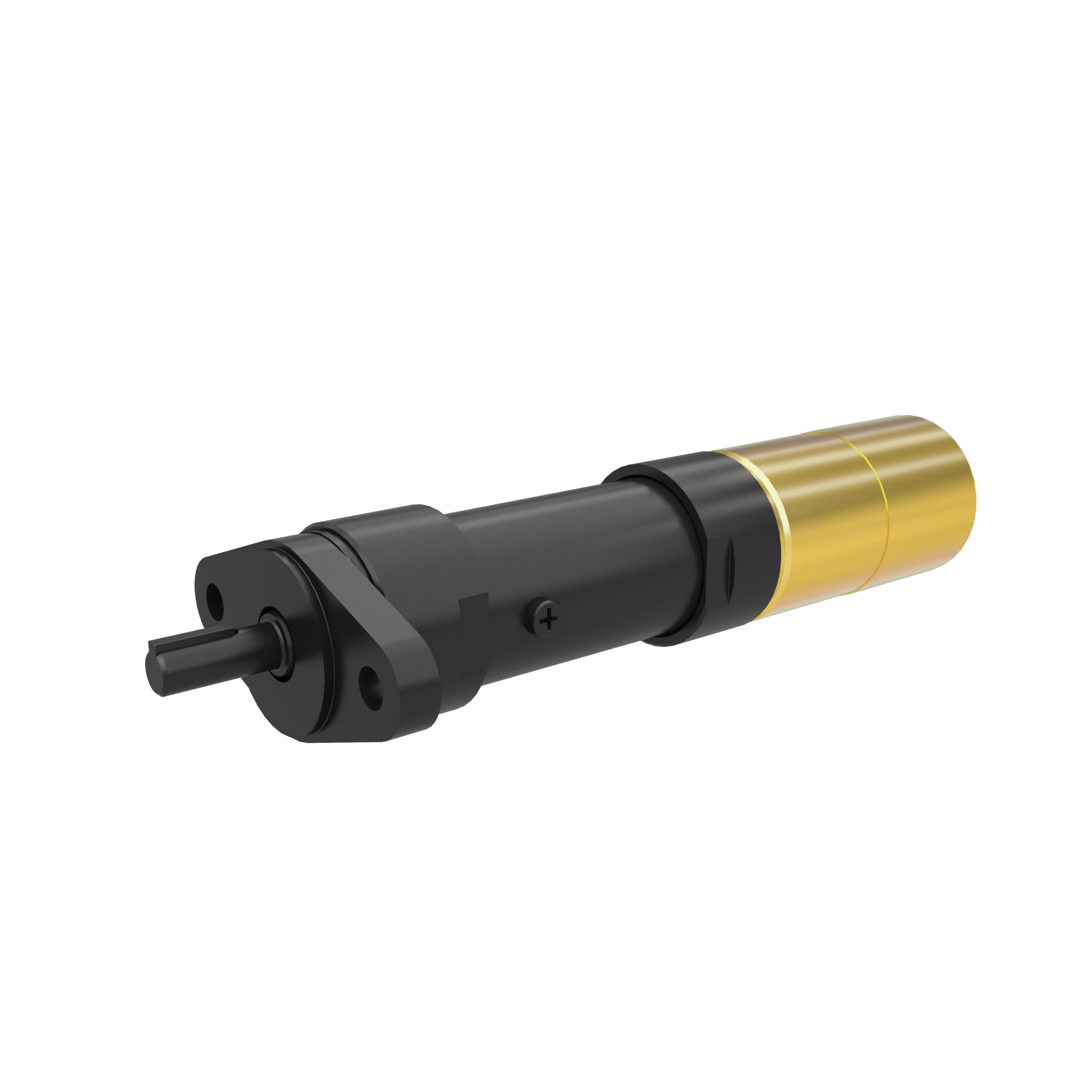

IR M002RVR101AR3
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 209 RPM, 0.11 HP, 12.2 NM, Reversible
Features And Benefits
- Safety: Meets ATEX Standards
Product Application and Uses: Applications limited to 12 lb-ft (16.3 Nm) torque.
Air Consumption at Max HP (scfm): 9.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 101:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 209
Max Pressure (bar): 6.2
Max Torque (ft-lb): 9.0
Max Torque (in-lb): 108
Max Torque (nm): 12.2
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 1.19
Rated Power (hp): 0.11
Rated Power (kW): 0.08
Reversible: Reversible
Speed at Max Power (rpm): 104
Standards/Certifications: ATEX
Starting Torque (ft-lb): 6.8
Starting Torque (nm): 9.19
Warranty: 1-year
