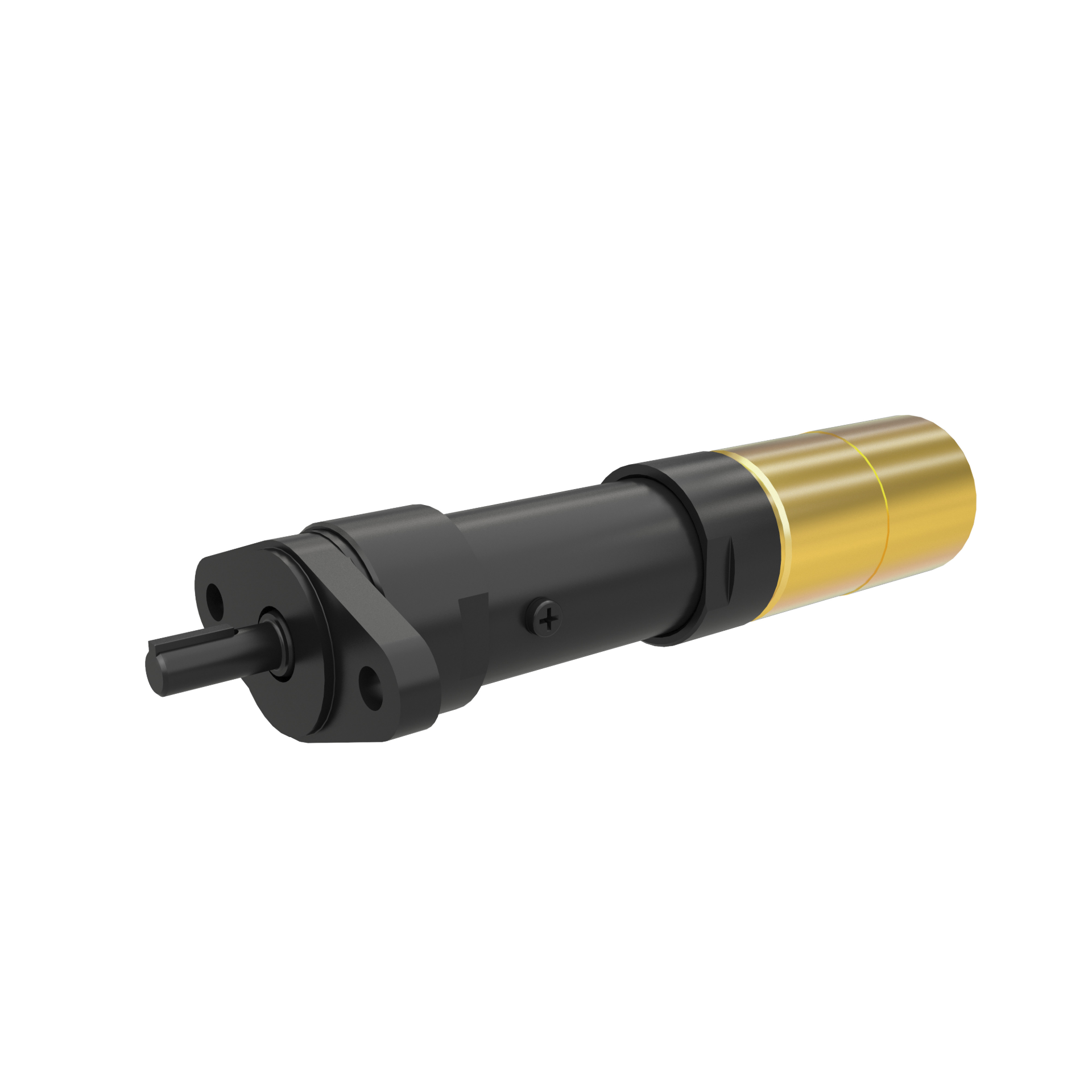

IR M002RHR159AR3
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 145 RPM, 0.16 HP, 23.7 NM, Non-reversible
Features And Benefits
- Safety: Meets ATEX Standards
Product Application and Uses: Applications limited to 12 lb-ft (16.3 Nm) torque.
Air Consumption at Max HP (scfm): 11.7
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 159:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 145
Max Pressure (bar): 6.2
Max Torque (ft-lb): 17
Max Torque (in-lb): 210
Max Torque (nm): 23.7
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 1.19
Rated Power (hp): 0.16
Rated Power (kW): 0.12
Reversible: Non-reversible
Speed at Max Power (rpm): 71
Standards/Certifications: ATEX
Starting Torque (ft-lb): 13
Starting Torque (nm): 17.7
Warranty: 1-year
