Monitor, Tlm, Ultrasonic, Cel

GG 25T461

MONITOR, TLM, ULTRASONIC, CEL

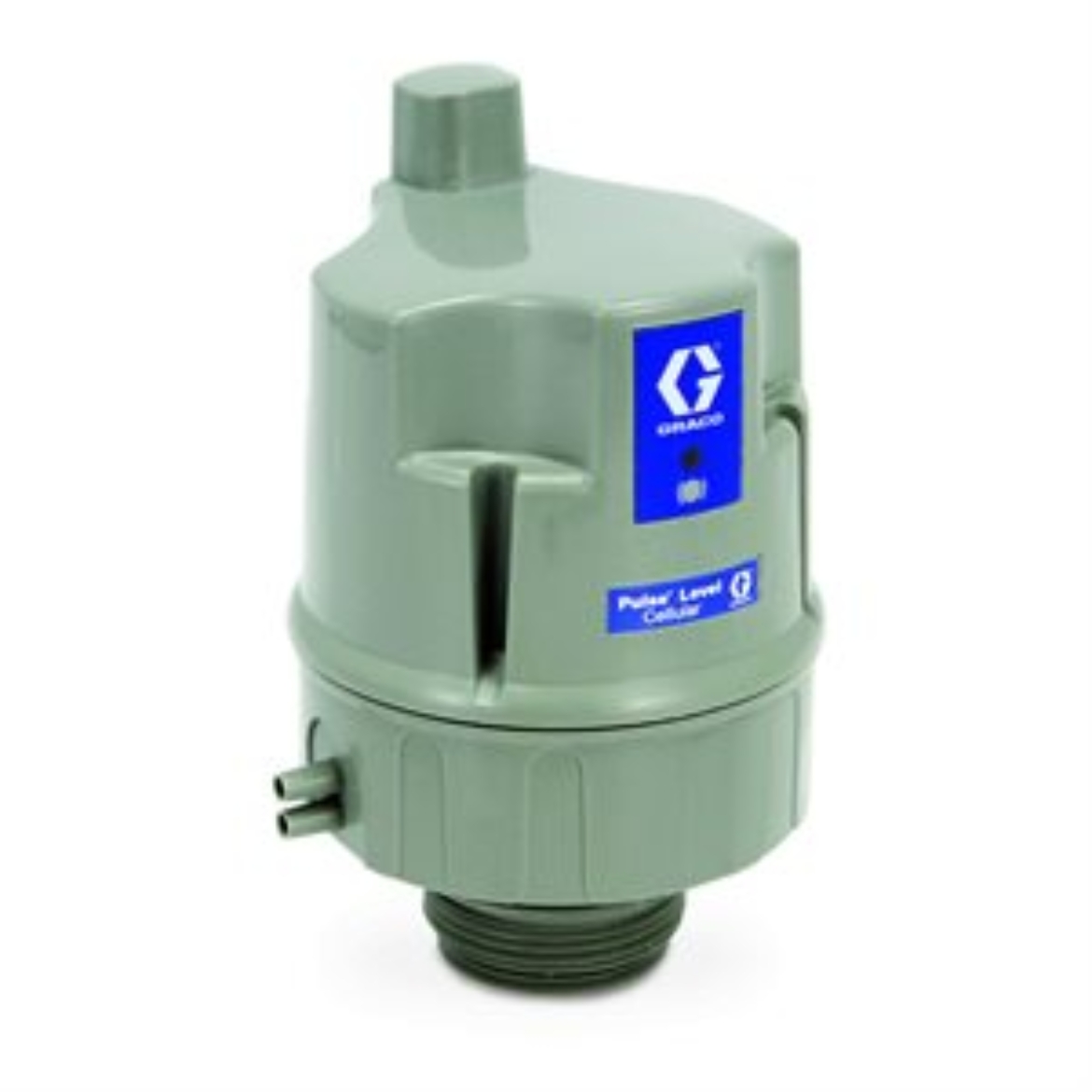

Graco 25T461 Pulse Level Ultrasonic Cellular Tank Monitor

You deliver more than fluids. You're delivering insight. Graco Pulse Level offers highly intuitive tank-level-visibility options to help you optimize deliveries, margins and customer service. Track tank levels, capture and apply data, and assign distribution routes quickly, accurately and confidently from the industry's leading fluid management expert. Pulse Level is compatible with 4G LTE networks, so you don't have to worry about investing in soon-to-be-obsolete technology.

• Cellular Communication - No need for local network connection.
• Long Battery Life - 5 year battery life with replaceable C batteries
• Ultrasonic Sensor - Measure tanks 13 ft tall.

• Model: Pulse

• Approvals: FCC, CE

• Battery Chemistry: Alkaline
• Battery Life (h): 5 years
• Battery Size: C

• Cylindrical Tank Maximum Height (ft): 13
• Cylindrical Tank Maximum Height (m): 4

• Cylindrical Tank Maximum Volume (gal): 999999
• Cylindrical Tank Maximum Volume (L): 999999

• Fluid Level Measurement Accuracy (%): +/-1 in. (+/- 2 cm)

• For Use With: Pulse Level

• Maximum Ambient Temperature ( degree F): 140

• Maximum Operating Temperature ( degree C): 50
• Maximum Operating Temperature ( degree F): 122

• Maximum RF Operating Temperature ( degree F): 122

• Maximum Storage Temperature ( degree C): 60
• Maximum Storage Temperature ( degree F): 140

• Minimum Ambient Temperature ( degree F): -22

• Minimum RF Operating Temperature ( degree F): 0
• Minimum Storage Temperature ( degree C): -30
• Minimum Storage Temperature ( degree F): -22

• Number of Batteries: 4

• Obround Tank Maximum Height (ft): 13
• Obround Tank Maximum Height (m): 4
• Obround Tank Maximum Length (ft): Any
• Obround Tank Maximum Length (m): Any
• Obround Tank Maximum Volume (gal): 999999
• Obround Tank Maximum Volume (L): 999999

• Overall Height (cm): 15
• Overall Height (ft): 0.49
• Overall Height (in): 5.9
• Overall Height (m): 0.015
• Overall Height (mm): 150
• Overall Length (cm): 9.3
• Overall Length (ft): 0.305
• Overall Length (in): 3.66
• Overall Length (m): 0.093
• Overall Length (mm): 93
• Overall Width (cm): 10.1
• Overall Width (ft): 0.333
• Overall Width (in): 4
• Overall Width (m): 0.0101
• Overall Width (mm): 101

• Product Type: Tank Level Monitor (TLM)
