Mongoose PVDF Metering Pump, 120 VAC, 17 GDP, 250 PSI

GG A21008

MONGOOSE PUMP, LCI-1A17-KPA-0

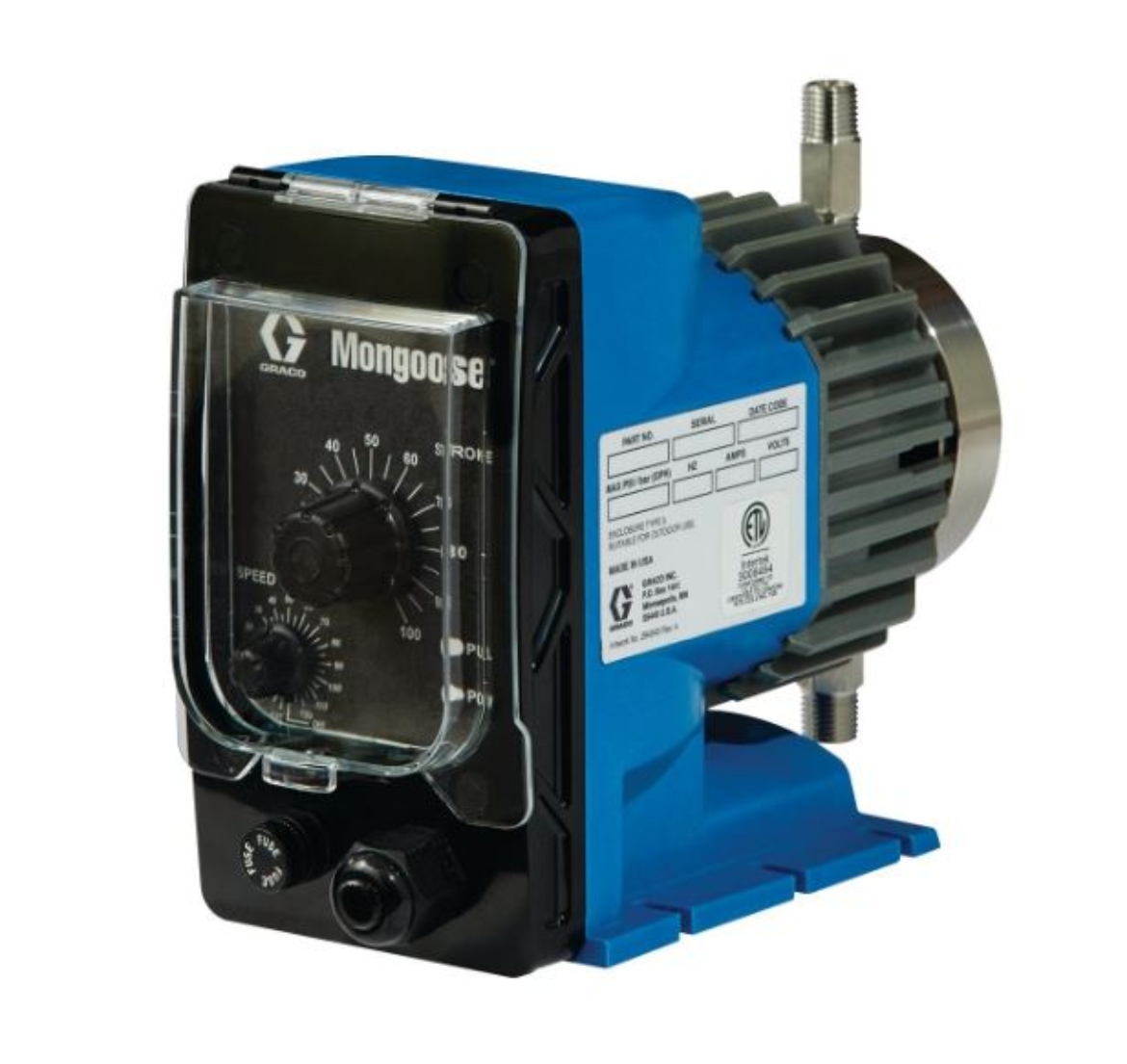

Graco A21008 Mongoose PVDF Metering Pump, 120 VAC, 17 GDP, 250 PSI

Graco Mongoose chemical metering pumps are suitable for dispensing chemicals for a variety of diverse markets such as oil and natural gas, mining, agriculture, landscaping and lawn maintenance, waste water, and car wash. These pumps can also be used in chemical dosing maintenance applications including cooling towers, boilers, and plating, as well as a multitude of other uses.

• Overload Protection
  • Self resetting thermal overload prevents over heating
  • Over current protection
  • Easily replaceable fuse for overcurrent
  • No longer a throwaway pump
• Prime/Air Bleed Port
  • No need to remove fluid section to prime pump
  • Quick and easy priming
• Other Features
  • Manual stroke adjustment
  • Splash cover over controls
  • NEMA 4x style enclosure
  • UL and CSA certified
  • Ball/seat check valves

• Model: Mongoose

• Air Inlet Size (in): 1/8

• Compatible Material: Corrosion Inhibitors, Methanol, Scavengers

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Section Material: PVDF (Kynar)

• Material: PVDF

• Maximum Amperage (A): 0.5

• Maximum Cycle Rate (CPM): 145

• Maximum Flow Rate (GPD): 17

• Maximum Fluid Pressure (bar): 17.2
• Maximum Fluid Pressure (kPa): 1720
• Maximum Fluid Pressure (MPa): 1.72
• Maximum Fluid Pressure (psi): 250

• Maximum Fluid Pressure (bar): 17.2
• Maximum Fluid Pressure (kPa): 1720
• Maximum Fluid Pressure (MPa): 1.72
• Maximum Fluid Pressure (psi): 250

• Minimum Amperage (A): 0.1

• Power Source: Electric
