Monark Transfer Pump, 5:1

GG 902147

MONARK TRANSFER PUMP, 5:1

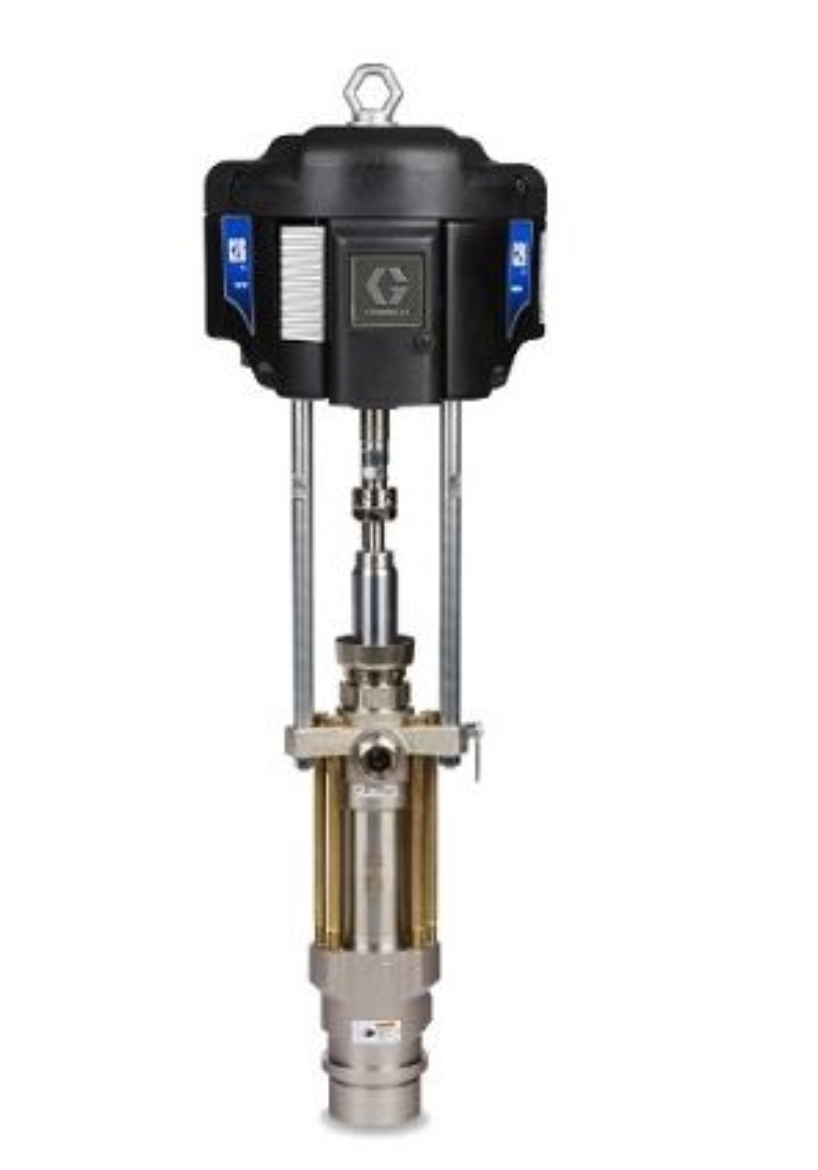

Graco 902147 5:1 Ratio Stainless Steel Monark Pump

Designed for high production applications, Monark pumps provide uniform and easily controlled delivery with its reliable Monark air motor.

• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Fluid return stanchion for circulation back to the pump
• Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

• Model: Monark

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Stainless Steel

• Maximum Air Consumption (SCFM): 8.2
• Maximum Air Inlet Pressure (bar): 8.2
• Maximum Air Inlet Pressure (kPa): 827
• Maximum Air Inlet Pressure (psi): 120

• Maximum Flow Rate (GPM): 2.5
• Maximum Flow Rate (L/min): 9.5

• Maximum Working Pressure (bar): 41
• Maximum Working Pressure (kPa): 4100
• Maximum Working Pressure (MPa): 4.1
• Maximum Working Pressure (psi): 600

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 5:1
