MONARK PUMP, 2:1

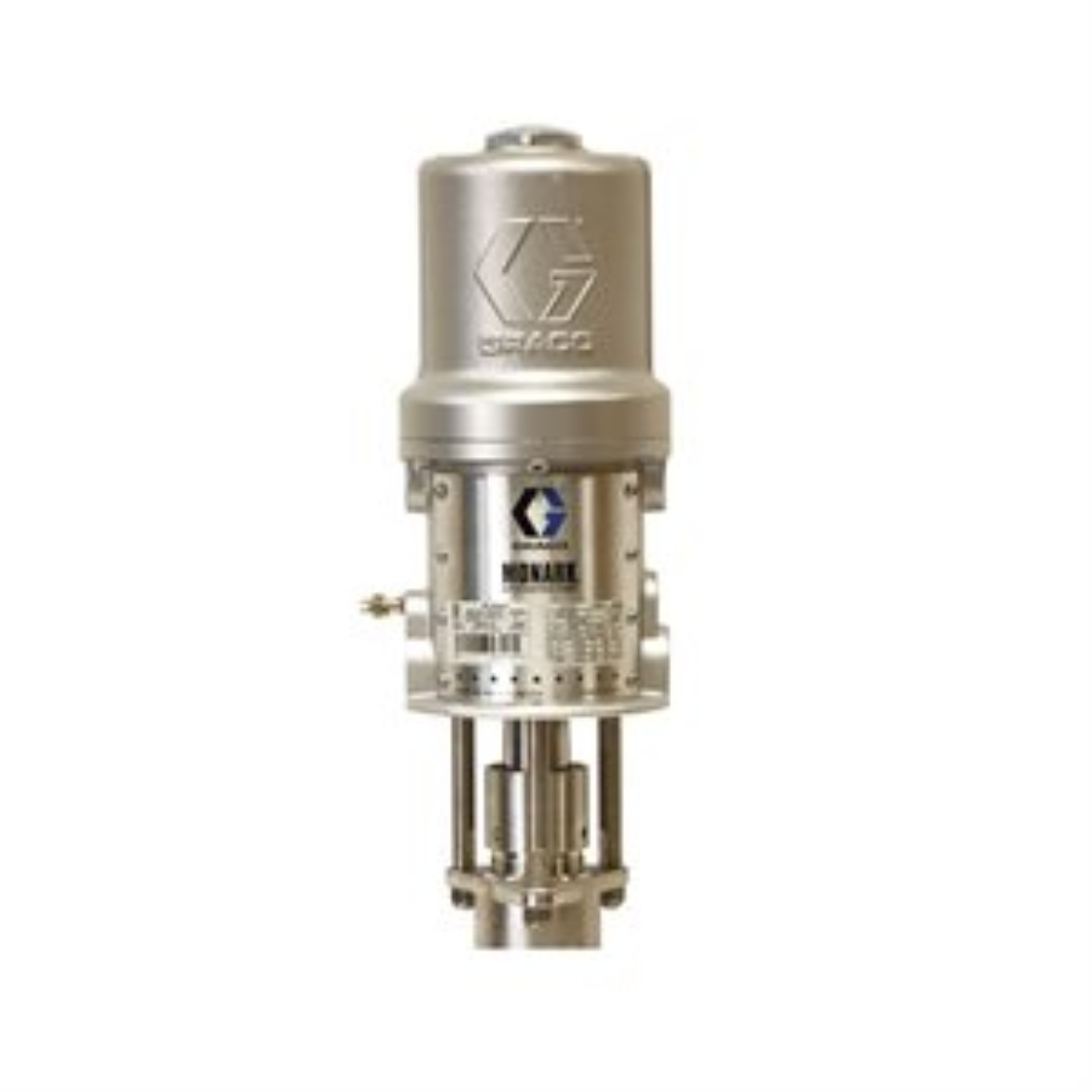

Graco 223186 Monark 2:1 Pneumatic 2-Ball Piston Pump, CS, Stubby Length

Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, Solvent borne and waterborne fluids, stains, lacquers and varnishes.

• Drum and stubby length models available for mounting and application flexibility
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids
• Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

• Model: Monark
• Series: 2-Ball

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPSM

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stubby Length

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 5.4
• Maximum Flow Rate (L/min): 20.44

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 41
• Maximum Working Pressure (kPa): 4100
• Maximum Working Pressure (MPa): 4.1
• Maximum Working Pressure (psi): 600

• Portable: Non-Portable

• Pump Ratio: 2:1
