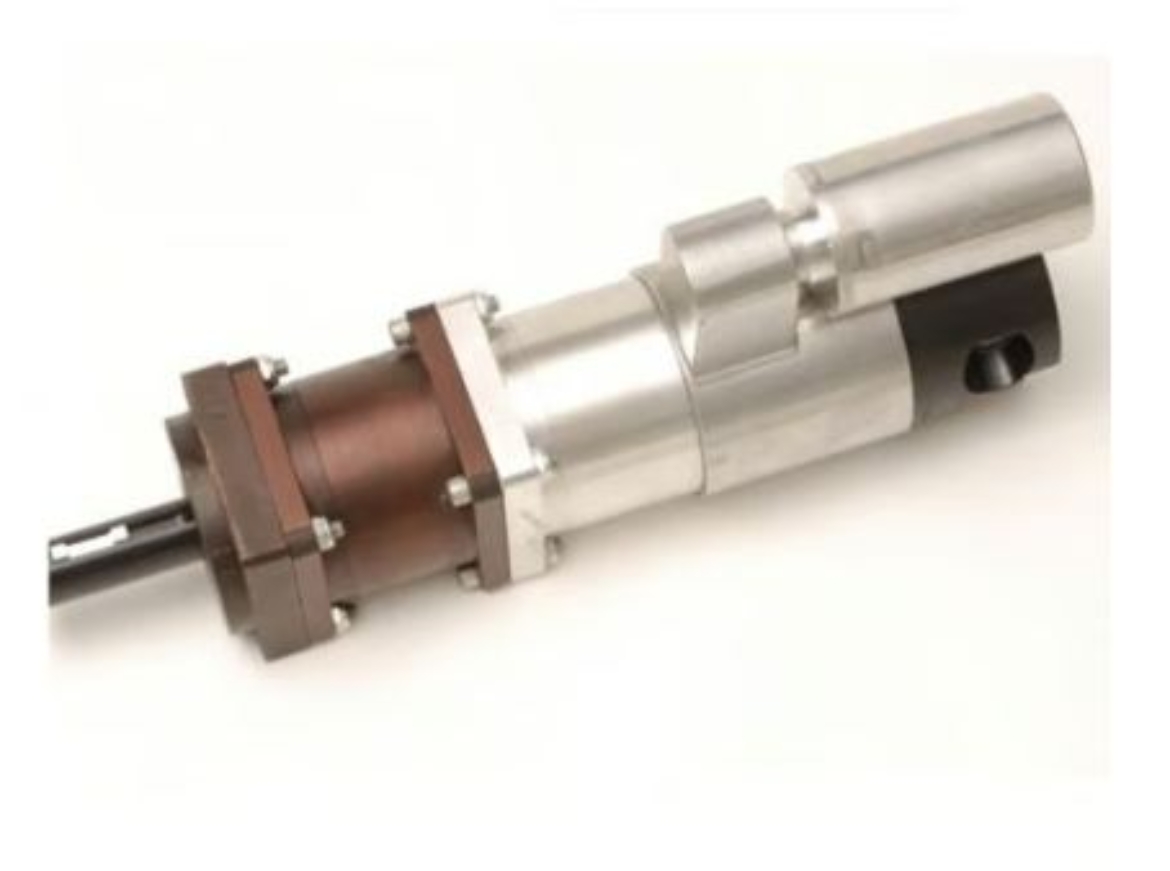

AA 8203-4A-S
Forward Rotation Milling Motor, 3/4" Round Collet, 2000 RPM, 2HP, 24.4 Nm, Non-reversible
Description: The inline planetary gear and vane motor allows the 44-Series Milling Motors to handle high torque applications with ease.
Features And Benefits:
- Ease of Service: Without having to spend time repairing your tools, your productivity can soar.
- Durable: Able to withstand harsh conditions, these milling motors are ones you can count on. Ideal for increased side loading applications such as milling and sawing.
- Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.
- Air Consumption (cfm): 95
- Air Inlet: 3/8" NPT
- Air Pressure (psi): 90
- Drive Size (in): 3/4
- Drive Type: Collet
- Exhaust Location: Rear- 360 adjustable
- Finish: Black Oxide
- Gear Reduction: Single
- Gear Train: Planetary
- Max Free Speed (rpm): 2000
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 18
- Max Torque (in-lb): 216
- Max Torque (nm): 24.4
- Motor: Rotary Vane
- Motor: Milling
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 4
- Power Source: Air Powered
- Product Length (in): 11.69
- Product Width (in): 5.44
- Product Weight (lb): 13.82
- Rated Power (hp): 2
- Rated Power (kW): 1.49
- Reversible: Non-reversible
- Sound Level dB(A): 80
- Speed at Max Power (rpm): 1050
- Standards/Certifications: ATEX
- Torque Output @ Max HP (ft-lb): 10.0
- Torque Output @ Max HP (nm): 13.5
- Warranty: 1-year
