Mhh Valve, Assembly 12T

GG 562687

MHH VALVE, ASSY 12T

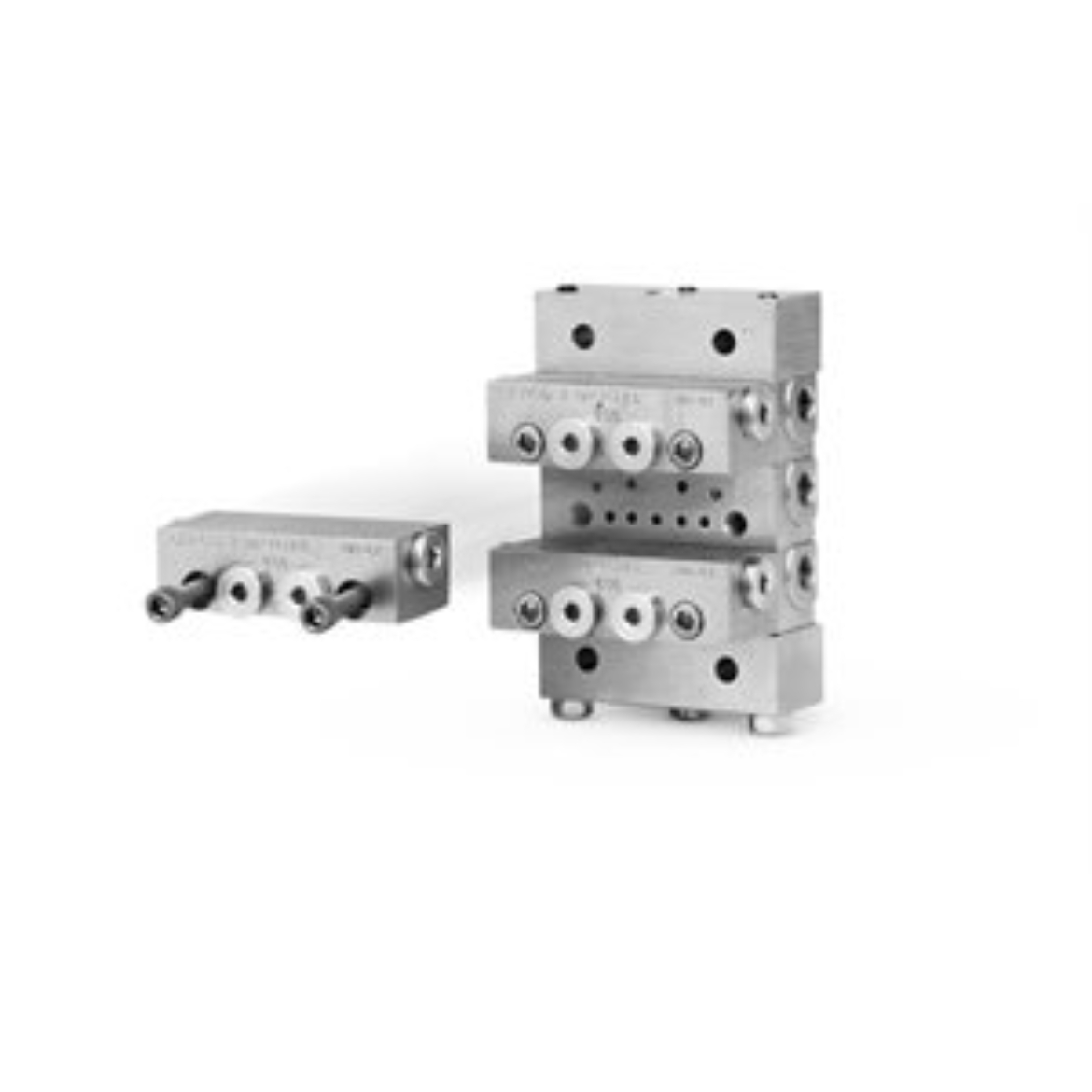

Graco 562687 Manzel MHH Modular Divider Valve .012 Twin

Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances.

• Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
• Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event
• Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
• Lubriquip part number 106-000-615

• Model: Manzel
• Series: MHH

• Application: In-Plant Machinery, Compressor Equipment

• Compatible Material: Oil, Grease

• Cycle Indicator: Cycle Pin

• Discharge Per Piston Stroke (in cu ): 0.012

• Divider Valve Series: MHH

• Inlet Size (in): 1/4 - 18, 7/16 - 20

• Inlet Thread Gender: Female
• Inlet Thread Type: NPS, SAE

• Material: Steel

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 517
• Maximum Working Pressure (kPa): 51700
• Maximum Working Pressure (psi): 7500

• Number of Outlets: 2

• Outlet Size (in): 1/8 - 27, 7/16 - 20
• Outlet Thread Gender: Female
• Outlet Thread Type: NPS, SAE
