Mgo Valve, Assembly Mgo 600S Sae

GG 562573

MGO VALVE, ASSY MGO 600S SAE

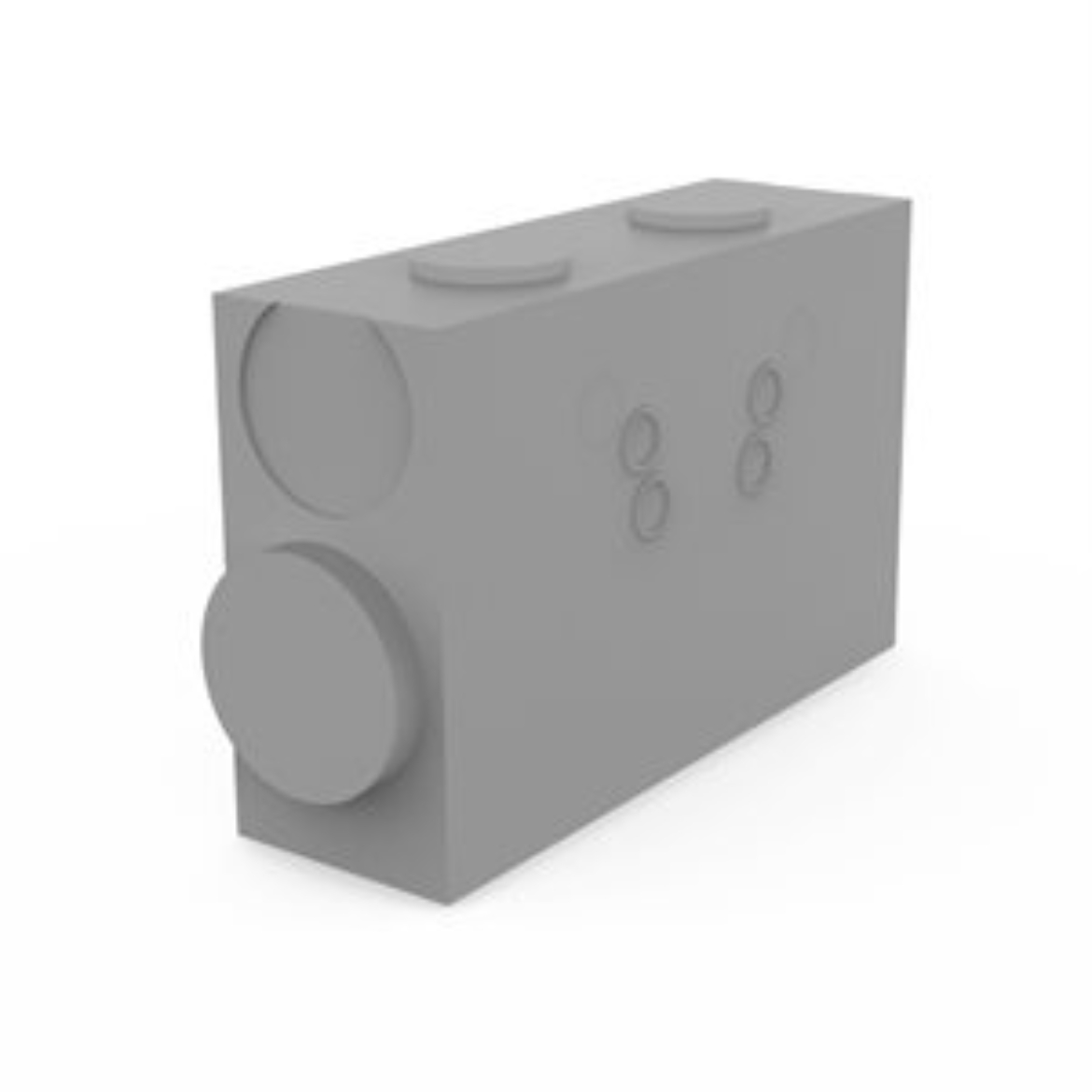

Graco 562573 Trabon MGO Modular Divider Valve - MGO-600S - 1.200 in cu (19.7 cm cu )

While critical bearings are hard at work on your largest machine tools, Gracos line of centralized and automatic lubrication systems is delivering precise amounts of lubricant at frequent intervals to every lube point - even in hard to reach areas.

• Lubricates large bearings
• Delivers up to 1.2 cubic inches (19.7 cubic centimeters) per cycle and has a wide range of accessories to monitor critical lubrication points
• Largest output available with 22 outlets and 11 working sections
• TFE standard seals allow for maximum fluid compatibility and high temperature use
• Lubriquip part number 007-600-031

• Model: Trabon
• Series: MGO

• Application: In-Plant Machinery

• Compatible Material: Oil, Grease

• Cycle Indicator: None

• Discharge Per Piston Stroke (in cu ): 1.200

• Divider Valve Series: MGO

• Material: Carbon Steel

• Maximum Cycle Rate (cycles/min): 185

• Maximum NLGI Grade: #2

• Maximum Operating Temperature ( degree C): 176

• Maximum Working Pressure (bar): 413.7
• Maximum Working Pressure (kg/cm 2): 421.8
• Maximum Working Pressure (kPa): 41370
• Maximum Working Pressure (psi): 6000

• Minimum Working Pressure (psi): 200

• Number of Outlets: 1

• Outlet Size (in): 7/8
• Outlet Thread Gender: Female
• Outlet Thread Type: SAE ORB
