GG 246652
METER, HELI GEAR, HI RESOLUTION

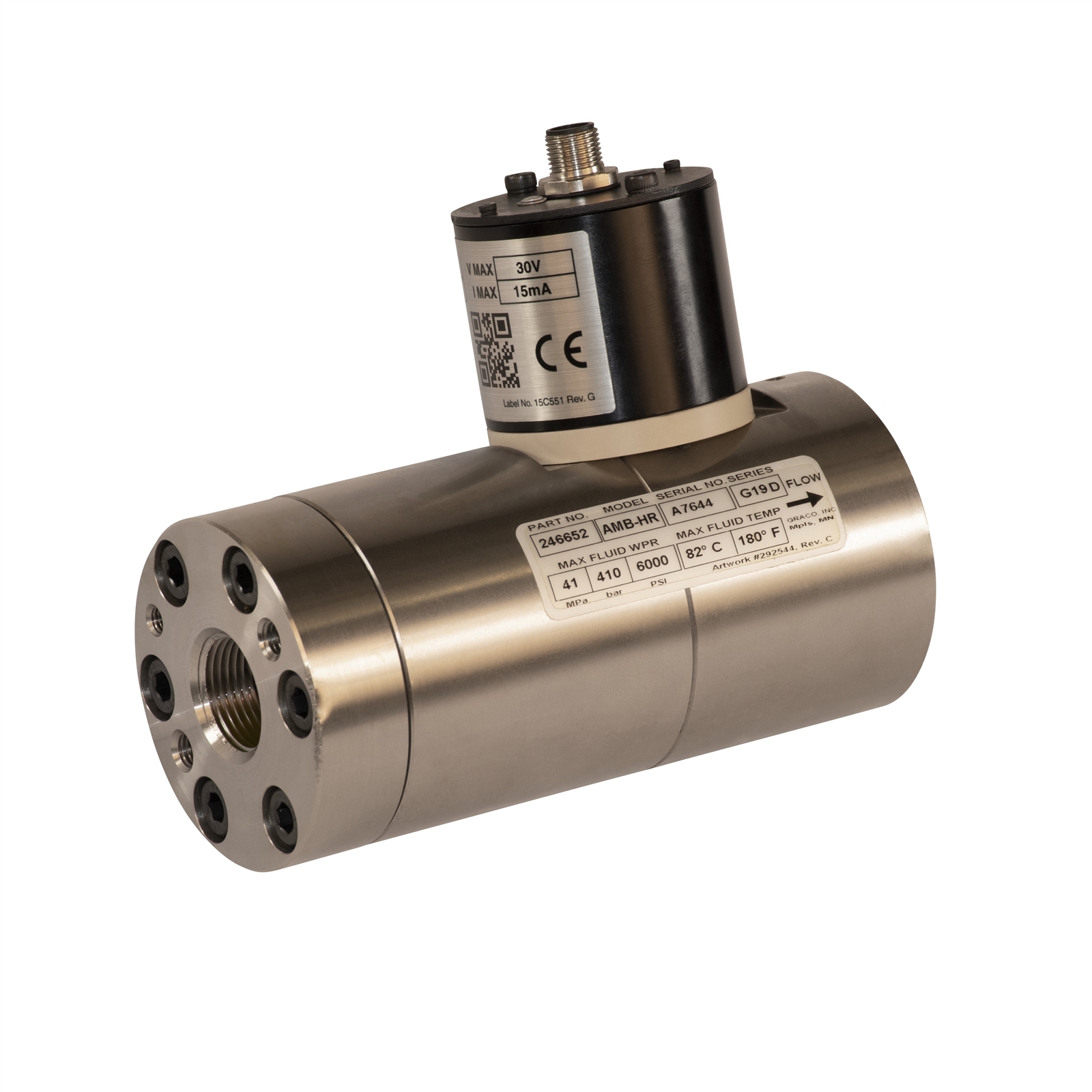

Graco 246652 High Resolution Helical Gear Flow Meter
The High Resolution Helical Gear Flow Meter is used for precise and accurate flow rate measurements of a variety of materials.
- Positive displacement, helical gear flow meter
- Designed to detect a wide range of flow rates
- Highly accurate, even with low flow rates
- CE-marked for easy integration
- Compatible Material: Solvent borne Paints, Solvent borne Resins, Oil, Catalysts
- Flow Control Type: Regulation
- For Use With: Proportioning Equipment
- Includes: Flow Meter, Sensor
- Inlet Size (in): 3/4
- Inlet Thread Gender: Female
- Inlet Thread Type: NPT
- Maximum Flow Rate (cc/min): 7550
- Maximum Fluid Pressure (bar): 410
- Maximum Fluid Pressure (kPa): 41000
- Maximum Fluid Pressure (psi): 6000
- Maximum Fluid Temperature (°C): 82
- Maximum Fluid Temperature (°F): 180
- Maximum Fluid Pressure (bar): 410
- Maximum Fluid Pressure (kPa): 41000
- Maximum Fluid Pressure (psi): 6000
- Maximum Fluid Temperature (°C): 82
- Maximum Fluid Temperature (°F): 180
- Maximum Viscosity (cP): 1000000
- Maximum Working Pressure (bar): 410
- Maximum Working Pressure (kPa): 41000
- Maximum Working Pressure (MPa): 41
- Maximum Working Pressure (psi): 6000
- Minimum Flow Rate (cc/min): 190
- Minimum Viscosity (cP): 30
- Overall Height (cm): 14.2
- Overall Height (in): 5.6
- Overall Height (mm): 142
- Overall Length (cm): 15.5
- Overall Length (in): 6.1
- Overall Length (mm): 155
