GG 24V052
METER, PRESET, 60 QRT, RIG, NPT

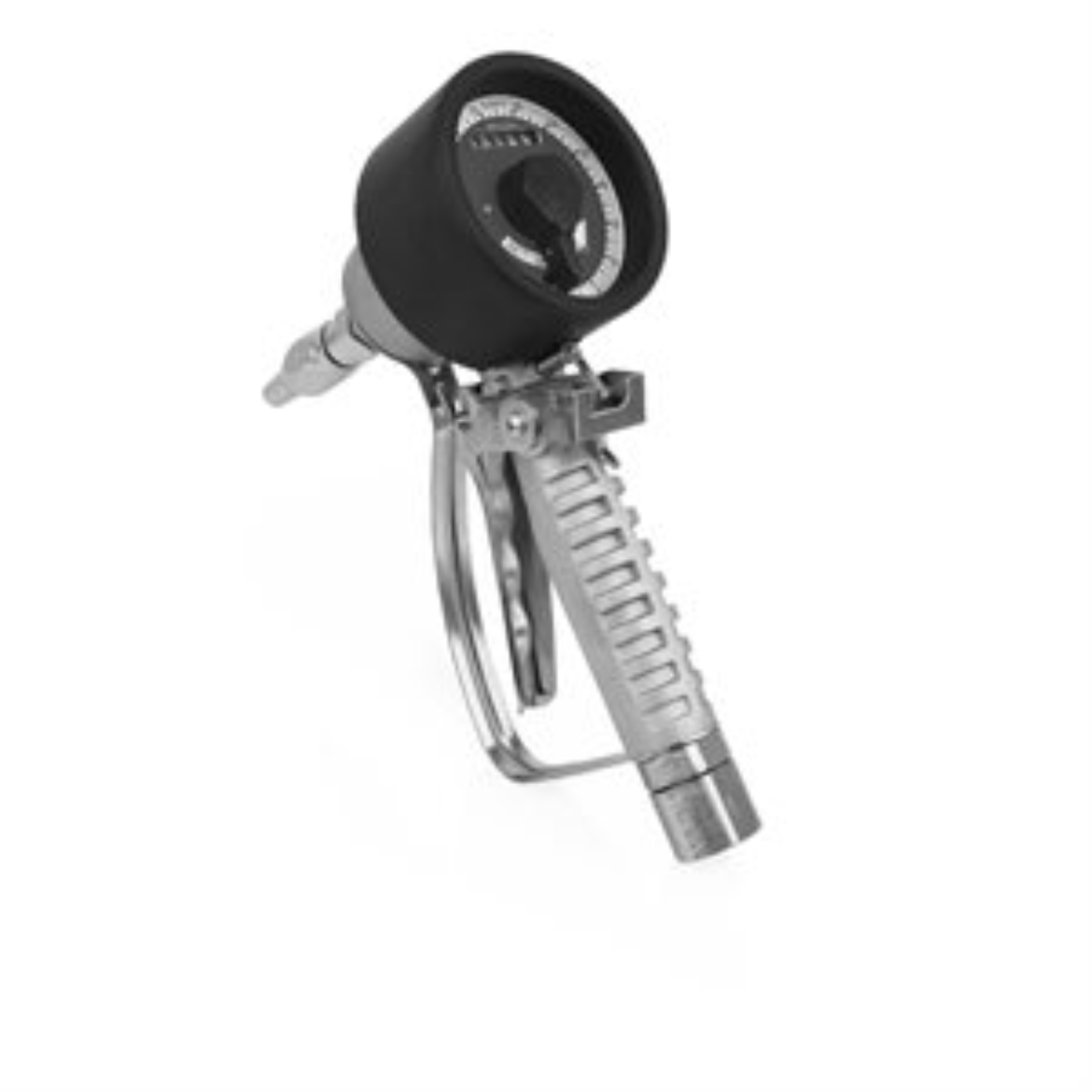

Graco 24V052 60 Quart Preset Meter - Includes Nozzle/Extension Kit - Short Rigid Extension - NPT
Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).
Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.
- Preset meter automatically shuts-off flow when preset quantity has been dispensed
- Impact-resistant shroud resists against scratches and protects knob and dial from damage
- Dial and face design made simple, easy to read and set
- Built-in totalizer to manage material usage
- Inlet 1/2 in. NPT with swivel
- Measures fluid in quarts
- Features short extension with oil nozzle
- 5 Year Warranty
- Compatible Material: Oil, Antifreeze
- Includes: Bare Meter, Nozzle Kit
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Maximum Flow Rate (GPM): 8
- Maximum Flow Rate (L/min): 30
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 160
- Maximum Working Pressure (bar): 103.4
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±1%
- Meter Pressure Loss (bar): 2
- Meter Pressure Loss (kPa): 200
- Meter Pressure Loss (psi): 30
- Metering Gun Weight (kg): 1.58
- Metering Gun Weight (lb): 3.5
- Minimum Operating Temperature (°C): -45
- Minimum Operating Temperature (°F): -50
- Outlet Size (cm): 1.27
- Outlet Size (in): 0.75
- Outlet Size (mm): 12.7
- Outlet Thread Type: ORB
- Recommended Environment: Indoor, Outdoor
