Meter, Electronic Pulse, Efc

GG 236763

METER, ELECTRONIC PULSE, EFC

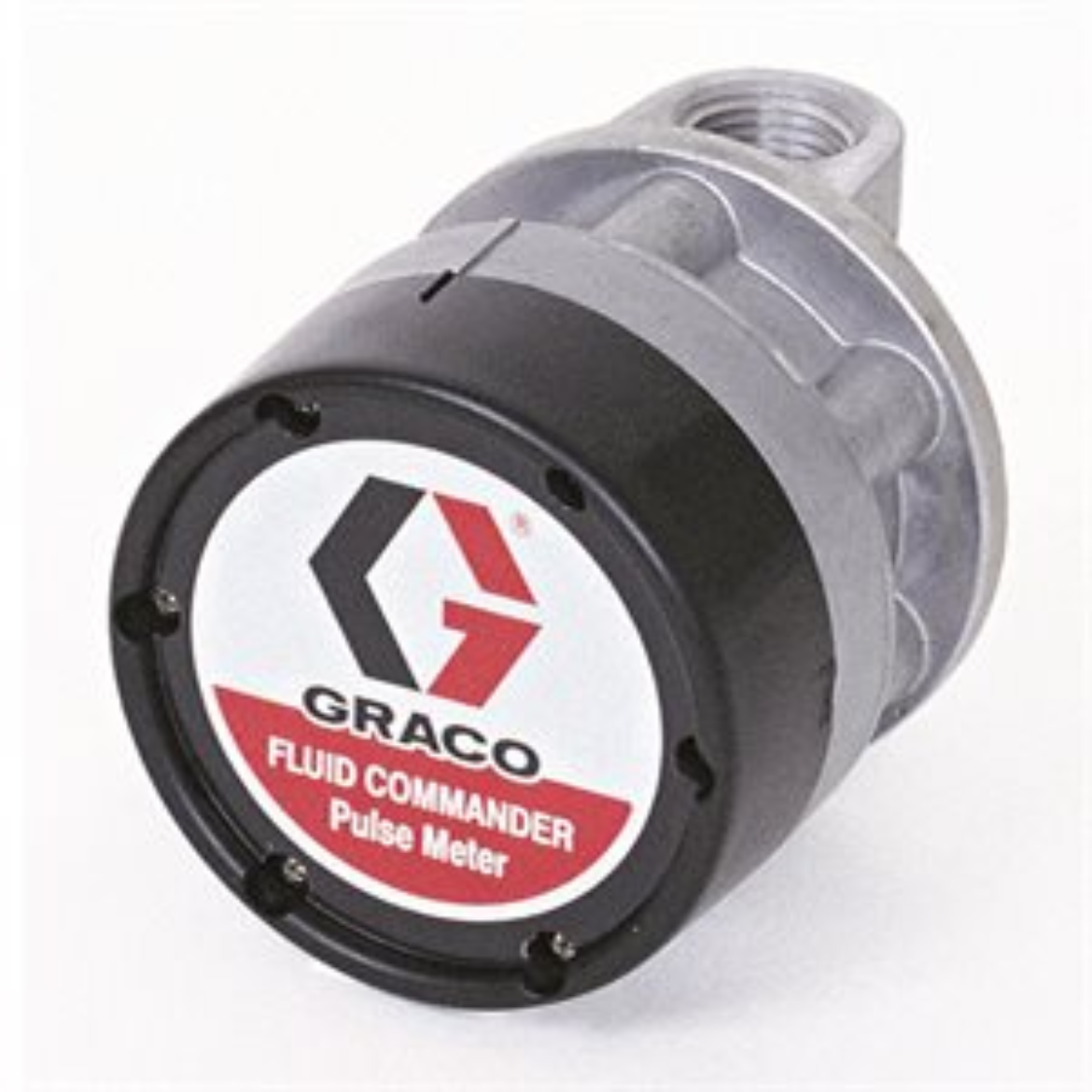

Graco 236763 In-Line Meter with Pulse Output (Pints, Quarts, Gallons)

Accurately measure dispenses of petroleum- and synthetic-based oils (motor, gear and ATF.)

• Provide pulse signal output.
• Measures in pints, quarts, or gallons.

• For Use With: Fluid Commander

• Inlet Size (cm): 1.27
• Inlet Size (in): 0.5
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 12
• Maximum Flow Rate (L/min): 45.6

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500
