GG 25C841
METER, ELECTRONIC, IM20, 3/4 NPT

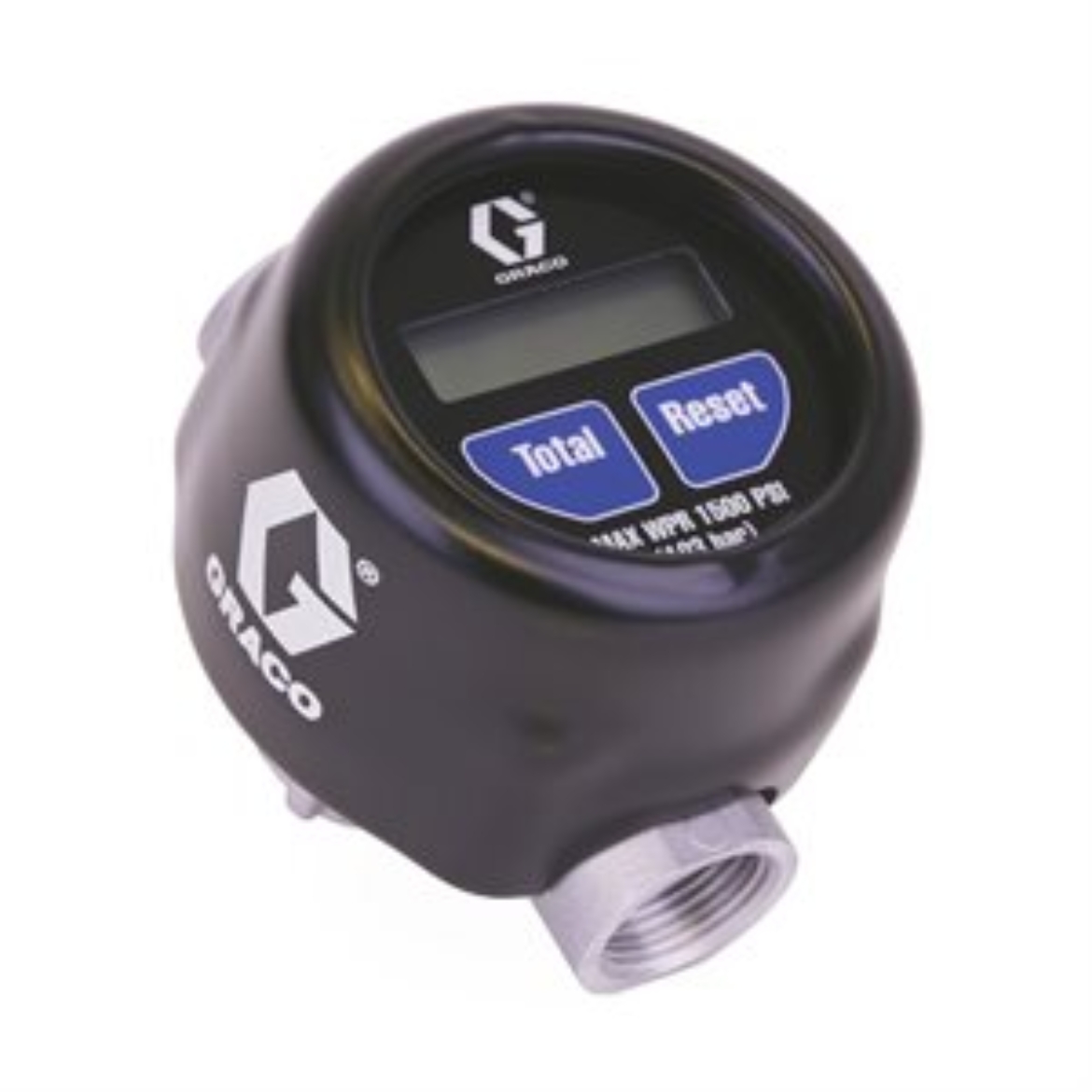

Graco 25C841 IM20 Med/High Pressure, Med/High Flow In-Line Meter for Petroleum- and Synthetic-Based Oils and Antifreeze
Graco&prime, s IM20 in-line meter is designed to last and is capable of measuring a variety of fluids up to 20 gpm (75.7 lpm) flow rates. The IM20 is backed by our robust warranty and features upgraded electronics and an easy-to-read LCD screen with simple operator controls that measures in quarts, gallons, pints and liters.
- High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).
- Proven in Harsh Conditions - IP69K-rated meter. Electronics are safe from pressure washing and dusty environments.
- Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries.
- For Use With: Petroleum-Based Oils, Synthetic-Based Oils, Antifreeze
- Inlet Size (cm): 1.905
- Inlet Size (in): 3/4
- Inlet Size (mm): 19.05
- Maximum Flow Rate (GPM): 20
- Maximum Working Pressure (bar): 103
- Maximum Working Pressure (kPa): 10300
- Maximum Working Pressure (MPa): 10.3
- Maximum Working Pressure (psi): 1500
- Minimum Flow Rate (GPM): 0.25
- Outlet Size (cm): 1.905
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Outlet Thread Type: NPT
