GG 127650
METER, DEF, W/SST BREAKAWAY

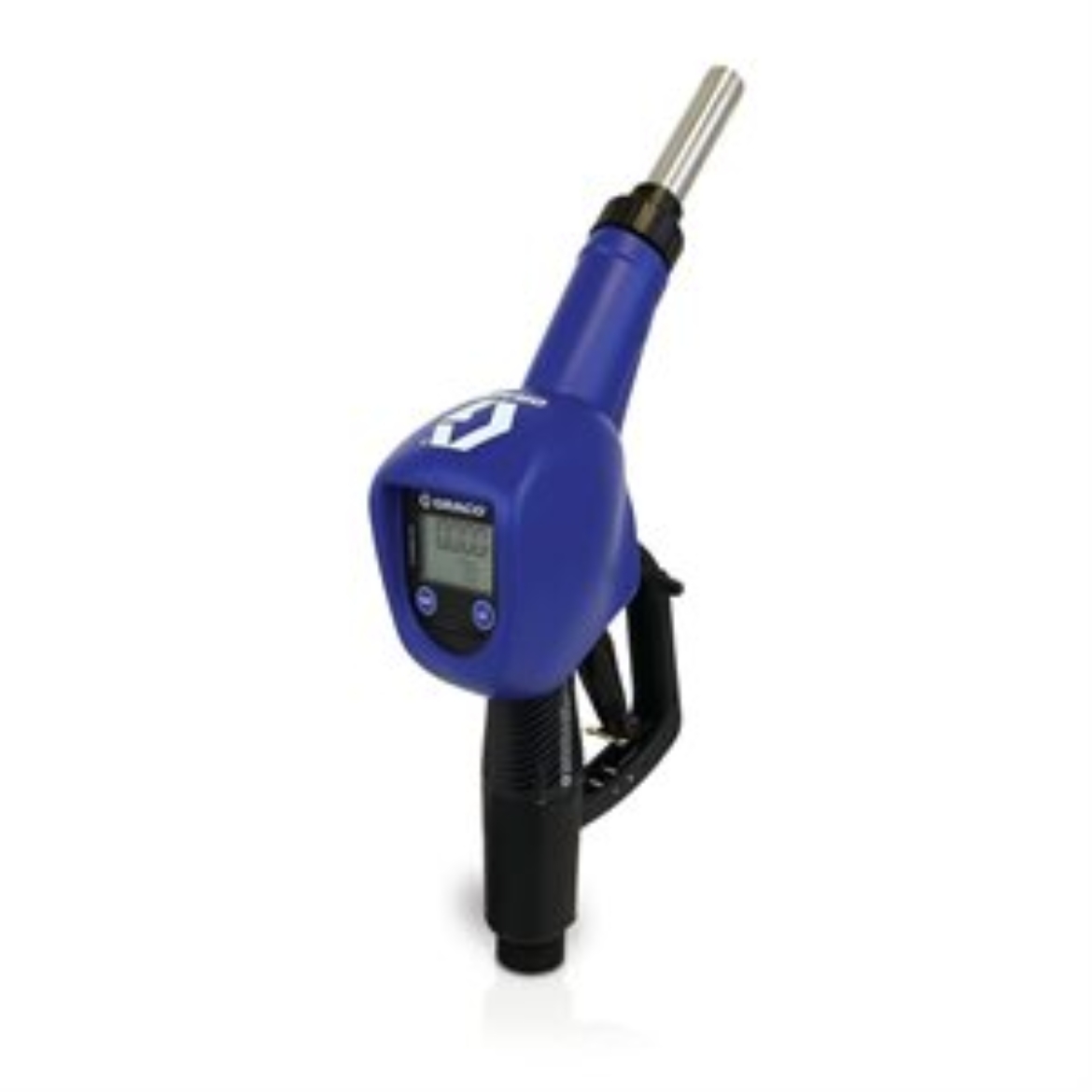

Graco 127650 LD Automatic Nozzle with Built-In Electronic Turbine Meter, with Stainless Steel Breakaway Spout
Gracos LD Series DEF solutions offer long-lasting efficiency in a compact, high-performance electric pump package capable of pumping up to 9 gpm (34 lpm). Whether a small garage, large dealership, or heavy equipment maintenance facility, Graco has a complete line of Diesel Exhaust Fluid (DEF) products for every application. Our electric, pneumatic, or manual products are engineered specifically for the advanced needs of DEF fluid and are designed to minimize downtime and dispense materials quickly without compromising chemical integrity.
Application: Typical applications include automotive and heavy-duty dealerships, service and fast lube centers, fleet service facilities, and in-plant.
- Manual shut-off valve with
- High 12 gpm (45 lpm) flow rate
- 3/4 in BSPP inlet
- Compatible Material: Diesel Exhaust Fluid
- Fluid Inlet Thread Gender: Male
- Fluid Outlet Thread Gender: Male
- Includes: LD Automatic Nozzle with built-in Electronic Turbine Meter, with Stainless Steel Breakaway Tip, Hose Barb
- Inlet Size (cm): 1.905
- Inlet Size (in): 3/4
- Inlet Size (mm): 19.05
- Maximum Operating Temperature ( degree C): 50
- Maximum Operating Temperature ( degree F): 122
- Maximum Storage Temperature ( degree C): 70
- Maximum Storage Temperature ( degree F): 158
- Maximum Working Pressure (bar): 3.5
- Maximum Working Pressure (kPa): 350
- Maximum Working Pressure (MPa): 0.4
- Maximum Working Pressure (psi): 50
- Meter Accuracy (%): 1
- Meter Technology: Turbine
- Metering Gun Weight (kg): 0.08
- Metering Gun Weight (lb): 1.8
- Minimum Operating Temperature ( degree C): -10
- Minimum Operating Temperature ( degree F): 14
- Overall Height (cm): 19.0144
- Overall Height (in): 7.4860
- Overall Height (mm): 190
- Overall Length (cm): 40
- Overall Length (in): 15.6024
- Overall Length (mm): 396
- Overall Width (cm): 8
- Overall Width (in): 3.152
- Overall Width (mm): 80
- Recommended Environment: Indoor
