GG G36C15
MERKUR SYSTEM, PUMP, 36:1, 100CC, CART, STD

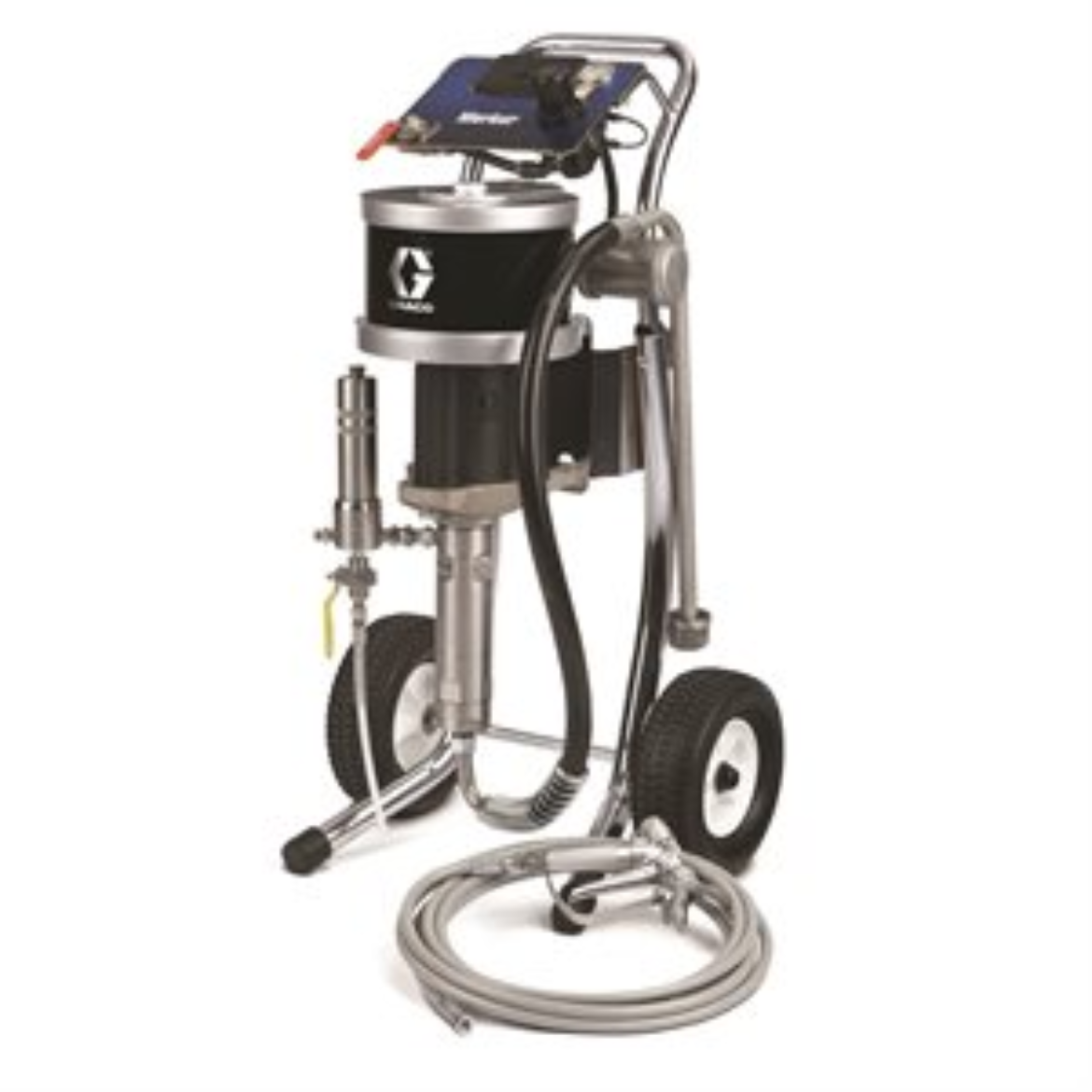

Graco G36C15 Merkur 36:1 Cart-Mount Airless Spray Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Fluid Hose, Fluid Filter, Drain Valve
The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don't require the pressure and flow of a larger sprayer.
- Compact – fits into tight areas
- Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
- Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
- Stainless steel option allows for waterborne coatings
- Model: Merkur
- Series: Standard
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Protective Coating
- Compatible Replacement Pump: W36DAS
- Control Type: Fixed Ratio
- Convertible: Non-Convertible
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 3/8, 1/4
- Fluid Outlet Size (mm): 9.525, 6.35
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Frame Configuration: Cart Mount
- Hose Inlet Diameter (cm): 0.635
- Hose Inlet Diameter (in): 1/4
- Hose Inlet Diameter (mm): 6.35
- Includes: XTR-5 Spray Gun, 512 XHD Tip, Fluid Hose, Fluid Filter
- Inlet Paint Strainer: 8 Mesh, 16 Mesh
- Lower Configuration: Stainless Steel, 3/4 in. Inlet, Fluid Filter, Drain Valve
- Material Application: Paints, Primers
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 1.6
- Maximum Flow Rate (L/min): 6.0
- Maximum Fluid Working Pressure (psi): 3600
- Maximum Sound Pressure Level (dB(A)): 68.9
- Maximum Tip Size (in): 0.029
- Maximum Working Pressure (bar): 248
- Maximum Working Pressure (kPa): 24800
- Maximum Working Pressure (MPa): 24.8
- Maximum Working Pressure (psi): 3600
- Mix Ratio: 36:1
- Motor Type: Pneumatic Motor
- Outlet Paint Filter: 60 Mesh Stainless Steel Screen
- Package Options: XTR-5 Gun, 1/4 in. x 25 ft. (7.6 m) Hose
- Power Source: Air
- Pressure Control Type: Air Regulator
- Pump Pressure Ratio: 36:1
- Pump Rod Type: Carbon Steel
- Pump Sleeve Material: Stainless Steel
- Pump Type: Pneumatic Piston Pump, Displacement Pump
