GG G03C03

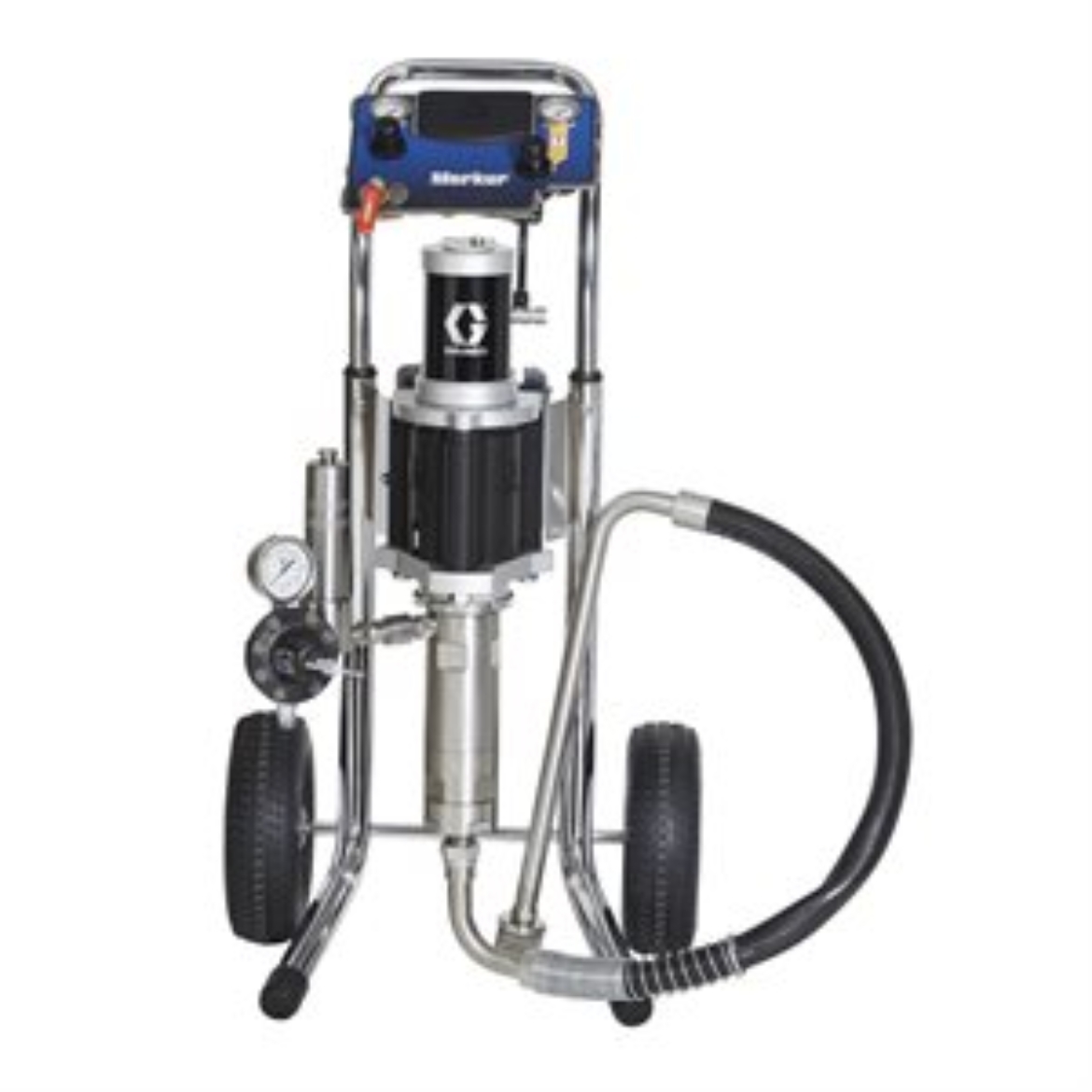

MERKUR SYSTEM, PUMP, 3:1, 125CC, CART, STD
Graco G03C03 3:1 Merkur Air Spray Package, 125cc, Cart, Pump/Gun Air Controls, Siphon Kit, Fluid Filter, No Applicator
Make the right choice for your finishing applications with Merkur Low Pressure Packages. The Merkur low-pressure piston pump comes with advanced air spray technology.
- The pump lower has the best solution for smooth, low pulsation operation.
- The air motor operates efficiently with low air consumption.
- Cart mount configuration makes fine finish spraying easy in different locations.
- Fluid Inlet Size (cm): 2.54
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.27
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Type: NPT
- Gun Included: 0
- Gun Model: No Applicator
- Gun Technology: Bare Package
- Gun Type: No Applicator
- Includes: Pump and Gun Air Controls, Siphon Kit, Fluid Filter
- Maximum Air Pressure (bar): 6.9
- Maximum Air Pressure (kPa): 690
- Maximum Air Pressure (psi): 100
- Maximum Flow Rate (GPM): 2
- Maximum Flow Rate (L/min): 7.5
- Maximum Operating Temperature (°C): 49
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 8.3
- Maximum Working Pressure (MPa): 0.8
- Maximum Working Pressure (psi): 120
- Pressure Type: Low Pressure
- Product Type: Bare Package
- Pump Ratio: 3:1
- Pump Type: Pneumatic Piston Pump
