GG G30C25
MERKUR SYSTEM, PUMP, 30:1, 25CC, CART, STD

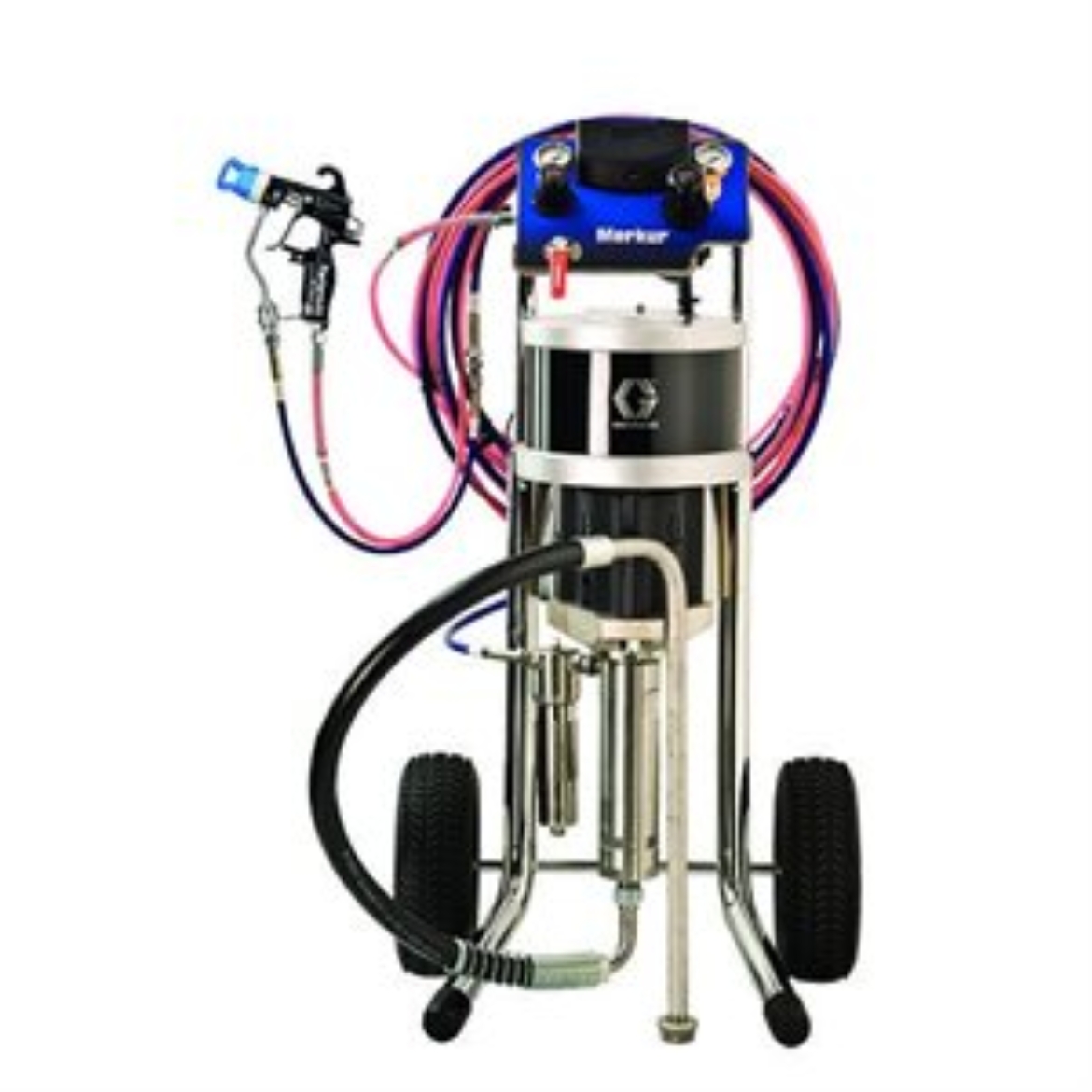

Graco G30C25 30:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Cart Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- Convertible: Non-Convertible
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Size (mm): 12.7
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 0.9525
- Fluid Outlet Size (in): 3/8
- Fluid Outlet Size (mm): 9.525
- Fluid Outlet Thread Type: NPT
- Gun Included: 1
- Gun Model: PerformAA 50 Air Assist
- Gun Technology: Air-Assisted
- Gun Type: Air-Assisted
- Hose Inlet Diameter (cm): 0.5
- Hose Inlet Diameter (in): 0.1968
- Hose Inlet Diameter (mm): 5
- Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter
- Maximum Flow Rate (GPM): 0.4
- Maximum Flow Rate (L/min): 1.51
- Maximum Hose Length (cm): 762
- Maximum Hose Length (ft): 25
- Maximum Hose Length (m): 7.6
- Maximum Hose Length (mm): 7620
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kg/cm²): 210.92
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 20.7
- Maximum Working Pressure (psi): 3000
- Pressure Type: High Pressure
- Product Type: Spray Package
- Pump Ratio: 30:1
- Pump Type: Pneumatic Piston Pump
