Merkur System Pump 45:1 50Cc Wa Std

GG G45W01

MERKUR SYSTEM PUMP 45:1 50CC WA STD

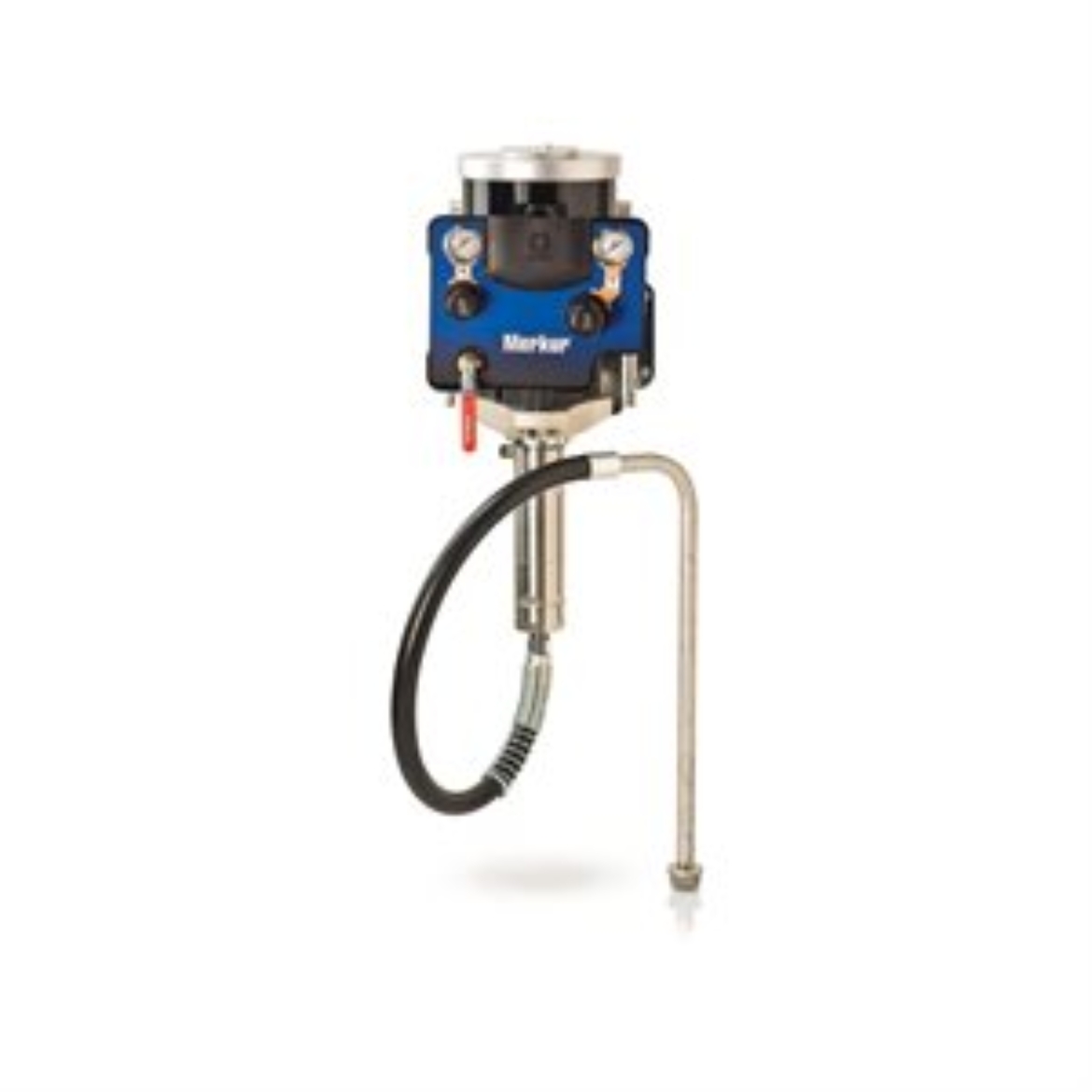

Graco G45W01 45:1 Merkur Pump, 0.8 gpm (3 lpm) fluid flow, Wall Mount

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.5
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 5

• Maximum Flow Rate (GPM): 0.8
• Maximum Flow Rate (L/min): 3.0

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 310
• Maximum Working Pressure (kPa): 31000
• Maximum Working Pressure (MPa): 31
• Maximum Working Pressure (psi): 4500

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 0

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 45:1
• Pump Type: Pneumatic Piston Pump
