Merkur System Pump 36:01 100Cc Ct Std

GG G36C01

MERKUR SYSTEM PUMP 36:01 100CC CT STD

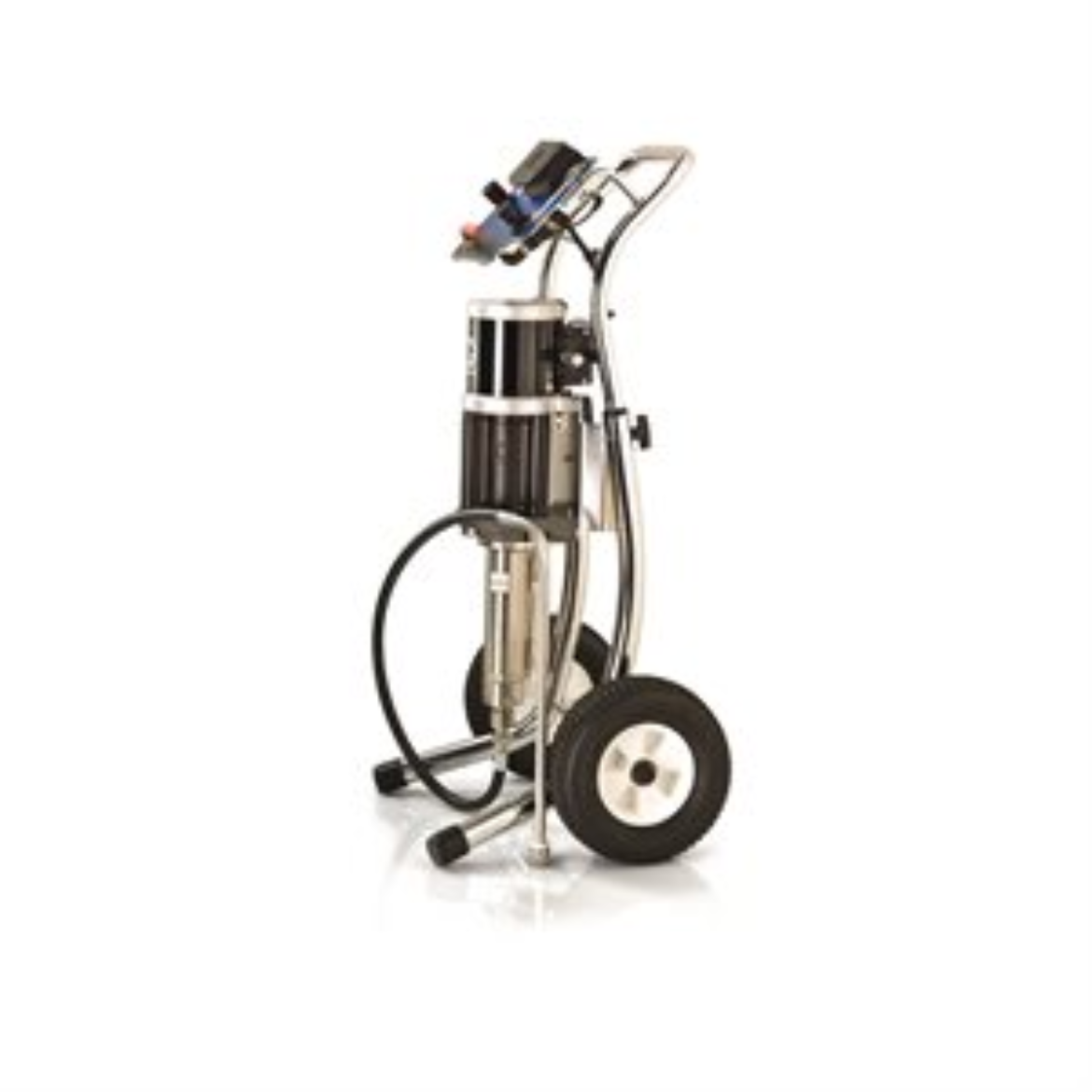

Graco G36C01 36:1 Merkur Pump, 1.6 gpm (6 lpm) fluid flow, Cart Mount, Pump Air Controls

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.47625
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.7625

• Includes: Pump Only Air Controls, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.0

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 248
• Maximum Working Pressure (kg/cm²): 253.1
• Maximum Working Pressure (kPa): 24800
• Maximum Working Pressure (MPa): 24.8
• Maximum Working Pressure (psi): 3600

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 0

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 36:1
• Pump Type: Pneumatic Piston Pump
