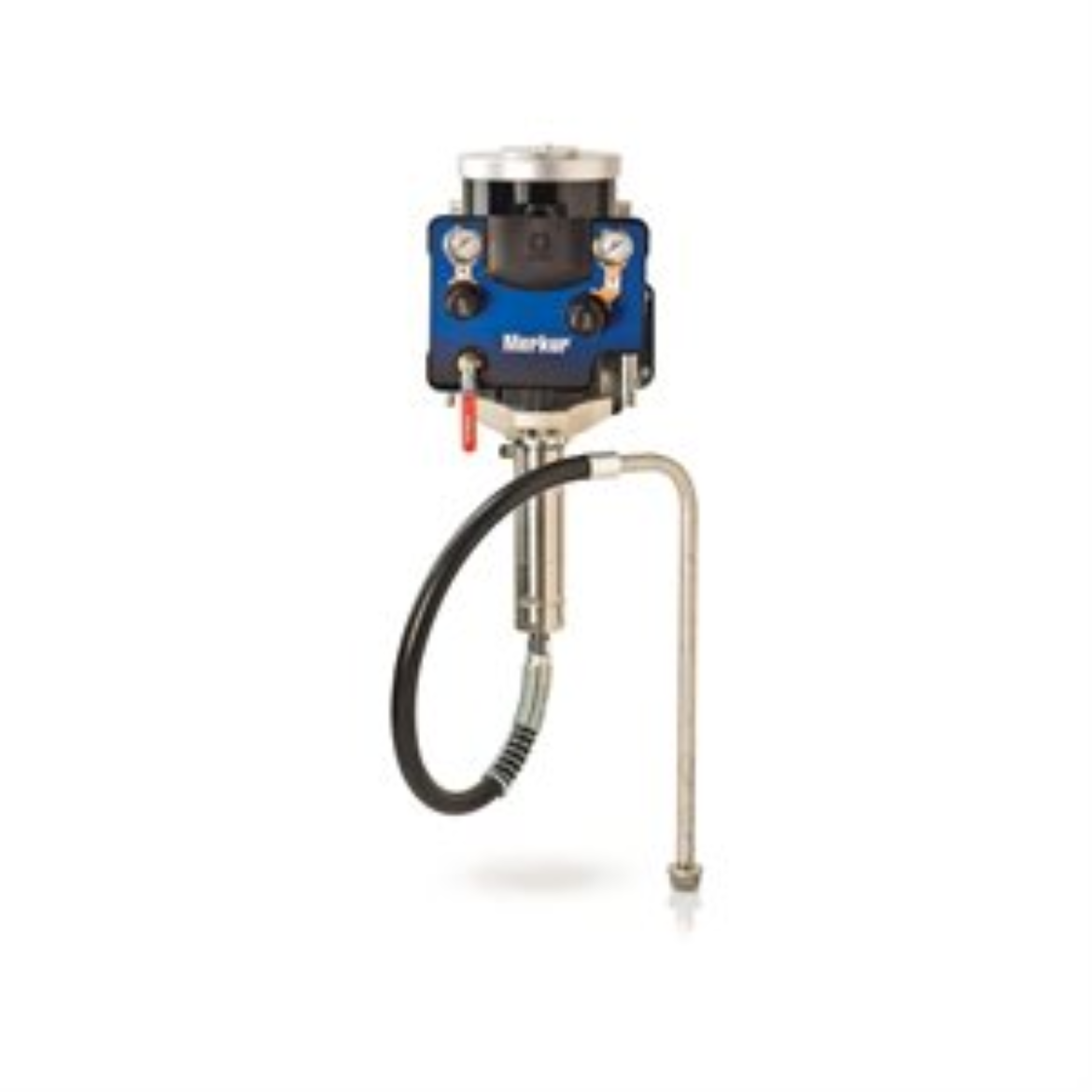

Merkur System Pump 30:1 75Cc Wall Std

GG G30W73

MERKUR SYSTEM PUMP 30:1 75CC WALL STD

Graco G30W73 30:1 Merkur AA Package, 1.2 gpm (4.5 lpm) fluid flow, Wall Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 50 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.5
• Hose Inlet Diameter (in): 0.1968
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.54

• Maximum Hose Length (cm): 762
• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6
• Maximum Hose Length (mm): 7620

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm²): 210.92
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump
